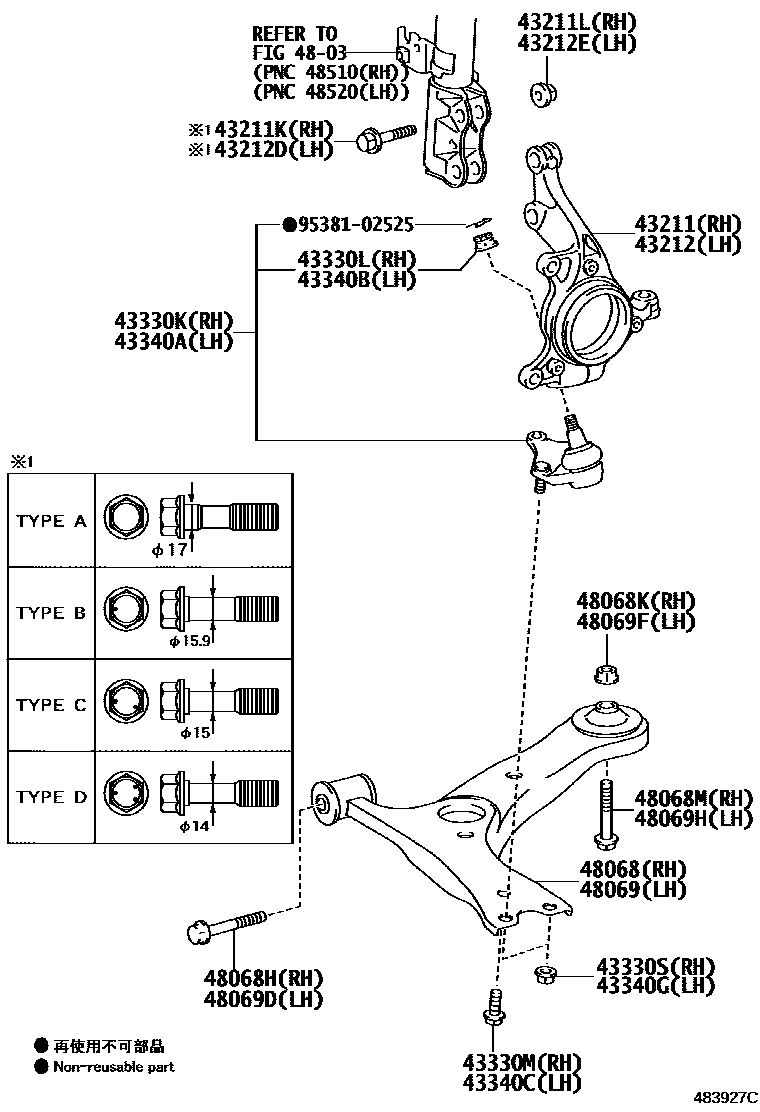

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-02240iZRE171..16J..CNG201312-201601

main43211-02261iNZE170..XLI201407-201911

main43211-02270iZRE172,173..VN201312-202201

main43211-02280iZRE172..TAIW201310-201903

main43211-02291iNZE170..GLI;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201407-202208

main43211-02300iNDE170,ZRE172..IND201405-201906

main43211-02330iZRE171,173..CVT..GCC201310-201903

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17008iZRE171..4FC..N201310-202208

OD=17,TYPE A:REFER ILLUST.

main90105-17009iZRE171,173..CVT..GCC201310-202208

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iZRE172..CVT..VN201310-202208

OD=15,TYPE C:REFER ILLUST.

main90105-17011iZRE172..6F..PKN201310-202208

OD=14,TYPE D:REFER ILLUST.

main90105-17012iNDE170,ZRE172..IND201605-201906

OD=17,TYPE A:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iZRE173..6F;ZRE171..6F..GLI201310-202208

43212KNUCKLE, STEERING, LH

main43212-02240iZRE171..16J..HTWC201312-201601

main43212-02261iNZE170..XLI201407-201911

main43212-02270iZRE172,173..VN201312-202201

main43212-02280iZRE172..TAIW201310-201903

main43212-02291iZRE172..6F..PKN201407-202208

main43212-02300iNDE170,ZRE172..IND201405-201906

main43212-02330iZRE171,173..4FC..GCC201310-201903

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17008iZRE172..6F..PKN201310-202208

OD=17,TYPE A:REFER ILLUST.

main90105-17009iZRE171,173..CVT..GCC201310-202208

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iZRE172,173..VN201310-202208

OD=15,TYPE C:REFER ILLUST.

main90105-17011iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-202208

OD=14,TYPE D:REFER ILLUST.

main90105-17012iNDE170,ZRE172..IND201605-201906

OD=17,TYPE A:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iZRE173..6F;ZRE171..6F..GLI201310-202208

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09680iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-202003

sub43330-09681

main43330-09681iZRE171..4FC202003-202208

main43330-09690iNDE170,ZRE172..IND201405-201906

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iZRE171..6F..XLI..GCC;NZE170,ZRE171,172..PKN,TAIW201310-201906

main90171-14003iZRE17#..GCC,TAIW201603-202208

(J)

main90171-T0007iNZE170,ZRE173;ZRE171..CVT,MTM;ZRE172..18E..VN;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN);ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH)201603-202208

(L)

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12336iZZE172201310-202208

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12015iZRE171..CVT,MTM;ZRE172..18E..VN;ZRE171..4FC..GEN;NDE170,NZE170,ZRE173;ZRE172..6F..(ARL,IDN,IND);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW,TH)201310-202208

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09680iZZE172201310-202003

sub43330-09681

main43330-09681iZRE172..18E;ZRE172..CVT..N;ZRE171,173..CVT,MTM202003-202208

main43330-09690iNDE170,ZRE172..IND201405-201906

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iZRE171,173..CVT..GCC201310-201906

main90171-14003iZRE17#..GCC,TAIW201603-202208

(J)

main90171-T0007iNZE170,ZRE171,172..PKN201603-202208

(L)

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12336iZRE171,173..CVT..GCC201310-202208

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12015iZZE172201310-202208

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-02220iZRE172..TAIW201512-201903

main48068-02250iZRE171,173..GCC201512-201803

sub48068-02220

main48068-02260iZRE172..18E..VN;ZRE172..RHD..CVT;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN,IND);NDE170,NZE170,ZRE173..IND,MA,PHL,PKN,VN;ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH)201312-202208

main48068-02270iZRE172..TAIW201310-201512

main48068-02280iZZE172201310-201512

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-202208

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-T0048iNDE170,ZRE172..IND201312-201907

main90179-14068iZRE172..6F..PKN201310-202208

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14086iZZE172201310-202208

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-02220iZRE172..TAIW201512-201903

main48069-02250iZRE171,173..GCC201512-201803

sub48069-02220

main48069-02260iZRE172..18E..VN;ZRE172..RHD..CVT;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN,IND);NDE170,NZE170,ZRE173..IND,MA,PHL,PKN,VN;ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH)201312-202208

main48069-02270iZRE172..TAIW201310-201512

main48069-02280iZZE172201310-201512

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-202208

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-T0048iNDE170,ZRE172..IND201312-201907

main90179-14068iZRE172..CVT..(PKN,TAIW);ZRE171..(CVT,MTM)..(GCC,PKN);NZE170,ZRE172,173..(18E,20V,GLI,XLI)..(GCC,PKN,VN)201310-202208

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14086iZZE172201310-202208

9538102525

main95381-02525

24 parts on this diagram · 1 diagram in section
