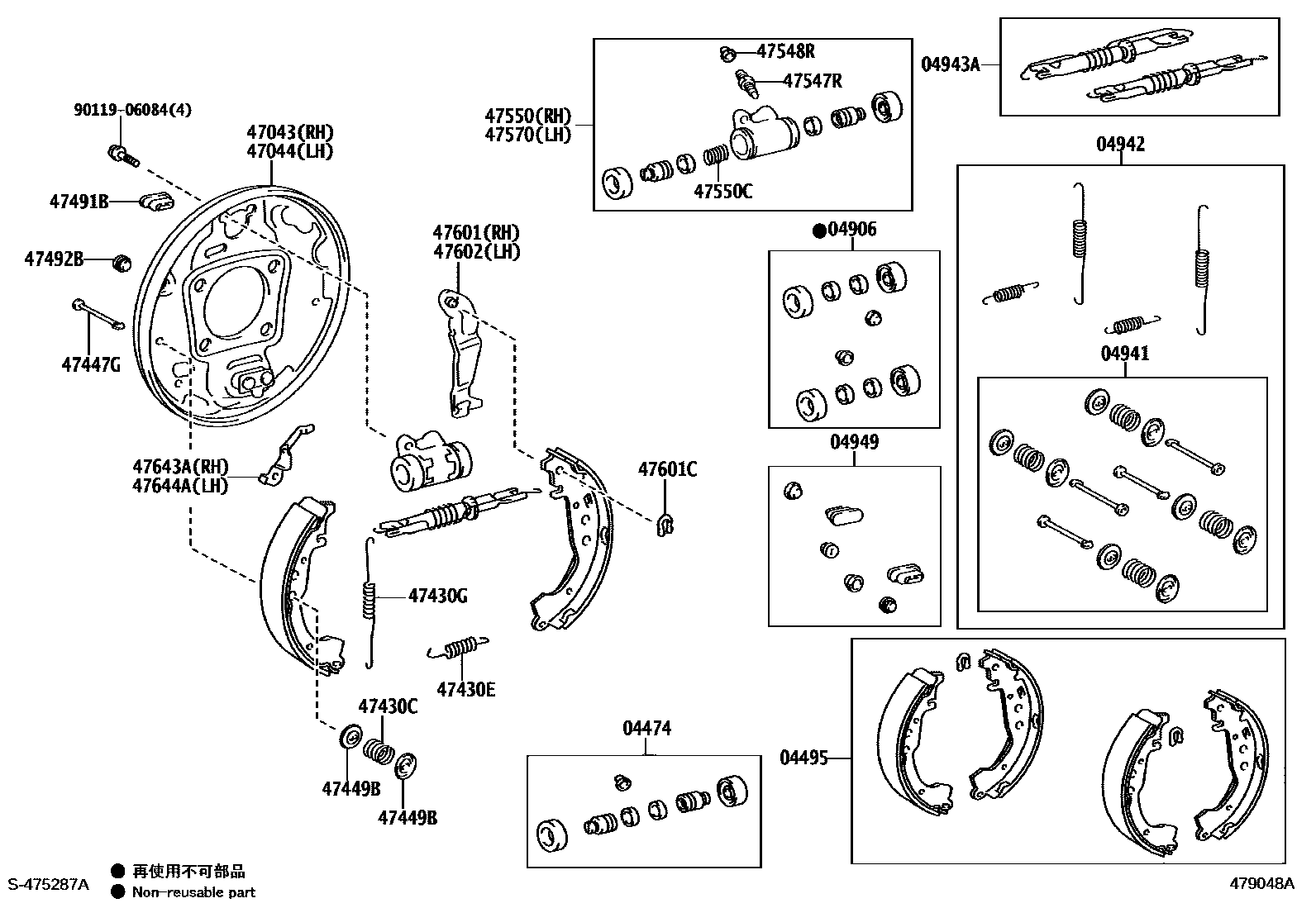

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-12050×2iZZE172..XLI201310-201409

04495SHOE KIT, REAR BRAKE

main04495-52120iZRE171,173..XLI..GCC; ZRE171..XLI..GCC; ZZE172..XLI;ZRE171,172..(16E,16G,18G)..(IDN,PHL)201310-201404

MARK NBK LN521; MARK NBK LN521,LOW FLEET PACKAGE; MARK NBK LN521,LOW GRADE PACKAGE

main04495-52121iZZE172..XLI201404-201409

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-33030iZZE172..XLI201310-201409

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iZZE172..XLI201310-201409

04942SPRING KIT, REAR BRAKE

main04942-13030iZZE172..XLI201310-201409

04943ASTRUT KIT, REAR BRAKE

main04943-12040iZZE172..XLI201310-201409

04949PLUG KIT, REAR BRAKE

main04949-13010iZZE172..XLI201310-201409

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12490iZZE172..XLI201310-201409

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12490iZZE172..XLI201310-201409

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20756×4iZZE172..XLI201310-201409

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18076×2iZZE172..XLI201310-201409

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-18087×2iZZE172..XLI201310-201409

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iZZE172..XLI201310-201409

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iZZE172..XLI201310-201409

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iZZE172..XLI201310-201409

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×2iZZE172..XLI201310-201409

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27030×2iZZE172..XLI201310-201409

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iZZE172..XLI201310-201409

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-12120iZZE172..XLI201310-201409

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09079×2iZZE172..XLI201310-201409

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-12120iZZE172..XLI201310-201409

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-12480iZRE171,173..XLI..GCC; ZRE171..XLI..GCC; ZZE172..XLI;ZRE171,172..(16E,16G,18G)..(IDN,PHL)201310-201404

LOW FLEET PACKAGE; LOW GRADE PACKAGE

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×2iZRE171,173..XLI..GCC; ZRE171..XLI..GCC; ZZE172..XLI;ZRE171,172..(16E,16G,18G)..(IDN,PHL)201310-201404

T=1.2; T=1.2,LOW FLEET PACKAGE; T=1.2,LOW GRADE PACKAGE

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-12480iZRE171,173..XLI..GCC; ZRE171..XLI..GCC; ZZE172..XLI;ZRE171,172..(16E,16G,18G)..(IDN,PHL)201310-201404

LOW FLEET PACKAGE; LOW GRADE PACKAGE

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-52120iZZE172..XLI201310-201409

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-52120iZZE172..XLI201310-201409

9011906084

main90119-06084
