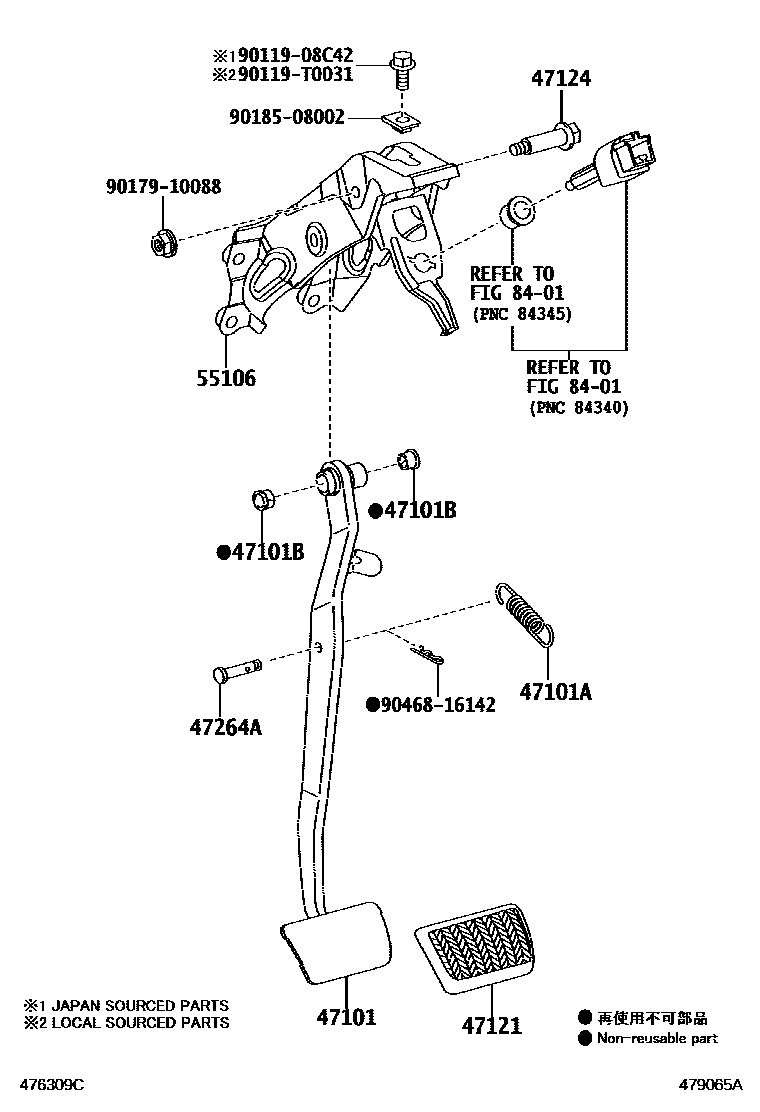

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-02530iZRE171..16G..TH201312-201907

main47101-02540iZRE171..16J..HTWC201312-201907

main47101-02550iZRE172,173..CVT..VN201312-202201

main47101-02560iZRE171,172..6F..(16E,16G,18E,XLI)..(GEN,PHL,VN)201312-202007

main47101-02570iZZE172..4FC201310-201903

main47101-02580iZRE171..6F..XLI..GCC201310-201903

main47101-02590iZRE171..4FC..N201407-202208

main47101-02600iNZE170,ZRE171..MTM..PKN201407-202109

main47101-02620iNDE170,ZRE172..6F..IND201405-201906

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14058iNDE170,ZRE172..IND201310-202208

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZZE172201310-202208

47121PAD, BRAKE PEDAL

main31321-02020iNDE170,ZRE172..6F..IND201709-201906

main31321-02030iZRE172..6F..PKN201407-202109

main31321-02060iZZE172..5F201310-201903

main31321-02090iZRE172..18E..VN;ZRE171,172..6F..(ARL,GEN,IDN,PHL,TH)201312-202007

main31321-42010iNDE170,ZRE172..6F..IND201405-201708

main47121-02040iNZE170,ZRE171,172..(ATM,CVT)..PKN201407-202208

main47121-02060iZRE172..TAIW201310-201903

main47121-02090iZRE172..CVT..IND201312-202201

47124SHAFT, BRAKE PEDAL

main90109-10174iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-202208

47264APIN(FOR PUSH ROD)

main47148-33011iZRE171..CVT,MTM;ZRE172..18E..VN;ZRE171..4FC..GEN;NDE170,NZE170,ZRE173;ZRE172..6F..(ARL,IDN,IND);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW,TH)201310-202208

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02180iNZE170;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201407-202208

main55106-02200iZRE171,173..CVT..GCC201310-201903

main55106-02280iNDE170,ZRE172..6F..IND201405-201906

main55106-02290iZRE172..CVT..IND201312-201907

main55106-02300iZRE172,173..VN201312-202201

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

90119T0031

main90119-T0031

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

13 parts on this diagram · 1 diagram in section
