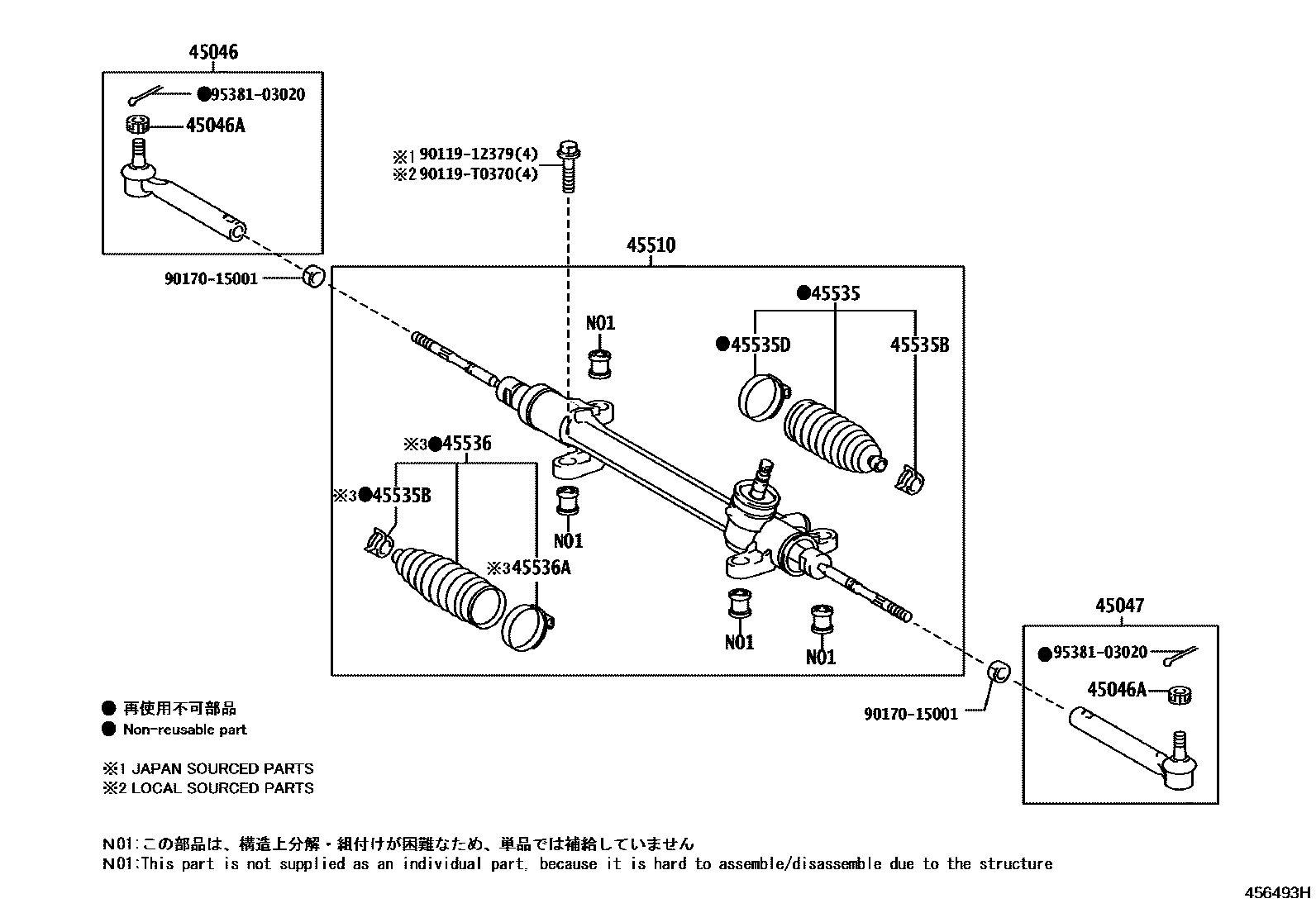

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09610iZRE172,173..VN201312-201709

main45046-09620iNDE170,ZRE172..IND201703-201906

main45046-19435iZZE172201310-201409

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iZRE173..6F;ZRE171..6F..GLI201310-201511

main90171-T0004×2iNDE170,ZRE172..IND201603-201702

45047END SUB-ASSY, TIE ROD, LH

main45046-09610iZRE172,173..VN201312-201709

main45046-09620iNDE170,ZRE172..IND201405-201702

main45046-19435iZZE172201310-201409

45510GEAR ASSY, STEERING

main45510-02600iZRE172..6F..PKN201611-202109

main45510-02610iNDE170,ZRE172..IND201405-201702

main45510-02620iZRE172..CVT..VN;ZRE17#..LHD..(16E,16G,16V,18E,20V,XLI)..(GEN,PHL,VN)201611-202201

main45510-02630iZRE171,173..CVT..GCC201512-201609

45535BOOT, STEERING RACK, NO.1

main45535-09090iNDE170,ZRE172..IND201405-201702

main45535-09110iZRE171..HTWC..TH201312-201601

main45535-29015iZRE171,173..4FC..GCC201310-201512

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46334×2iNDE170,ZRE172..IND201703-201906

main90467-19021×2iZRE173..6F;ZRE171..6F..GLI201310-201511

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-02020iNZE170,ZRE171,172..PKN201312-201707

main45538-02060iNDE170,ZRE172..IND201703-201906

main45538-52010iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

45536BOOT, STEERING RACK, NO.2

main45535-09090iNDE170,ZRE172..IND201703-201906

main45535-09110iZRE171..HTWC..TH201312-201601

main45535-29015iZRE171,173..4FC..GCC201310-201512

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-02020iZRE172..6F..PKN201611-202109

main45538-02060iNDE170,ZRE172..IND201703-201906

main45538-52010iZZE172201310-201409

9011912379

main90119-12379

90119T0370

main90119-T0370

9017015001

main90170-15001

9538103020

main95381-03020

13 parts on this diagram · 2 diagrams in section
