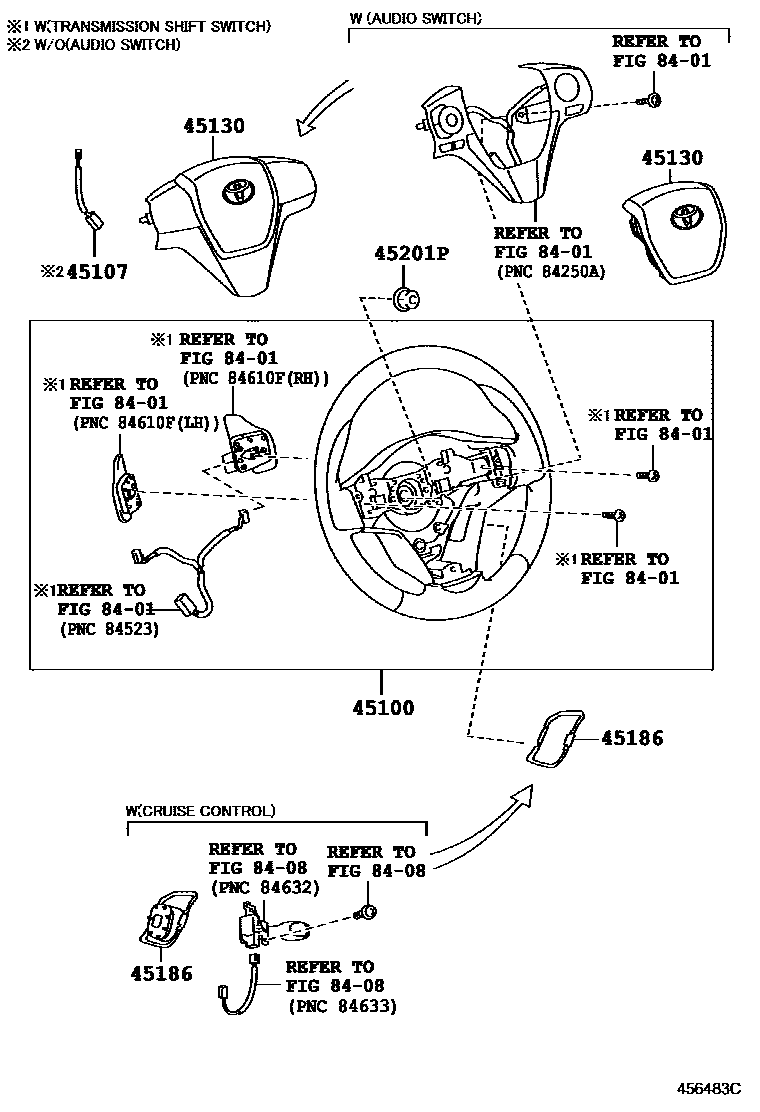

STEERING WHEEL
45100WHEEL ASSY, STEERING
main45100-02W30-C0iZRE171,172..RHD..(16E,18G); ZRE171..16J; ZRE171..RHD..(GXLI,XLI);ZRE171..6F..(16E,XLI)..(GEN,PHL); ZRE172..18E..TH; ZRE172..ARL..D201611-201907
3-SPOKE,URETHANE,BLACK,TRIM0#; 3-SPOKE,URETHANE,BLACK,TRIM0#,1#; 3-SPOKE,URETHANE,BLACK,TRIM0#,2#; 3-SPOKE,URETHANE,BLACK,TRIM1#; 3-SPOKE,URETHANE,BLACK,TRIM2#
main45100-02W40-C0iZRE171..(GLI,GXLI)..GEN; ZRE171..6F..16G;ZRE171..CVT..(PHL,SGP); ZRE172..ARL..N;ZRE172,173..(18E,20G)..MA201312-201610
3-SPOKE,LEATHER,BLACK,TRIM0#,1#; 3-SPOKE,LEATHER,BLACK,TRIM0#,2#; 3-SPOKE,LEATHER,BLACK,TRIM2#
main45100-02W50-C0iZRE172..18E..TH; ZRE172..18V..IDN; ZRE172..ARL..E;ZRE172,173..(18V,20V)..(MA,TH); ZRE173..PHL201312-201610
3-SPOKE,LEATHER,BLACK,TRIM0#; 3-SPOKE,LEATHER,BLACK,TRIM0#,2#; 3-SPOKE,LEATHER,BLACK,TRIM2#; 3-SPOKE,LEATHER,SPORTY PACKAGE,BLACK,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM0#
main45100-02X20-C0supersedes 45100-02X30-C0iZRE171,173..XLI..GCC; ZRE172..TAIW..D; ZRE172..TAIW..E201610-201903
3-SPOKE,URETHANE,BLACK,TRIM0#,1#; 3-SPOKE,URETHANE,BLACK,TRIM0#,2#; 3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK,TRIM0#,1#
3-SPOKE,URETHANE,BLACK,TRIM0#; 3-SPOKE,URETHANE,NEW J PACKAGE,BLACK,TRIM0#
3-SPOKE,LEATHER,BLACK,TRIM0#
3-SPOKE,LEATHER,BLACK,TRIM0#
3-SPOKE,LEATHER,SPORTY PACKAGE,BLACK,TRIM0#,2#
3-SPOKE,LEATHER,X PACKAGE(REAR EMBLEM "X"),BLACK,TRIM0#,2#
3-SPOKE,LEATHER,X PACKAGE(REAR EMBLEM "X"),BLACK,TRIM2#
45107WIRE SUB-ASSY, HORN BUTTON
45130BUTTON ASSY, HORN
BLACK,TRIM0#
BLACK,TRIM0#,1#; BLACK,TRIM0#,1#,2#; BLACK,TRIM2#
BLACK,TRIM0#
BLACK,TRIM0#; HE PACKAGE,BLACK,TRIM0#; NEW J PACKAGE,BLACK,TRIM0#
BLACK,TRIM0#
BLACK,TRIM0#,1#; BLACK,TRIM1#
main45130-02710-C0iZRE171..6F..16G;ZRE172..18E..TH;ZRE171..CVT..(PHL,SGP); ZRE171..GEN; ZRE172,173..ARL,MA,PHL;ZRE172..(18GS,18V)..TH; ZRE172..IDN;ZRE171..CVT..(CNG,HTWCF)201312-201610
BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM0#,2#; BLACK,TRIM2#
BLACK,TRIM0#; HE PACKAGE,BLACK,TRIM0#; NEW J PACKAGE,BLACK,TRIM0#
BLACK,TRIM0#
LOW FLEET PACKAGE,BLACK,TRIM1#,2#
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-02250-C0iZRE171..16E..PHL; ZRE171..6F..16G;ZRE172..18E..TH;ZRE171,173..CVT..(PHL,SGP); ZRE171..GEN; ZRE172,173..(18E,20G)..MA; ZRE172..IDN;ZRE171..CVT..(CNG,HTWCF)201312-201610
BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,1#; LOW GRADE PACKAGE,BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#
BLACK,TRIM0#
45201PNUT, STEERING WHEEL SET
8401SWITCH & RELAY & COMPUTER
8408CRUISE CONTROL (AUTO DRIVE)
7 parts on this diagram · 1 diagram in section
