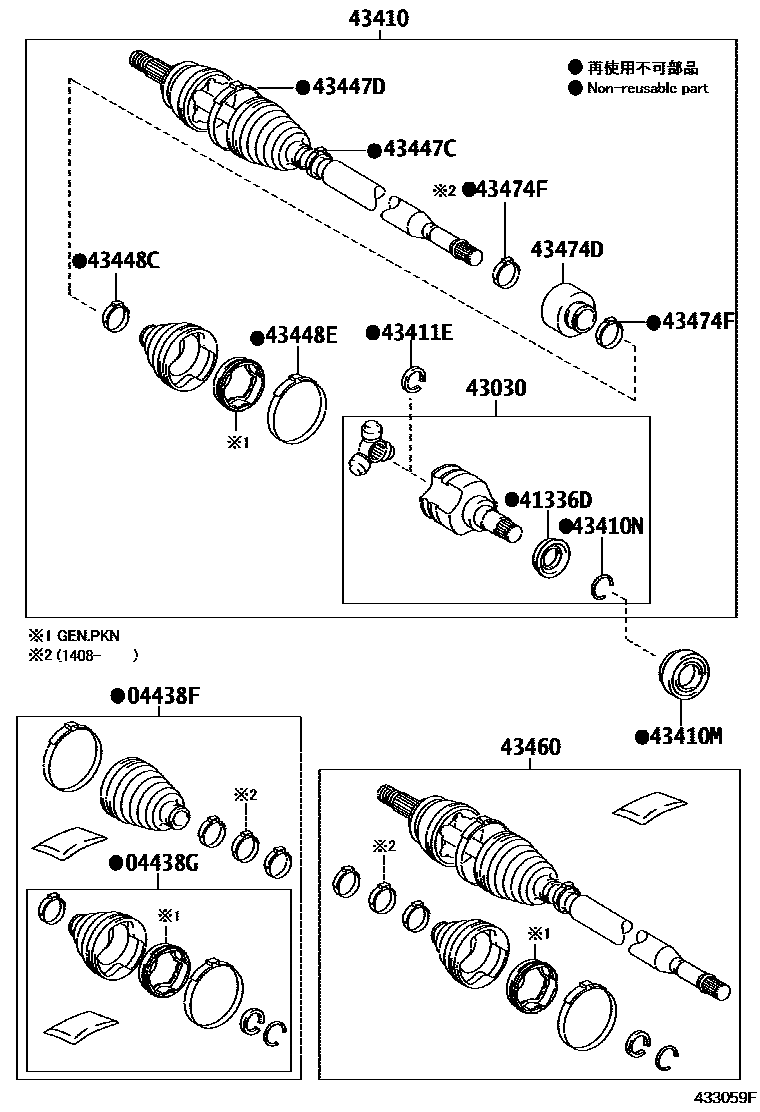

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1RH 0005 1RH(IRAN & IRAQ & YEMEN SPEC) 0006 1RH 0008 1RH 0009 1LH 0010 1LH 0011 1LH(IRAN & IRAQ & YEMEN SPEC) 0012 1LH 0014 1LH 0015 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-02510iZRE171,172..(CVT,MTM)..(ARL,GEN,IDN,MA,PHL,SGP,TH)201312-201408

main04427-02511iZRE172..VN201408-201907

main04427-02570iNDE170201405-201906

main04427-02610iZRE172..TAIW201310-201903

YEMEN SPEC

main04427-02610iZZE172201310-201409

main04427-02630iZRE173..GCC201310-201903

main04427-02640iZRE172..IND201405-201906

main04427-12631iZRE171..N201407-201408

main04427-12632iZRE171..N201408-201509

MYANMAR SPEC

main04427-12632iZRE171..N201408-201509

NEPAL SPEC

main04427-12633iZRE171..N201509-202208

main04427-12681iNZE170201310-201411

main04427-12682iNZE170201411-201911

main04427-12700iZRE171..4FC..GEN201312-201408

main04427-12701iZRE171..4FC..GEN201408-201907

main04427-12771iZRE171..6F..XLI..GEN201411-201509

NEPAL SPEC

main04427-12771iZRE172..PKN201411-201509

MYANMAR SPEC

main04427-12772iZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201509-202109

main04427-28192iZRE173..20V201708-202007

main04427-44061iZRE173..MA,PHL201411-201708

main04428-12740iZRE172..PKN201407-201411

main04428-58030iZRE173..MA,PHL201310-201411

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02350iZRE171..16J..HTWCF;ZRE172..ARL,IDN,MA,TH;ZRE171..CVT..(CNG,HTWCF);ZRE171..(CVT,MTM)..(GEN,PHL,SGP)201312-201907

main04437-02410iNDE170201405-201906

main04437-02460iZRE172..TAIW201310-201903

YEMEN SPEC

main04437-02460iZZE172201310-201409

main04437-02480iZRE172..IND201405-201906

main04437-06220iZRE173..GCC201310-201903

main04437-12371iZRE171..N201407-201509

main04437-12372iZRE171..4FC..N201509-202208

main04437-12380iZRE171..4FC..GEN201312-201907

main04437-12400iNZE170201310-201911

main04437-33090iZRE173..20V201708-202007

main04438-12A00iZRE172..PKN201407-201509

main04438-12A01iZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201509-202109

main04438-42180iZRE173..VN201310-201708

main04438-42201iZRE171..CVT..GCC201310-202201

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-02200iNDE170201405-201906

main41336-02230iZZE172201310-201409

main41336-02230iZRE172..TAIW201310-201903

YEMEN SPEC

main41336-06230iZRE173..4FC201310-201903

main41336-0D070iZRE171..4FC..GEN201312-201907

main41336-0D090iZRE172..IND201405-201906

main41336-12010iNZE170,ZRE171..(4FC,5F)..PKN201310-202208

main41336-12020iZRE173..VN201310-202007

main41336-12060iZRE171..CVT..GCC201310-202201

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-02090iNDE170201405-201906

main43030-02110iZRE173..GCC201310-201903

main43030-28070iZRE173..20V201708-202007

main43030-44021iZRE173..MA,PHL201310-201708

main43040-02020iZRE172..CVT..VN;ZRE172..18E..VN;ZRE171,172..(CVT,MTM)..(ARL,GEN,IDN,MA,PHL,SGP,TH)201312-201907

main43040-02280iZRE172..TAIW201310-201903

YEMEN SPEC

main43040-02280iZZE172201310-201409

main43040-02300iZRE172..IND201405-201906

main43040-12120iZRE172..PKN201407-202109

main43040-12150iZRE171..N201407-202208

main43040-32040iZRE171..6F..XLI..GCC201310-202201

main43403-02040iZRE171..4FC..GEN201312-201907

main43403-12040iNZE170201310-201911

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02660iZRE171..16G..TH201312-201907

main43410-02670iZRE171..16J..HTWC201312-201601

main43410-02700iZRE171..4FC..GEN201312-201907

main43410-02800iNDE170201405-201906

main43410-02A60iZRE171..GCC201310-201903

YEMEN SPEC

main43410-02A60iZZE172201310-201409

main43410-02A80iZRE173..4FC201310-201903

main43410-02A90iZRE172..IND201405-201906

main43410-12A30iZRE172..PKN201407-202109

main43410-12A40iZRE171..N201407-202208

main43410-12A80iNZE170201310-201911

main43410-12B00iZRE171..6F..XLI..GCC201310-202201

main43410-44041iZRE173..MA,PHL201310-201707

main43410-44042iZRE173..20V201708-202007

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34023iNZE170..4FC201407-201911

main90311-34039iNZE170..5F201707-201904

PNC 30300=TYPE B

main90311-34039iNZE170..5F201707-201911

PNC 30300=TYPE A

main90311-34039iNZE170..5F201407-201707

main90311-34045iZRE171..4FC..GCC201310-202208

main90311-34053iNZE170..5F201904-201911

PNC 30300=TYPE B

main90311-35055iZRE171,172..CVT201310-201504

main90311-35065iZRE171..6F..XLI..GCC201310-202109

main90311-35069iZRE171..CVT..(PHL,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH)201505-201808

main90311-35076iZRE171,172..CVT..(ARL,GCC,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH)201808-202201

main90311-40031iZRE173..4FC201310-201512

main90311-40036iZRE173..6F201310-201511

main90311-40041iZRE173..MA,PHL201312-202007

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-02400iNDE170201405-201906

main43425-02470iZZE172201310-201409

main43425-02470iZRE172..TAIW201310-201903

YEMEN SPEC

main43425-06140iZRE173..GCC201310-201903

main43425-0D250iZRE172..IND201405-201906

main90520-38015iZRE173..VN201310-202007

main90521-26004iZRE171..4FC..GCC201310-202208

main90521-27005iZRE171..6F..GLI201310-202109

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-02410iNDE170201405-201906

main43425-02430iZRE172..IND201405-201906

main43425-06300iZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC201310-201512

IRAQ SPEC

main43425-06300iZZE172201310-201409

main43425-06300iZRE173..4FC201310-201903

YEMEN SPEC

main43425-06300iZRE173..4FC201310-201512

IRAN SPEC

main43425-12070iZRE171,172..PKN201407-202208

main43425-28010iZRE173..MA,PHL201310-202007

main90520-22005iZRE171..CVT..GCC201310-202201

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02740iNDE170201405-201906

main42345-02890iZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC201310-201512

IRAQ SPEC

main42345-02890iZRE173..GCC201310-201903

YEMEN SPEC

main42345-02890iZZE172201310-201409

main42345-02890iZRE173..4FC201310-201512

IRAN SPEC

main42345-02A40iZRE172..IND201405-201906

main42345-12190iZRE171..16J..CNG;ZRE171..4FC..GCC201310-201609

IRAN SPEC

main42345-12190iZRE171..6F..GLI201310-201609

YEMEN SPEC

main42345-12190iZRE171..4FC..GCC201310-201609

IRAQ SPEC

main42345-12190iZRE171..HTWC..TH201310-202201

main42345-12230iZRE171,172..PKN201407-202208

main42345-20040iZRE173..6F201310-201511

main42345-42100iZRE173..20G,20V201312-202007

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02750iNDE170201405-201906

main42345-02A00iZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC201310-201512

IRAQ SPEC

main42345-02A00iZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC201310-201512

IRAN SPEC

main42345-02A00iZRE171..6F..XLI..GCC201310-201903

YEMEN SPEC

main42345-02A00iZZE172201310-201409

main42345-02A30iZRE172..IND201405-201906

main42345-12180iZRE171..CVT..GCC201310-201609

IRAN SPEC

main42345-12180iZRE171..CVT..GCC201310-201609

YEMEN SPEC

main42345-12180iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE172..ARL,IDN,MA,TH;ZRE171..CVT..(CNG,HTWCF)201310-202201

main42345-12180iZRE171..4FC..GCC201310-201609

IRAQ SPEC

main42345-12240iZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201407-202208

main42345-28020iZRE173..6F201310-201511

main42345-42090iZRE173..20G,20V201312-202007

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02730iNDE170201405-201906

main42345-02800iZRE172..IND201405-201906

main42345-06710iZRE171..4FC..GCC201310-201512

IRAN SPEC

main42345-06710iZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC201310-201512

IRAQ SPEC

main42345-06710iZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC201310-201903

YEMEN SPEC

main42345-06710iZZE172201310-201409

main42345-12230iZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201407-202208

main42345-33120iZRE173..20V201708-202007

main42345-42010iZRE173..MA,PHL201310-201708

TYPE A:REFER ILLUST.

main90949-01078iNZE170201310-202201

main90949-01559iZRE173..VN201310-201708

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02720iNDE170201405-201906

main42345-02790iZRE172..IND201405-201906

main42345-06590iZRE171..4FC..GCC201310-201903

YEMEN SPEC

main42345-06590iZRE171..4FC..GCC201310-201512

IRAN SPEC

main42345-06590iZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC201310-201512

IRAQ SPEC

main42345-06590iZZE172201310-201409

main42345-12160iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201310-202201

main42345-12180iZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201407-202208

main42345-33140iZRE173..VN201708-202007

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09T00iZRE171..G;ZRE172..ARL,IDN,MA,TH;ZRE171..(CVT,MTM)..(16E,16G,16V,GXLI,XLI)..(GEN,PHL,TH)201312-201408

main43460-09T01iZRE172..VN201408-201907

main43460-09T10iZRE171..4FC..GEN201312-201408

main43460-09T11iZRE171..4FC..GEN201408-201907

main43460-09W70iZRE172..TAIW201310-201903

YEMEN SPEC

main43460-09W70iZZE172201310-201409

main43460-09W90iZRE172..IND201405-201906

main43460-49126iZRE173..MA,PHL201310-201411

main43460-49296iZRE173..6F201411-201708

main43460-49297iZRE173..20V201708-202007

main43460-80126iNZE170201310-201411

main43460-80127iZRE171..6F..GCC201310-201411

main43460-80150iZRE172..PKN201407-201411

main43460-80151iZRE171..N201407-201408

main43460-80156iZRE171..CVT..GCC201411-201903

main43460-80157iZRE171..4FC..GCC201411-201911

main43460-80161iZRE172..PKN201411-201509

MYANMAR SPEC

main43460-80161iZRE171..GXLI201411-201509

NEPAL SPEC

main43460-80162iZRE171..N201408-201509

MYANMAR SPEC

main43460-80162iZRE171..RHD..4FC..GEN201408-201509

NEPAL SPEC

main43460-80170iZRE172..PKN201509-202109

main43460-80173iZRE171..N201509-202208

main43460-80198iZRE172..VN201907-202201

main43470-8Z003iNDE170201405-201906

main43470-8Z201iZRE173..GCC201310-201903

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-02220iZRE173..GCC201310-201903

main43474-02310iZRE171,172..ARL,GEN,IDN,MA,PHL,SGP,TH201312-201407

main43474-02350iNDE170201405-201906

main43474-02440iZRE172..TAIW201310-201903

YEMEN SPEC

main43474-02440iZZE172201310-201409

main43474-02460iZRE172..IND201405-201906

main43474-0W090iZRE171..HTWC..TH201408-201907

main43474-12120iNZE170,ZRE171,172..GCC,PKN201310-201410

main43474-12210iZRE171..6F..XLI..GCC201411-202208

main43474-28010iZRE173..(CVT,MTM)..(GCC,VN)201310-201411

main43474-28030iZRE173..MA,PHL201411-202007

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-02760iNDE170201405-201906

main42345-02770iZRE173..GCC201310-201903

main42345-02A20iZRE172..IND201405-201906

main42345-02B60iZRE171..6F..XLI..GCC201310-201903

YEMEN SPEC

main42345-02B60iZZE172201310-201409

main42345-12090iZRE171..4FC..N201610-202208

main42345-14010iNZE170,ZRE171..(GLI,XLI)..(GCC,PKN)201310-201609

MARK 35.4 OR 35.75M

main42345-14010iZRE171,172..ARL,GEN,IDN,MA,PHL,SGP,TH201310-201709

main90949-01947iNZE170,ZRE171..(GLI,XLI)..(GCC,PKN)201310-201411

MARK 35.45M

15 parts on this diagram · 13 diagrams in section
