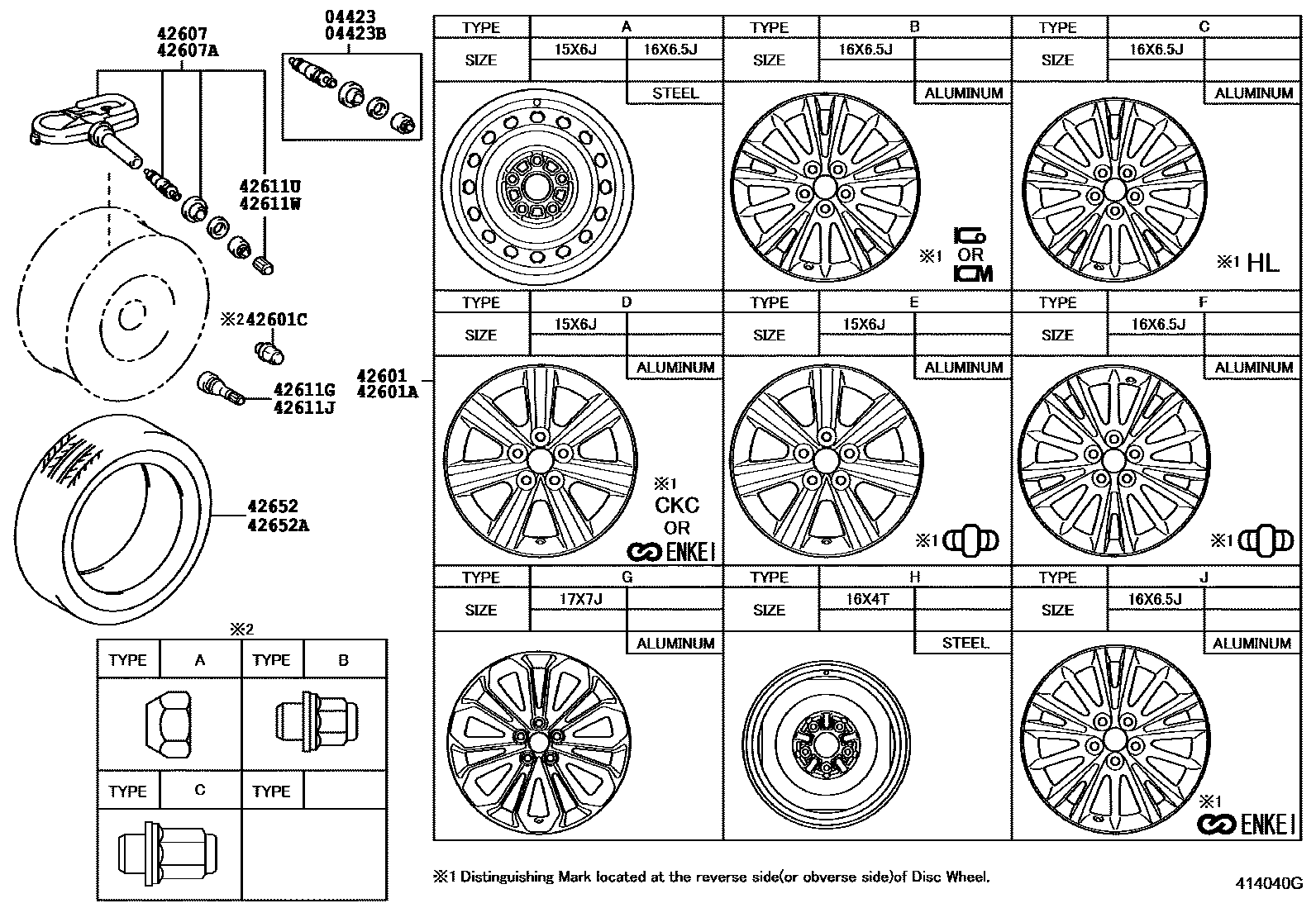

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
(L)
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
(L)
42601WHEEL, DISC
15X6J, #,LOW GRADE PACKAGE,TYPE A:REFER ILLUST.; 15X6J, #,TYPE A:REFER ILLUST.
15X6J, #,TYPE D:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
15X6J, #,TYPE D:REFER ILLUST.
15X6J, #,TYPE E:REFER ILLUST.
15X6J, #,HE PACKAGE,TYPE K:REFER ILLUST.; 15X6J, #,NEW J PACKAGE,TYPE K:REFER ILLUST.; 15X6J, #,TYPE K:REFER ILLUST.
15X6J, #,TYPE D:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
main42611-02C80×4iZRE171..PHL,SGP;ZRE172..18G..IDN;ZRE172..ARL..(E,N);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..(18E,18GS,18V,20G)..(MA,TH)201312-201610
16X6.5J, #,TYPE B:REFER ILLUST.
main42611-02C82×4iZRE172..ARL..(E,N);ZRE171,172..6F..(IDN,PHL);ZRE171..CVT..(PHL,PKN,TH);ZRE172,173..(18E,18V,20G)..(MA,TH)201611
16X6.5J, #,TYPE B:REFER ILLUST.
16X6.5J, #,TYPE C:REFER ILLUST.
main42611-02D52×4iZRE172..RHD..(E,N);ZRE171,172..6F..(IDN,PHL);ZRE171..(ATM,CVT)..(PHL,PKN,TH);ZRE172,173..(18E,18V,20G)..(MA,TH)201611
16X6.5J, #,TYPE C:REFER ILLUST.
17X7J, #,SPORTY PACKAGE,TYPE G:REFER ILLUST.; 17X7J, #,TYPE G:REFER ILLUST.
16X6.5J, #,T/P F:SEE ILL.GRAY
16X6.5J, #,TYPE F:REFER ILLUST.
16X6.5J, #,TYPE J:REFER ILLUST.
15X6J, #,TYPE E:REFER ILLUST.
16X6.5J, #,TYPE B:REFER ILLUST.
16X6.5J, #,TYPE B:REFER ILLUST.
main42611-02N20×4iZRE171..G; ZRE172..18E..TH; ZRE172..18V..IDN;ZRE172,173..(18GS,20V)..(MA,PHL,TH)201611-201907
17X7J, #,SPORTY PACKAGE,TYPE M:REFER ILLUST.; 17X7J, #,TYPE M:REFER ILLUST.; 17X7J, #,UP GRADE PACKAGE&TIRE & DISC WHEEL-215/45R17 7J ALUMINUM,TYPE M:REFER ILLUST.
main42611-02N31×4iZRE171..6F..XLI..GEN; ZRE171..G;ZRE171..RHD..(16J,GLI); ZRE172..ARL..D201611-201907
15X6J, #,MYANMAR, CAMBODIA SPEC,TYPE Q:REFER ILLUST.; 15X6J, #,TIRE & DISC WHEEL-195/65R15 ALUMINUM,TYPE Q:REFER ILLUST.; 15X6J, #,TYPE Q:REFER ILLUST.
15X6J, #,TYPE N:REFER ILLUST.
15X6J, #,LOW GRADE PACKAGE,TYPE R:REFER ILLUST.; 15X6J, #,TYPE R:REFER ILLUST.
15X6J, #,TYPE R:REFER ILLUST.
15X6J, #,TYPE D:REFER ILLUST.
15X6J, #,LOW FLEET PACKAGE,TYPE A:REFER ILLUST.; 15X6J, #,LOW GRADE PACKAGE,TYPE A:REFER ILLUST.; 15X6J, #,UAE SPEC&LOW FLEET PACKAGE,TYPE A:REFER ILLUST.; 15X6J, #,UAE SPEC&LOW GRADE PACKAGE,TYPE A:REFER ILLUST.
16X6.5J, #,X PACKAGE(LOW),TYPE J:REFER ILLUST.
main42611-02J80×4iZRE171..GLI..GCC;ZRE172..TAIW..(D,E); ZRE172..TAIW..(D,E); ZRE173..GLI201601-201609
16X6.5J, #,TIRE & DISC WHEEL-205/55R16 ALUMI,T/P F:SEE ILL.BLACK; 16X6.5J, #,X PACKAGE(REAR EMBLEM "X")&TIRE INFLATION PRESSURE WARNING-WITH,T/P F:SEE ILL.BLACK; 16X6.5J, #,X PACKAGE(REAR EMBLEM "X"),T/P F:SEE ILL.BLACK
17X7J, #,X PACKAGE(REAR EMBLEM "X"),TYPE P:REFER ILLUST.
17X7J, #,SPORTY PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH,TYPE G:REFER ILLUST.; 17X7J, #,SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X")&TIRE INFLATION PRESSURE WARNING-WITH,TYPE G:REFER ILLUST.; 17X7J, #,SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X"),TYPE G:REFER ILLUST.; 17X7J, #,SPORTY PACKAGE,TYPE G:REFER ILLUST.; 17X7J, #,TIRE & DISC WHEEL-215/45R17 7J ALUMINUM,TYPE G:REFER ILLUST.; 17X7J, #,X PACKAGE(REAR EMBLEM "X")&TIRE INFLATION PRESSURE WARNING-WITH,TYPE G:REFER ILLUST.; 17X7J, #,X PACKAGE(REAR EMBLEM "X"),TYPE G:REFER ILLUST.
16X6.5J,#,TIRE & DISC WHEEL-205/55R16 ALUMINUM,TYPE S:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
15X6J, #,TYPE A:REFER ILLUST.
15X6J, #,TYPE D:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
15X6J, #,TYPE D:REFER ILLUST.
15X6J, #,NEW J PACKAGE,TYPE K:REFER ILLUST.; 15X6J, #,TYPE K:REFER ILLUST.
15X6J, #,TYPE D:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
16X6.5J, #,TYPE A:REFER ILLUST.
16X6.5J, #,TYPE B:REFER ILLUST.
main42611-02C82iZRE171..GLI..GEN; ZRE172..ARL..(E,N);ZRE17#..(16E,16G,16V,18E,18G,20G)..(IDN,MA,PHL)201611-201907
16X6.5J, #,CARIBBEAN NATIONS SPEC,TYPE B:REFER ILLUST.; 16X6.5J, #,TYPE B:REFER ILLUST.
16X6.5J, #,TYPE C:REFER ILLUST.
main42611-02D52supersedes 42611-02N31iZRE171..GLI..GEN; ZRE172..ARL..(E,N);ZRE17#..(16E,16G,16V,18E,18G,20G)..(IDN,MA,PHL)201611-201907
16X6.5J, #,CARIBBEAN NATIONS SPEC,TYPE C:REFER ILLUST.; 16X6.5J, #,TYPE C:REFER ILLUST.
17X7J, #,SPORTY PACKAGE,TYPE G:REFER ILLUST.; 17X7J, #,TYPE G:REFER ILLUST.
16X6.5J, #,TYPE F:REFER ILLUST.
16X6.5J, #,TYPE F:REFER ILLUST.
16X6.5J, #,TYPE J:REFER ILLUST.
15X6J, #,TYPE E:REFER ILLUST.
16X6.5J, #,TYPE B:REFER ILLUST.
16X6.5J, #,TYPE B:REFER ILLUST.
17X4T,TYPE L:REFER ILLUST.
main42611-02N20iZRE171..G; ZRE172..18E..TH; ZRE172..18V..IDN;ZRE172,173..(18GS,20V)..(MA,PHL,TH)201611-201907
17X7J, #,SPORTY PACKAGE,TYPE M:REFER ILLUST.; 17X7J, #,TYPE M:REFER ILLUST.; 17X7J, #,UP GRADE PACKAGE&TIRE & DISC WHEEL-215/45R17 7J ALUMINUM,TYPE M:REFER ILLUST.
16X6.5J,TYPE A:REFER ILLUST.
15X6J, #,LOW GRADE PACKAGE,TYPE R:REFER ILLUST.; 15X6J, #,TYPE R:REFER ILLUST.
15X6J, #,TYPE R:REFER ILLUST.
16X4T,TYPE H:REFER ILLUST.
15X6J, #,LOW FLEET PACKAGE,TYPE A:REFER ILLUST.; 15X6J, #,LOW GRADE PACKAGE,TYPE A:REFER ILLUST.; 15X6J, #,UAE SPEC&LOW FLEET PACKAGE,TYPE A:REFER ILLUST.; 15X6J, #,UAE SPEC&LOW GRADE PACKAGE,TYPE A:REFER ILLUST.
16X6.5J, #,LOW GRADE PACKAGE,TYPE J:REFER ILLUST.
16X6.5J, #,TIRE & DISC WHEEL-205/55R16 ALUMI,TYPE F:REFER ILLUST.; 16X6.5J, #,X PACKAGE(REAR EMBLEM "X"),TYPE F:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/45R17 7J ALUMINUM,TYPE P:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/45R17 7J ALUMINUM,TYPE G:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
main90942-T1005×20iZRE171..G;ZRE172..TAIW..D;ZRE171,173..XLI..GCC;ZRE171..RHD..(16J,GLI)201610-201907
(L),T/P C:REF.ILLUST
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
(L); LOW FLEET PACKAGE,(L); LOW GRADE PACKAGE,(L); UAE SPEC&LOW FLEET PACKAGE,(L); UAE SPEC&LOW GRADE PACKAGE,(L)
TIRE & DISC WHEEL-215/45R17 7J ALUMINUM,(J); UAE SPEC&LOW FLEET PACKAGE; UAE SPEC&LOW GRADE PACKAGE
SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X")&TIRE INFLATION PRESSURE WARNING-WITH; X PACKAGE(REAR EMBLEM "X")&TIRE INFLATION PRESSURE WARNING-WITH
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
(L)
LOW FLEET PACKAGE,(J); LOW GRADE PACKAGE,(J); UAE SPEC&LOW FLEET PACKAGE,(J); UAE SPEC&LOW GRADE PACKAGE,(J)
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
(J); LOW FLEET PACKAGE,(J); LOW GRADE PACKAGE,(J); UAE SPEC&LOW FLEET PACKAGE,(J); UAE SPEC&LOW GRADE PACKAGE,(J)
(L); LOW FLEET PACKAGE,(L); LOW GRADE PACKAGE,(L); UAE SPEC&LOW FLEET PACKAGE,(L); UAE SPEC&LOW GRADE PACKAGE,(L)
42611WCAP, TIRE VALVE (FOR SPARE)
(J)
(L)
42652TIRE
195/65R15,*B/S; 195/65R15,*B/S,LOW FLEET PACKAGE; 195/65R15,*B/S,LOW GRADE PACKAGE
205/55R16,*B/S
195/65R15
195/65R15
205/55R16
205/55R16,*B/S
195/65R15,*B/S
195/65R15
205/55R16
195/65R15,*Y/H
195/65R15,*Y/H; 195/65R15,*Y/H,LOW FLEET PACKAGE; 195/65R15,*Y/H,LOW GRADE PACKAGE; 195/65R15,*Y/H,UAE SPEC&LOW FLEET PACKAGE; 195/65R15,*Y/H,UAE SPEC&LOW GRADE PACKAGE
205/55R16,*Y/H
205/55R16,*Y/H
205/55R16,*Y/H
205/55R16,*Y/H
215/45R17,*B/S,TIRE & DISC WHEEL-215/45R17 7J ALUMINUM
42652ATIRE (FOR SPARE)
T125/70D16,*C/S
195/65R15,*B/S
205/55R16,*B/S
195/65R15
195/65R15
195/65R15,*B/S
195/65R15
205/55R16
195/65R15,*Y/H
195/65R15,*Y/H
205/55R16,*Y/H
205/55R16,*Y/H
205/55R16,*Y/H
205/55R16,*Y/H
T135/80D16
T125/70D17; T125/70D17,CNG PACKAGE
T125/70D16,*C/S,LOW GRADE PACKAGE
215/45R17,*B/S,TIRE & DISC WHEEL-215/45R17 7J ALUMINUM
13 parts on this diagram · 6 diagrams in section
