1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90119-12168×2i201310-201409

*12-1.25PX55-30,NO.1:REFER ILLUST.

main90119-T0225×7i201312-201610

*10-1.25PX45-30,(L)

main91512-61045×3i201310-201512

*10-1.25PX45-30

main91612-61045×7i201407-201707

*10-1.25PX45-30,(J)

main91642-81055×2i201310-201409

*10-1.25PX55-30,NO.2:REFER ILLUST.

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-0D010i201312-201610

main33403-20230i201310-201512

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main90301-T0044i201312-201610

main96711-24018i201310-201512

34365ARETAINER, OUTER RACE

main34365-52012i201611-202208

main34365-52020i201707-201911

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-02100i201310-201512

main35013-02110i201611-202208

main35013-02140i201407-201707

main35013-02150i201310-201512

main35013-02160i201310-201409

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-42020i201310-201512

main35102-52020i201611-202208

main35102-52030i201707-201911

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071×11i201310-201512

*8-1.25PX30-25

main90105-08365×11i201310-201707

*8-1.25PX28-20

main90105-08375×9i201707-201911

*8-1.25PX25-25

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001×4i201310-201512

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×4i201310-201409

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-14007i201310-201409

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-02160i201310-201409

main35103-02170i201407-201707

main35103-02200i201310-201512

main35103-02220i201312-201610

main35103-02230i201310-201512

35103CRING, O

main90301-06008×2i201310-201512

main90301-06024×2i201310-201707

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149i201310-201707

NO.1:REFER ILLUST.

main90930-03156i201707-201911

main90930-03166i201310-201409

NO.2:REFER ILLUST.

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-20132i201310-201409

main35104-28093i201310-201512

main35104-52032i201611-202208

main35104-52090i201407-201707

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×5i201310-201610

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×5i201310-201409

35104VHOSE (FOR BREATHER PLUG)

main35121-12070i201310-201610

main35121-21020i201310-201512

main90447-11039i201707-201911

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×2i201310-201610

main90250-10034×4i201310-201707

35104XRING, O (FOR BREATHER PLUG)

main90301-06005i201310-201512

main90301-06021i201310-201610

main90301-08015i201707-201911

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011i201407-201707

main90341-18016i201310-201506

main90341-18023i201611-202208

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010i201707-201911

main90430-18008i201310-201610

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-28090i201310-201512

main35106-52020i201611-202208

main35106-52030i201707-201911

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×19i201310-201707

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-06320×2i201310-201512

*6-1.00PX50-25,NO.1:REFER ILLUST.

main90105-08066i201310-201512

*8-1.25PX72-30,NO.4:REFER ILLUST.

main90105-08071×14i201310-201409

*8-1.25PX30-25

main90105-08233×7i201310-201512

*8-1.25PX42-30,NO.2:REFER ILLUST.

main90105-08353×8i201310-201512

*8-1.25PX50-30,NO.3:REFER ILLUST.

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-10018×4i201310-201512

main90301-10189×2i201310-201512

35145CGASKET, TRANSAXLE CASE

main35145-21010i201310-201610

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-12020×4i201407-201707

main35149-21010i201310-201610

35159GASKET, BRAKE DRUM

main35159-21010i201310-201512

main35159-52010i201407-201707

35165PLATE, TRANSMISSION CASE, NO.1

main35165-52010i201707-201911

main35165-52030i201310-201610

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21011i201310-201512

main35168-52010i201407-201707

main35168-52020i201310-201610

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173i201310-201409

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2i201310-201409

main35394-48010×2i201407-201707

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-02010i201310-201409

main35519-20030i201707-201911

main35519-41010i201312-201707

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

90119T0237

main90119-T0237

90119T0275

main90119-T0275

9046400905

main90464-00905

9161160628

main91611-60628

9167180816

main91671-80816

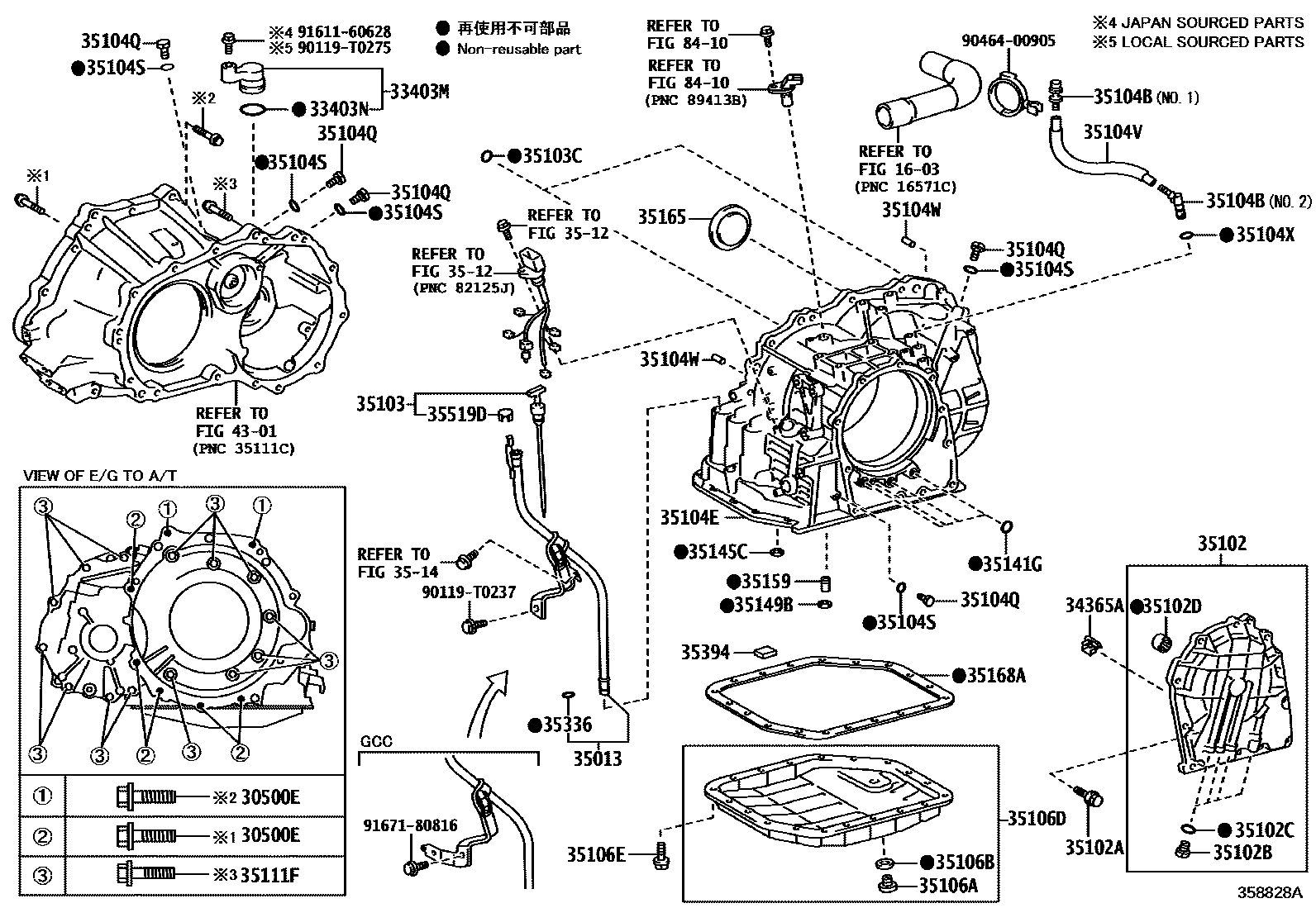

TRANSMISSION CASE & OIL PAN (ATM)
