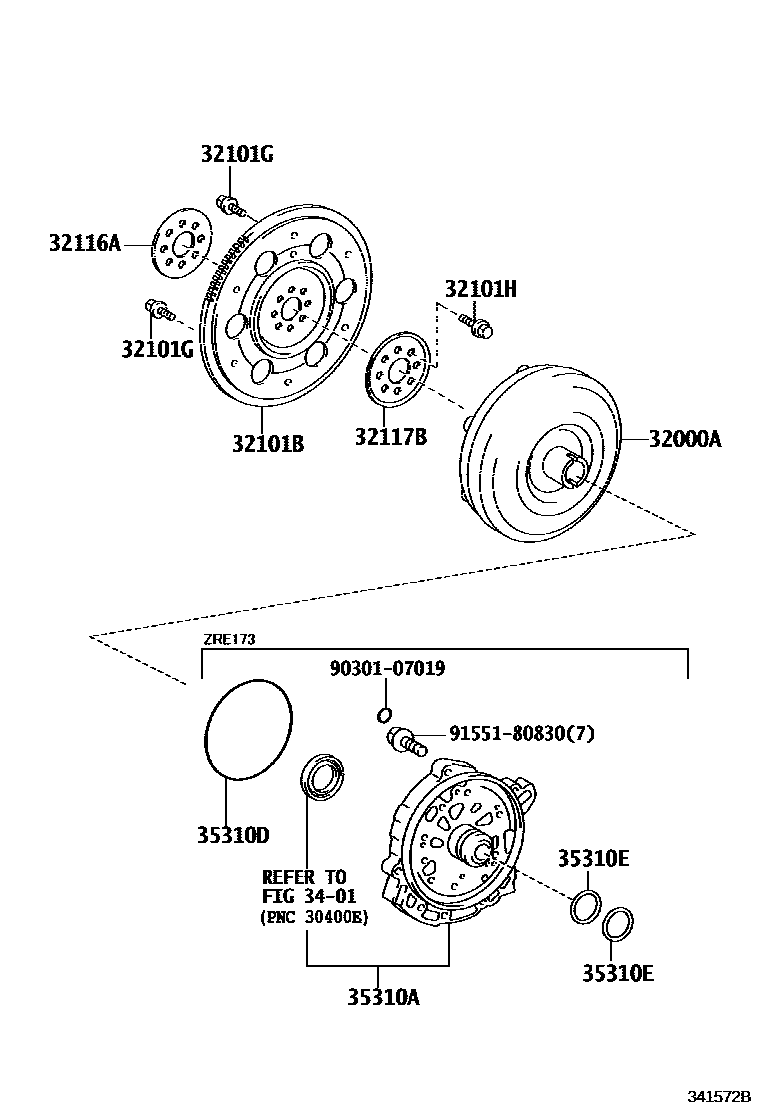

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K111,K313 0003 1K313

32000ACONVERTER ASSY, TORQUE

main32000-12490iZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V)201310-201507

main32000-12500iZRE171..CVT..GCC201512-201609

main32000-28180iZRE173..MA,PHL201312-201610

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-02060iZRE171,172..CVT..(ARL,GCC,IDN,IND,MA,PHL,SGP,TAIW,TH,VN)201811-202201

(L)

main32101-12100iZRE172..CVT..PKN201708-202104

(J)

main32101-28050iZRE173..VN201312-201709

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZRE172..CVT..IND201310-201702

*8-1.25PX12-8.4,BLACK

main90109-09001iZRE173..VN201312-201709

*9-1.25PX12.4-7.3,BLACK

main90119-08498×5iZRE171..CVT..(GCC,PHL,SGP,TH);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW,TH)201610

*8-1.25PX12-8,SILVER WHITE

main90119-09025×5iZRE173..VN201312-201709

*9-1.25PX12.4-8.4,SILVER

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..CVT..(MA,PHL,SGP)201310-201610

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZRE172..TAIW201310-201609

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..CVT..(MA,PHL,SGP)201310-201610

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-12170iZRE172..TAIW201507-201609

main35310-28031iZRE173..GCC201512-201609

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99090iZRE173..VN201312-201611

main90301-99133iZRE172..TAIW201507-201609

main90301-99202iZRE172..CVT..PKN201702-201707

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12030×2iZRE172..TAIW201507-201609

main35617-12031×2iZRE171,172..CVT..(IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN)201610

main35617-28020×2iZRE173..MA,PHL201312-201610

9030107019

main90301-07019

9155180830

main91551-80830

12 parts on this diagram · 2 diagrams in section
