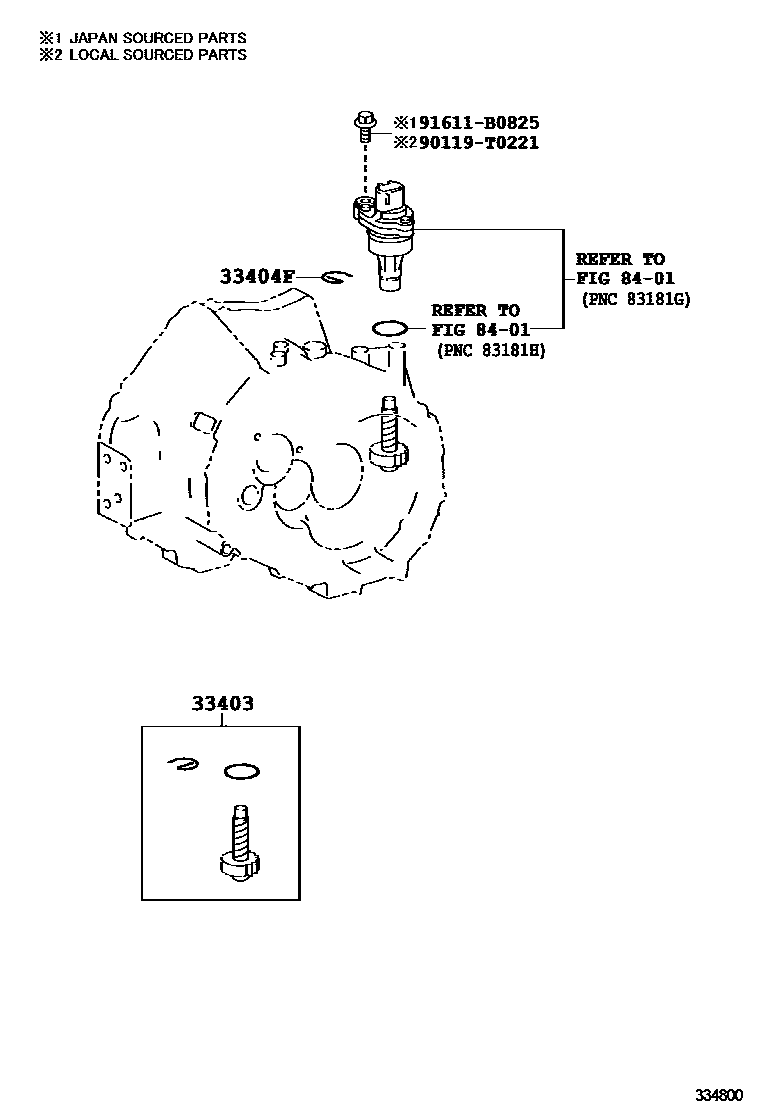

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29395iZRE171..6F..GLI201310-201511

N=29,MARK 29:35

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iZRE171..6F..GLI201310-201511

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119T0221

main90119-T0221

91611B0825

main91611-B0825

5 parts on this diagram · 1 diagram in section
