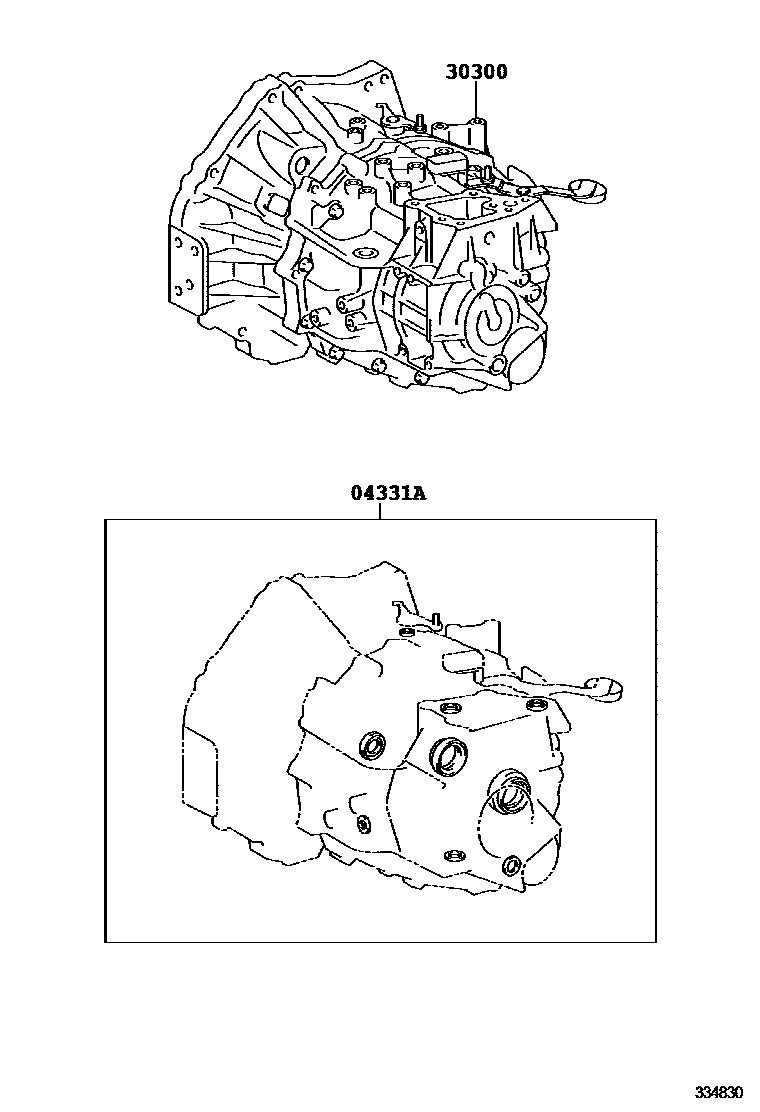

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1EC60,EC65 0002 1EB60 0003 1C50

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12800iZZE172..5F201310-201409

main04331-12810iNZE170..5F201407-201707

main04331-12820iZRE173..6F201310-201511

main04331-12860iNZE170..5F201904-201911

PNC 30300=TYPE B

main04331-20252iZRE171..16J..HTWCF;ZRE171,172..6F..(ARL,GEN,IDN,PHL)201310-201610

main04331-20270iZRE172..6F..PKN201612-202109

30300TRANSAXLE ASSY, MANUAL

main30300-02380iNZE170..5F201707-201911

C50,TYPE A:REFER ILLUST.

main30300-12B80iZZE172..5F201310-201409

C50

main30300-12C20iNZE170..5F201407-201707

C50,TYPE B:REFER ILLUST.

main30300-12E51iNDE170201405-201702

EC65

main30300-12F50iZRE171..16J..HTWCF;ZRE172..6F..(ARL,IDN)201312-201610

EC60

main30300-12G10iZRE173..6F201310-201511

EB60

main30300-12G30iZRE171..6F..HTWC201610

EC60

2 parts on this diagram · 3 diagrams in section
