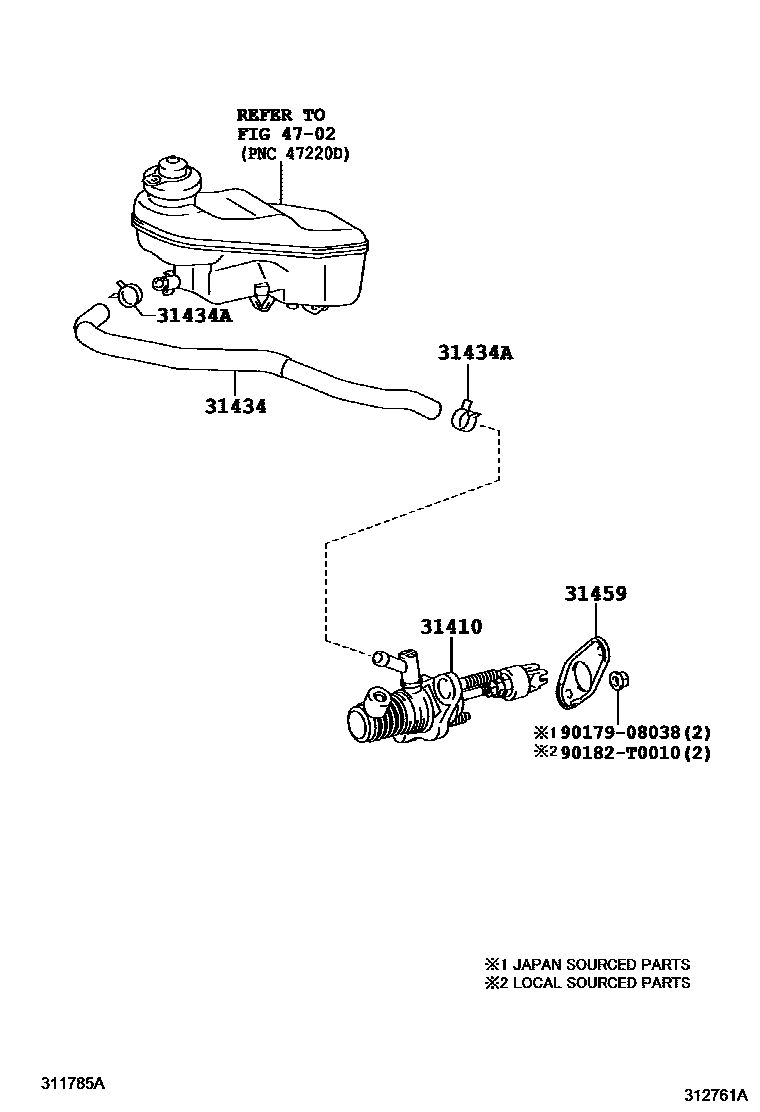

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-02080iNZE170,ZRE172..MTM..PKN201407-201707

main31420-12030iZRE171..16J..HTWC201310-201601

31434TUBE, CLUTCH RESERVOIR

main31434-12140iZRE171..16J..HTWCF;ZRE171,172..RHD..6F..(ARL,GEN,IDN)201312-201610

main31434-12150iZZE172..5F201310-201409

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96136-41801×2iZRE171..16J..HTWCF;ZRE171,172..6F..(ARL,GEN,IDN,PHL)201310-201610

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-42040iZZE172..5F201310-201409

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

90182T0010

main90182-T0010

7 parts on this diagram · 2 diagrams in section
