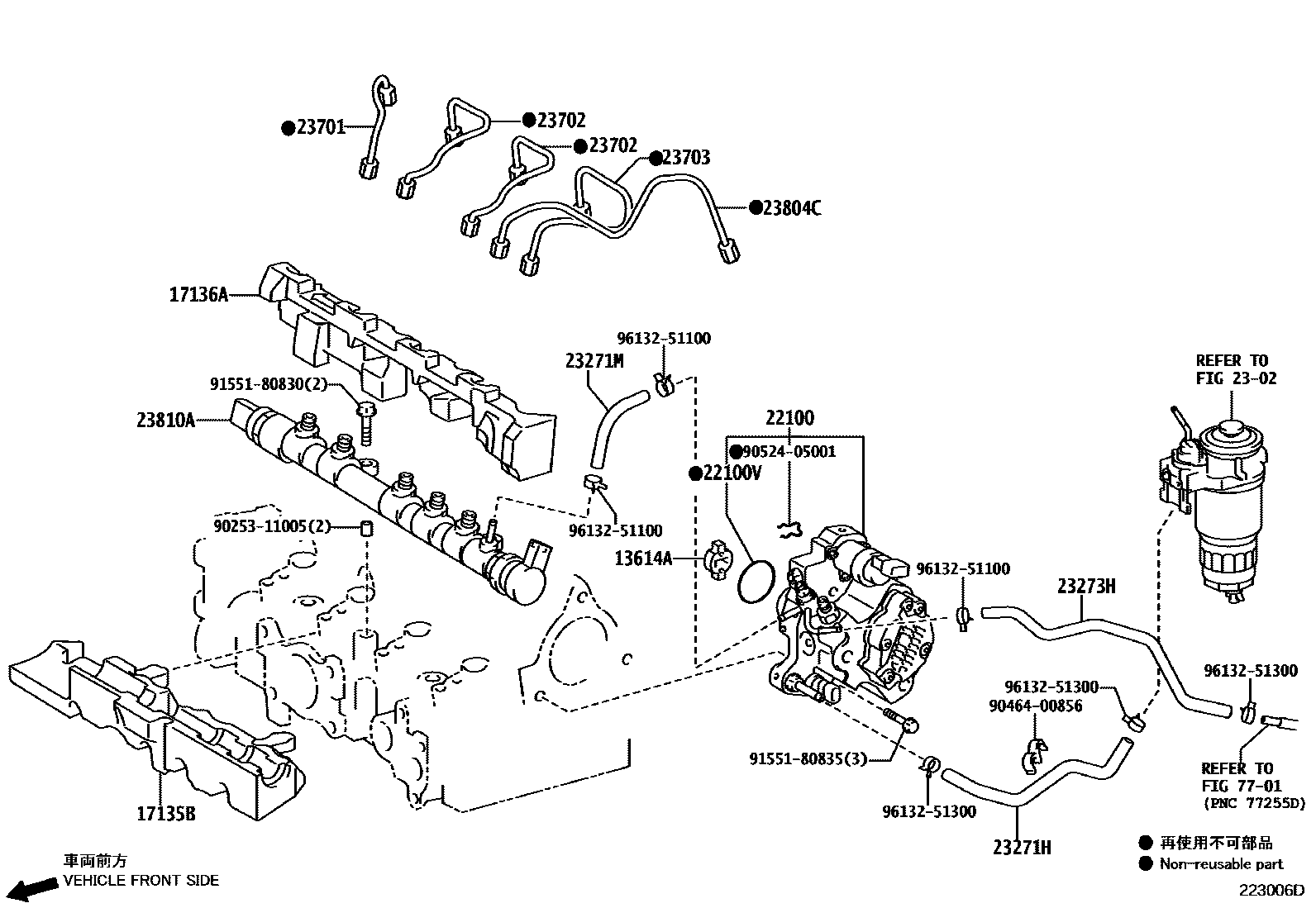

INJECTION PUMP ASSEMBLY

13614ACOUPLING, SUPPLY PUMP DRIVE, NO.1

main13614-33010i1NDTV..NDE170201405-201702

17135BINSULATOR, INTAKE MANIFOLD, NO.1

main17135-33011i1NDTV..NDE170201405-201506

main17135-33012i1NDTV..NDE170201507-201702

17136AINSULATOR, INTAKE MANIFOLD, NO.2

main17136-33010i1NDTV..NDE170201405-201702

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-0W010i1NDTV..NDE170201405-201702

22100VRING, O(FOR INJECTION PUMP)

main96723-35044i1NDTV..NDE170201405-201702

2302FUEL FILTER

→ Go to FIG 23-02

23271HHOSE, FUEL, NO.1

main23271-33120i1NDTV..NDE170201405-201702

23271MHOSE, FUEL

main23273-33090i1NDTV..NDE170201405-201702

23273HHOSE, FUEL, NO.2

main23273-33160i1NDTV..NDE170201405-201702

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-33040i1NDTV..NDE170201405-201702

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-33010×2i1NDTV..NDE170201405-201702

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-33010i1NDTV..NDE170201405-201702

23804CPIPE SUB-ASSY, FUEL INLET

main23804-33020i1NDTV..NDE170201405-201702

23810ARAIL ASSY, COMMON

main23810-33030i1NDTV..NDE170201405-201507

main23810-33031i1NDTV..NDE170201507-201702

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9025311005

main90253-11005

9046400856

main90464-00856

9052405001

main90524-05001

9155180830

main91551-80830

9155180835

main91551-80835

9613251100

main96132-51100

9613251300

main96132-51300

22 parts on this diagram · 1 diagram in section
