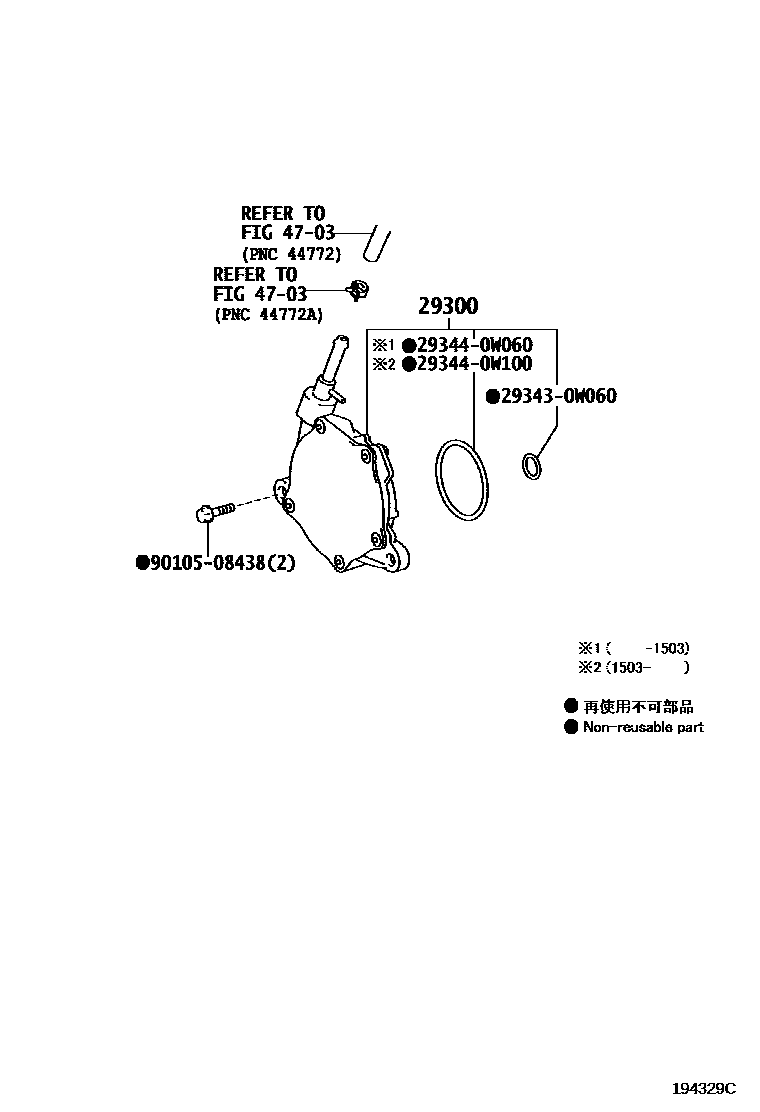

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-0W072i1NDTV..NDE170201405-201502

main29300-0W120i1NDTV..NDE170201503-201702

main29300-0W121i1NDTV..NDE170201704-201906

main29300-37011i1ZRFAE..ZRE171201611-201907

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

293430W060RING, O VACUUM PUMP, NO.1

main29343-0W060

293440W060RING, O VACUUM PUMP, NO.2

main29344-0W060

293440W100RING, O VACUUM PUMP, NO.2

main29344-0W100

9010508438

main90105-08438

6 parts on this diagram · 2 diagrams in section
