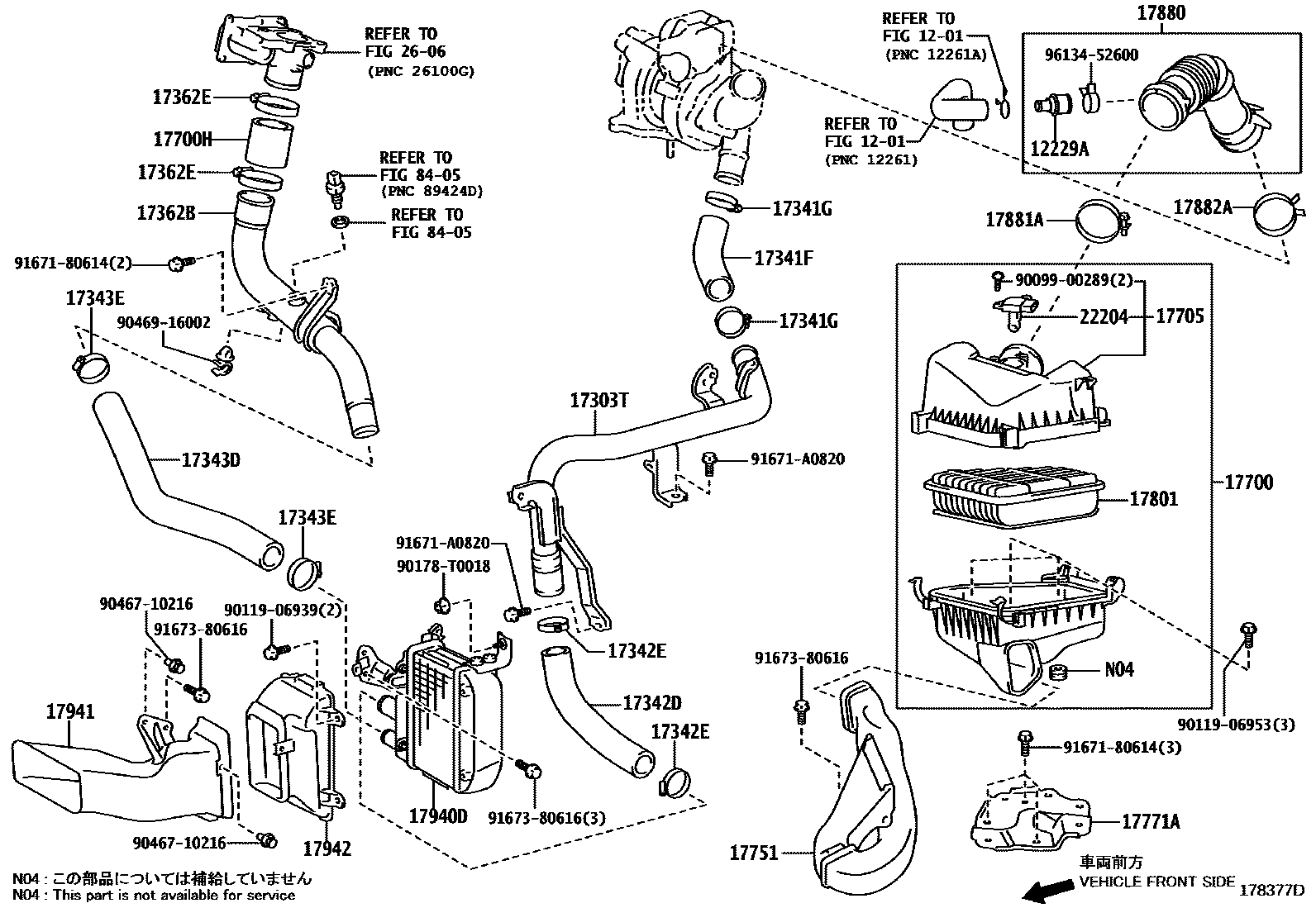

AIR CLEANER
1201
12229APIPE, VENTILATION
17303TPIPE SUB-ASSY, AIR
17341FHOSE, AIR, NO.1
17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)
17342DHOSE, AIR, NO.2
17342ECLAMP OR CLIP(FOR AIR HOSE, NO.2)
17343DHOSE, AIR, NO.3
17343ECLAMP, HOSE(FOR AIR HOSE, NO.3)
17362BTUBE, AIR, NO.2
17362ECLAMP, NO.2(FOR AIR TUBE, NO.2)
17700CLEANER ASSY, AIR
17700HHOSE, AIR
17705CAP SUB-ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17771ABRACKET, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17880HOSE ASSY, AIR CLEANER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
main90460-T0010i2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..RHD..CVT;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);1ZR#,2ZRFBE,3ZRFE..ZRE17#..(CVT,MTM)..(GEN,MA,PHL,PKN,SGP,TH201312-202208
NO.2
NO.1
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17940DINTERCOOLER ASSY
17941GUIDE, INTERCOOLER AIR, NO.1
17942GUIDE, INTERCOOLER AIR, NO.2
22204METER SUB-ASSY, INTAKE AIR FLOW
MARK 22204-0P010
MARK 22204-0V020
MARK 22204-28010
2606
8405
9009900289
main90099-00289
9011906939
main90119-06939
9011906953
main90119-06953
90178T0018
main90178-T0018
9046710216
main90467-10216
9046916002
main90469-16002
9167180614
main91671-80614
91671A0820
main91671-A0820
9167380616
main91673-80616
9613452600
main96134-52600
37 parts on this diagram · 4 diagrams in section
