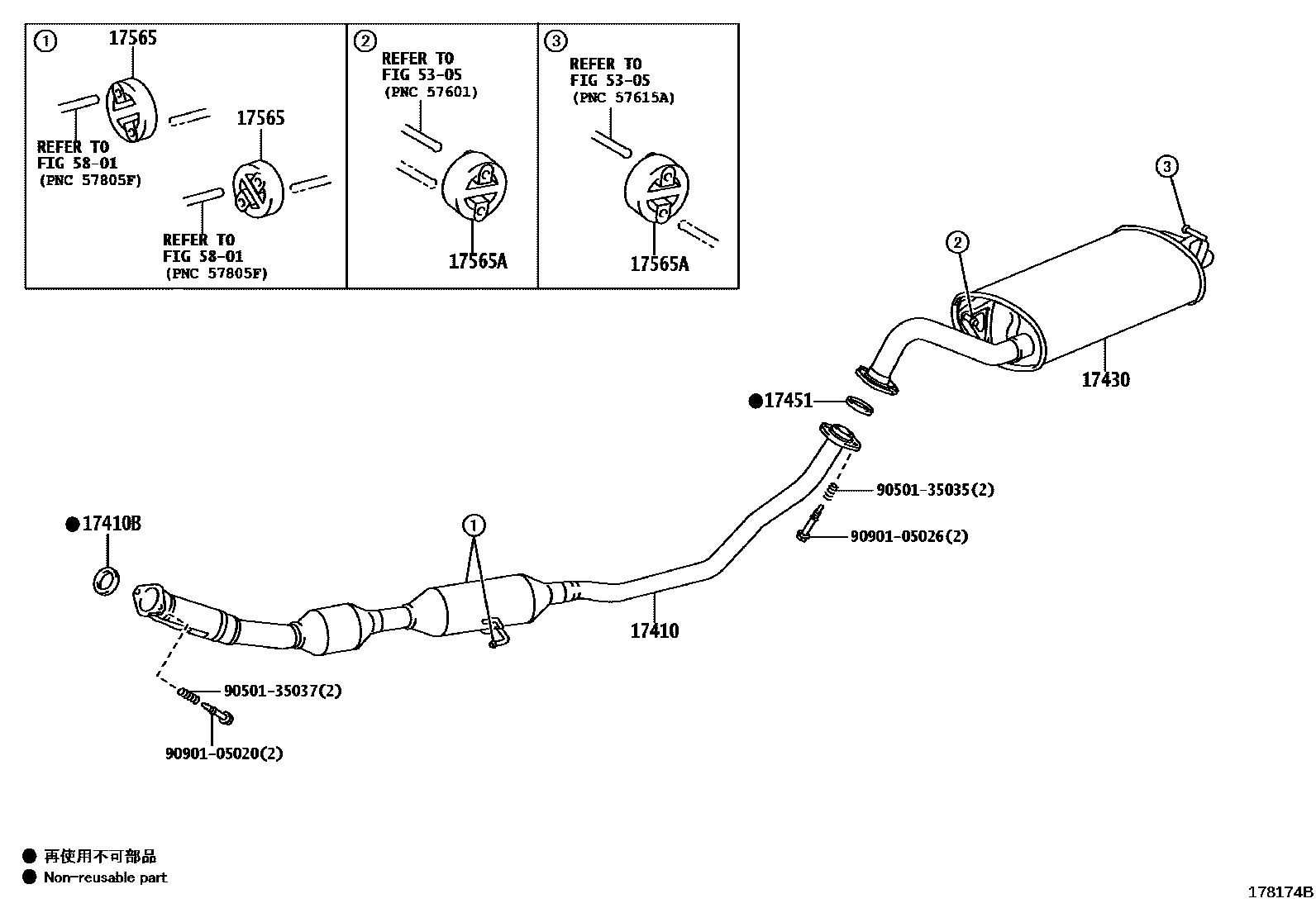

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0D540i1ZZFE..ZZE172201310-201409

main17410-0M250i2NZFE..NZE170201407-201706

main17410-0M271i2NZFE..NZE170201707-201911

main17410-0N140i1NDTV..NDE170201703-201906

main17410-0T470i1ZRFE..ZRE171..N201407-201706

main17410-0T471i1ZRFE..ZRE171..6F..N201707-202209

main17410-0T650i1ZRF,1ZRFBE..ZRE171; 1ZRFE..ZRE171..RHD..4FC..GEN201611-201907

FIJI SPEC

main17410-0T660i1ZRFE,2ZRFE..ZRE171,172..IDN,MA,PHL; 1ZRFE..ZRE171..G201312-201610

BRUNEI SPEC

main17410-0T670i2ZRFE..ZRE172..ARL201312-201610

main17410-0T690i3ZRFE..ZRE173..MA,PHL201312-201610

main17410-0T700i3ZRFE..ZRE173..6F201310-201511

main17410-0T710i2ZRFE..ZRE172..IND201405-201702

main17410-0T730i2ZRFE..ZRE172..VN201409-201701

main17410-0T740i3ZRFE..ZRE173..VN201409-201702

main17410-0T750i2ZRFE..ZRE172..TAIW201310-201609

main17410-0T760i1ZRFE..ZRE171..CVT..GCC201512-201609

main17410-0T770i1ZRFE..ZRE171..4FC..GEN201611-201907

main17410-0T850i2ZRFE..ZRE172..PKN201407-201706

main17410-0TB30i1ZRFAE..ZRE171201611-201907

main17410-0TB40i2ZRFE..ZRE172..ARL201611-201907

main17410-0TB50i2ZRFE..ZRE172..TAIW201610-201903

main17410-0TB60i1ZRFE,2ZRFE..ZRE171,172..(CVT,MTM)..(GEN,IDN,MA,PHL)201611-201907

main17410-0TB70i3ZRFE..ZRE173..MA,PHL201611-201907

main17410-0TB80i1ZRFE..ZRE171..GCC201610-201903

main17410-0TB90i3ZRFE..ZRE173..GCC201610-201903

main17410-0TC00i2ZRFE..ZRE172..VN201709-202201

main17410-0TC10i3ZRFE..ZRE173..VN201709-202007

main17410-0TC20i2ZRFE..ZRE172..IND201703-201906

main17410-0TC30i2ZRFBE..ZRE172201611-201907

main17410-0TC41i2ZRFE..ZRE172..6F..PKN201707-202109

main17410-0TC90i2ZRFE..ZRE172..VN201701-201709

main17410-0TD00i3ZRFE..ZRE173..VN201702-201709

main17410-0TJ50i1ZRFE..ZRE171202209

17410BGASKET, EXHAUST PIPE

main17451-0M020i2NZFE..NZE170201707-201911

main17451-22070i1ZZFE..ZZE172201310-201409

main17451-28040i1ZRFE..ZRE171..HTWC..TH201310-201601

main17451-28041i1ZRFE,2ZRFE..ZRE17#202311

17430PIPE ASSY, EXHAUST, TAIL

main17430-0N140i1NDTV..NDE170201405-201702

main17430-0T340supersedes 17430-0T350i1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,TH; 3ZRFE..ZRE173..PHL201312-201610

LAOS SPEC

main17430-0T350i2ZRFBE,3ZRFE..ZRE172,173..(18GS,20V)..(PHL,TH,VN)201611-202007

main17430-0T360i1ZRFE..ZRE171..4FC..GCC201310-201512

main17430-0T380i3ZRFE..ZRE173..GCC201512-201609

main17430-0T390i2ZRFE..ZRE172..IND201405-201702

main17430-0T410i1ZRFE..ZRE171..4FC..N201707-202208

main17430-0T370i2ZRFE..ZRE172..TAIW..E201310-201609

SPORTY PACKAGE

main17430-0T460i3ZRFE..ZRE173..4FC..GLI201410-201512

SPORTY PACKAGE

17451GASKET, EXHAUST PIPE

main17451-0M032i2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..RHD..CVT;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);1ZRFE..ZRE171..(CVT,MTM)..(GEN,PHL,PKN);1NDTV,2NZFE,1ZRF,1ZRFAE,1ZRFBE,2ZRFBE,3ZRFE..NDE170,NZE170,ZRE17#..IND,MA,PHL,PKN,SGP,TH,VN201611

main17451-23042i3ZRFE..ZRE173..6F;1ZRFE..ZRE171..6F..GLI201310-201511

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D110×2i3ZRFE..ZRE173..6F;1ZRFE..ZRE171..6F..GLI201310-201511

main17565-0P100×2i1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH201312-201610

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0D120×2i2ZRFE..ZRE172..TAIW;1ZRFE..ZRE171..6F..XLI..GCC201310-201609

main17565-0P110×2i2ZRFE..ZRE172..CVT..VN201611-202201

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

12 parts on this diagram · 5 diagrams in section
