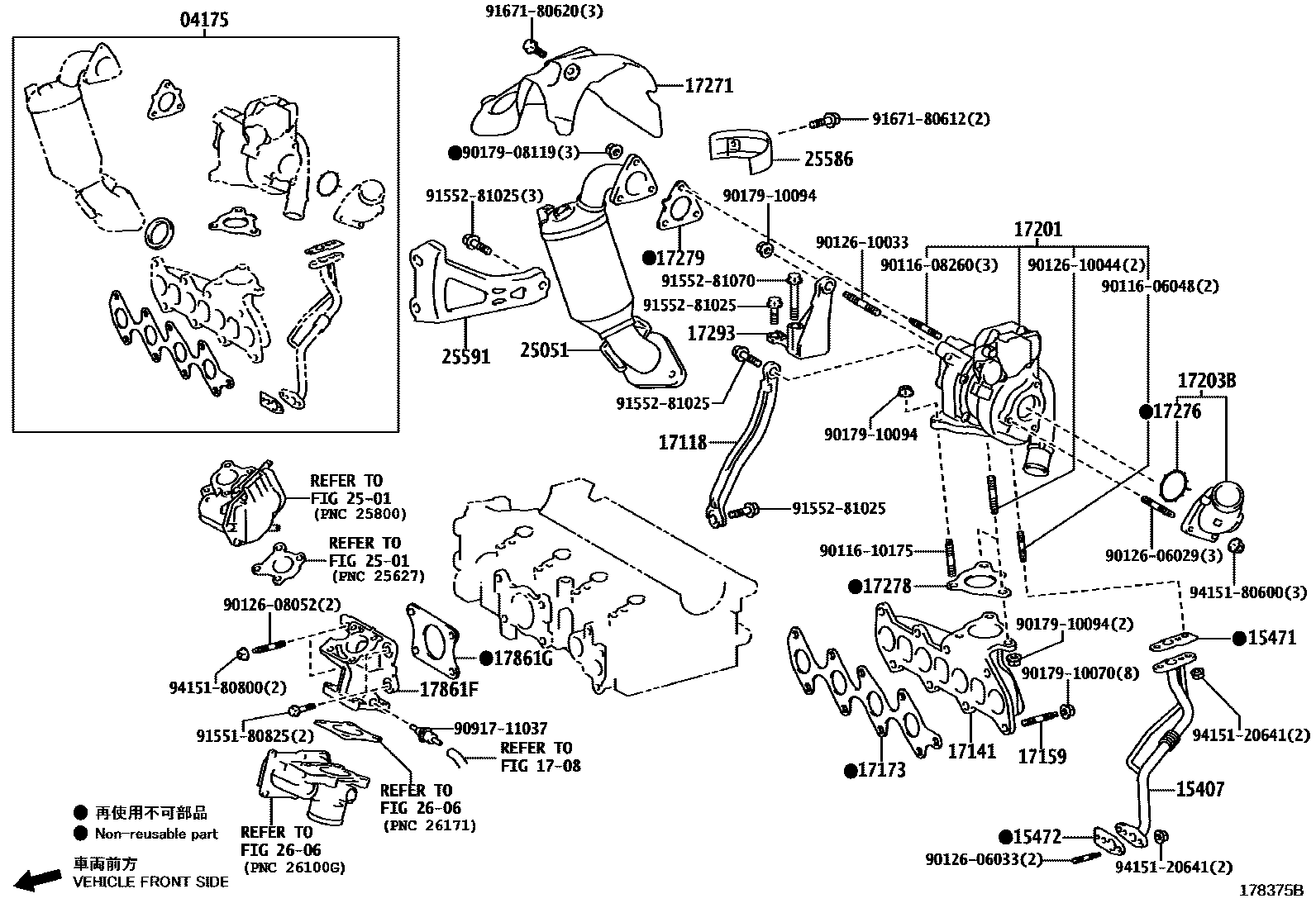

MANIFOLD
04175GASKET KIT, TURBOCHARGER
15407PIPE SUB-ASSY, TURBO OIL INLET
15471GASKET, TURBO OIL INLET
15472GASKET, TURBO OIL OUTLET, NO.1
1708VACUUM PIPING
17118STAY, MANIFOLD
main17118-0T040i2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH201610-202201
(L)
(J)
17141MANIFOLD, EXHAUST
(L)
(L)
(J)
(J)
(J)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
main90126-08026×2i1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC; 1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC201310-201512
(J),NO.1; NO.1
NO.2
main90126-08052×5i3ZRFE..ZRE173..(20V,GLI,XLI)..(GCC,MA,PHL);1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH201610-201708
NO.2
(L),NO.1
main90126-T0016×5i2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN201708-202201
(L),NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
17201TURBOCHARGER SUB-ASSY
17203BELBOW SUB-ASSY, COMPRESSOR INLET
17271INSULATOR, TURBO, NO.1
17276GASKET, COMPRESSOR INLET
17278GASKET, TURBO TO EXHAUST MANIFOLD
17279GASKET, TURBINE OUTLET ELBOW
17293STAY, TURBOCHARGER
17861FCONNECTOR, INTAKE AIR
17861GGASKET, INTAKE AIR CONNECTOR
2501EXHAUST GAS RECIRCULATION SYSTEM
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*114=TOYOTA/*207/Y
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25591BRACKET, MANIFOLD SUPPORT
2606VENTURI
9011606048
main90116-06048
9011608260
main90116-08260
9011610175
main90116-10175
9012606029
main90126-06029
9012606033
main90126-06033
9012608052
main90126-08052
9012610033
main90126-10033
9012610044
main90126-10044
9017908119
main90179-08119
9017910070
main90179-10070
9017910094
main90179-10094
9091711037
main90917-11037
9155180825
main91551-80825
9155281025
main91552-81025
9155281070
main91552-81070
9167180612
main91671-80612
9167180620
main91671-80620
9415120641
main94151-20641
9415180600
main94151-80600
9415180800
main94151-80800
43 parts on this diagram · 7 diagrams in section
