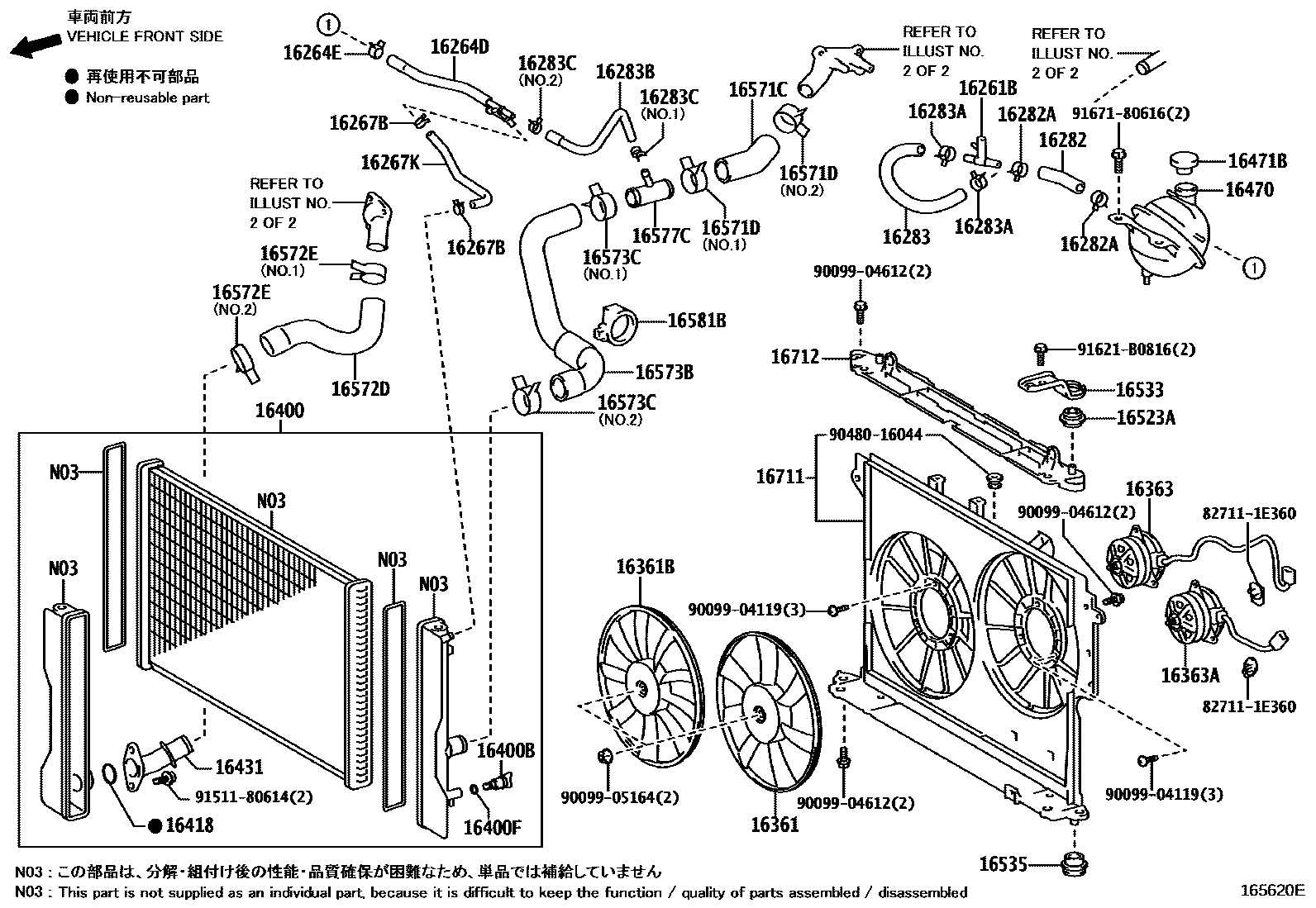

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
(L)
(L)
(J)
(J)
16261BUNION(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
(L)
(L)
(J)
(J)
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
16267HOSE, WATER BY-PASS, NO.3
(L)
(L)
(J)
(J)
16267BCLIP(FOR WATER BY-PASS HOSE)
16267KHOSE, WATER BY-PASS, NO.3
16282HOSE, WATER BY-PASS, NO.5
16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
NO.1
NO.2
(J),NO.2
NO.1
16283HOSE, WATER BY-PASS, NO.6
16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16283BHOSE, WATER BY-PASS
16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16361FAN
main16361-0D201i2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..18G..IDN;1ZR#..ZRE171..PHL,SGP,TH;2ZRFE..ZRE172..CVT..(IDN,MA,VN)201611-202201
MARK = 1-170
MARK = 799
16361BFAN, NO.2
16363MOTOR, COOLING FAN
MARK = 16363-33040
MARK = 16363-33060
16363AMOTOR, COOLING FAN, NO.2
16400RADIATOR ASSY
main16410-0D390i2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..18G..IDN;2ZRFE..ZRE172..CVT..(IDN,MA,VN);1ZR#,2ZRFBE,3ZRFE..ZRE17#..(CVT,MTM)..(GEN,MA,PHL,SGP,TH,VN)201611-202201
16400BPLUG, RADIATOR DRAIN COCK
NO.2
NO.2
main16417-28530i3ZRFE..ZRE173..20V..(MA,PHL);1ZR#,2ZR#..ZRE171,172..ARL,GEN,IDN,MA,PHL,SGP,TH201610-201907
NO.1
16400FPACKING(FOR RADIATOR DRAIN COCK)
NO.1
NO.2
NO.2
16418PACKING
16431INLET, RADIATOR WATER
16470TANK ASSY, RADIATOR RESERVE
main16470-0D050i2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA;1ZR#,2ZRFBE,3ZRFE..ZRE17#..GEN,MA,PHL,SGP,TH,VN201611-202201
16471CAP SUB-ASSY, RESERVE TANK
16471BCAP, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
main16523-0D060×2i2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..RHD..CVT;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);1ZR#,2ZRFBE,3ZRFE..ZRE17#..(CVT,MTM)..(GEN,MA,PHL,PKN,SGP,TH,VN)201611
16533SUPPORT, RADIATOR, UPPER
main16533-0T070×2i2ZRFE..ZRE172..18E..VN;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN);2ZRFE..ZRE172..CVT..(ARL,IDN,MA,PKN);1ZR#,2ZRFBE,3ZRFE..ZRE17#..(CVT,MTM)..(GEN,MA,PHL,PKN,SGP,TH,VN)201611
16535SUPPORT, RADIATOR, LOWER
16571CHOSE, RADIATOR, NO.1
main16571-0T170i1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE..ZRE171,172..ARL,IDN,MA,TH201312-201610
16571DCLIP, RADIATOR HOSE, NO.1
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16573BHOSE, RADIATOR, NO.3
main16573-0D100i1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH201312-201610
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
NO.1
(L),NO.2
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16577CPIPE, RADIATOR
16581CLAMP, HOSE(FOR WATER HOSE)
NO.1
NO.2
NO.3
NO.2
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
main16712-0D150i1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH201312-201610
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009904119
main90099-04119
9009904612
main90099-04612
9009905164
main90099-05164
9048016044
main90480-16044
9151180614
main91511-80614
91621B0816
main91621-B0816
9167180616
main91671-80616
48 parts on this diagram · 26 diagrams in section
