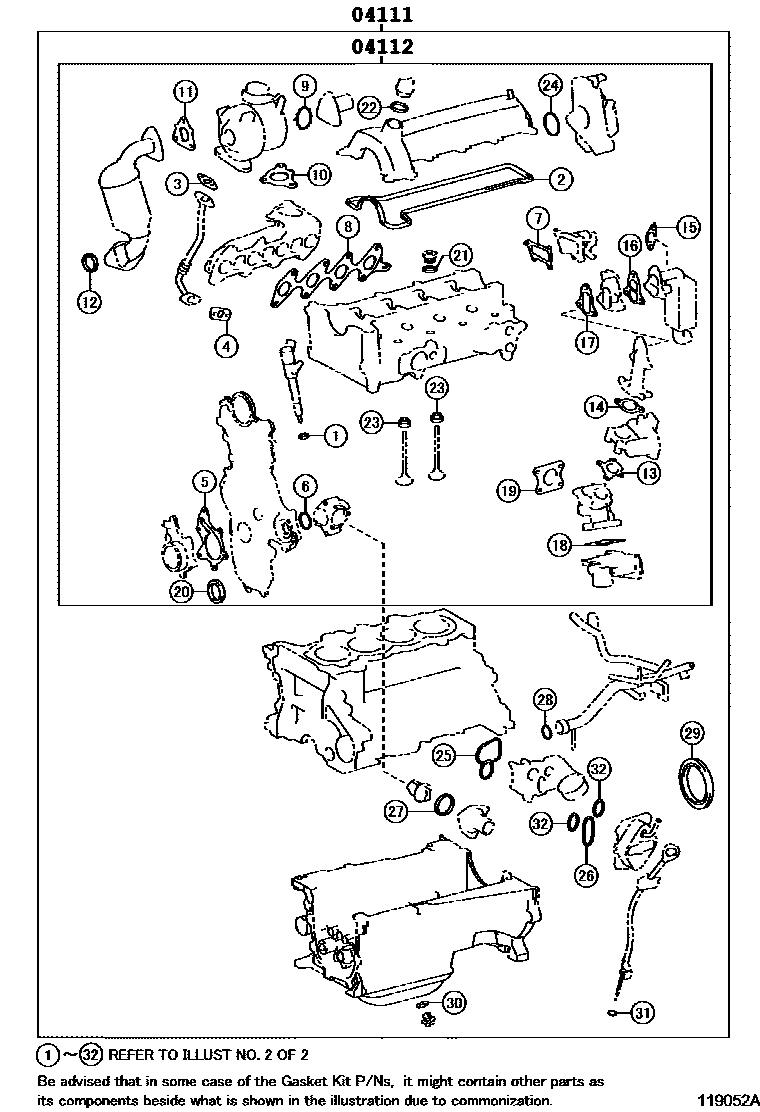

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0011 1 0013 1 0014 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-0T230i1ZR#..ZRE171..CNG201312-201502

main04111-0T231i1ZRFE..ZRE171..CNG201502-201512

main04111-0T232i1ZRF..ZRE171201603-201610

main04111-21371i2NZFE..NZE170201407-201604

main04111-21372i2NZFE..NZE170201604-201707

main04111-22842i1ZZFE..ZZE172..4FC201310-201409

main04111-22912i1ZZFE..ZZE172..5F201310-201409

main04111-30521i1ZRFE..ZRE171202110

main04111-33191i1NDTV..NDE170201405-201407

main04111-33192i1NDTV..NDE170201703-201906

main04111-37096i1ZRFE,2ZRFE..ZRE171,172..HTWC,HTWCF201310-201502

main04111-37097i1ZRFE..ZRE171..4FC..GLI..GCC;1ZRFE..ZRE171..(4FC,6F)..XLI..GCC201502-201512

main04111-37184i3ZRFE..ZRE173201310-201502

main04111-37185i3ZRFE..ZRE173..MA,PHL201502-201610

main04111-37275i1ZRFAE..ZRE171201611-201907

main04111-37510i2ZRFE..ZRE172..18E..VN;1ZRFE,2ZRFE..ZRE171,172..CVT..(PHL,VN);1ZRFBE,2ZR#..ZRE171,172..ARL,IDN,IND,MA,PKN,TAIW,TH201610-202110

main04111-37511i2ZRFE..ZRE172202110

main04111-37520i1ZRFE..ZRE171..4FC,6F;3ZRFE..ZRE173..20G,20V;1ZRFE..ZRE171..CVT..GCC201610-202110

main04111-37530i3ZRFE..ZRE173..GCC201512-201609

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0T210i1ZR#..ZRE171..CNG201312-201502

main04112-0T211i1ZRF..ZRE171201601-201610

main04112-21239i2NZFE..NZE170201407-201604

main04112-21370i2NZFE..NZE170201604-201707

main04112-22690i1ZZFE..ZZE172201310-201409

main04112-33181i1NDTV..NDE170201405-201407

main04112-33182i1NDTV..NDE170201407-201702

main04112-37075i1ZRFE,2ZRFE,3ZRFE..ZRE17#..HTWC,HTWCF201310-201502

main04112-37076i1ZRFE,2ZRFE..ZRE171,172..PKN201502-201707

main04112-37077i1ZRFE,2ZRFE..ZRE17#202110

main04112-37224i1ZRFAE..ZRE171201611-201907

2 parts on this diagram · 12 diagrams in section
