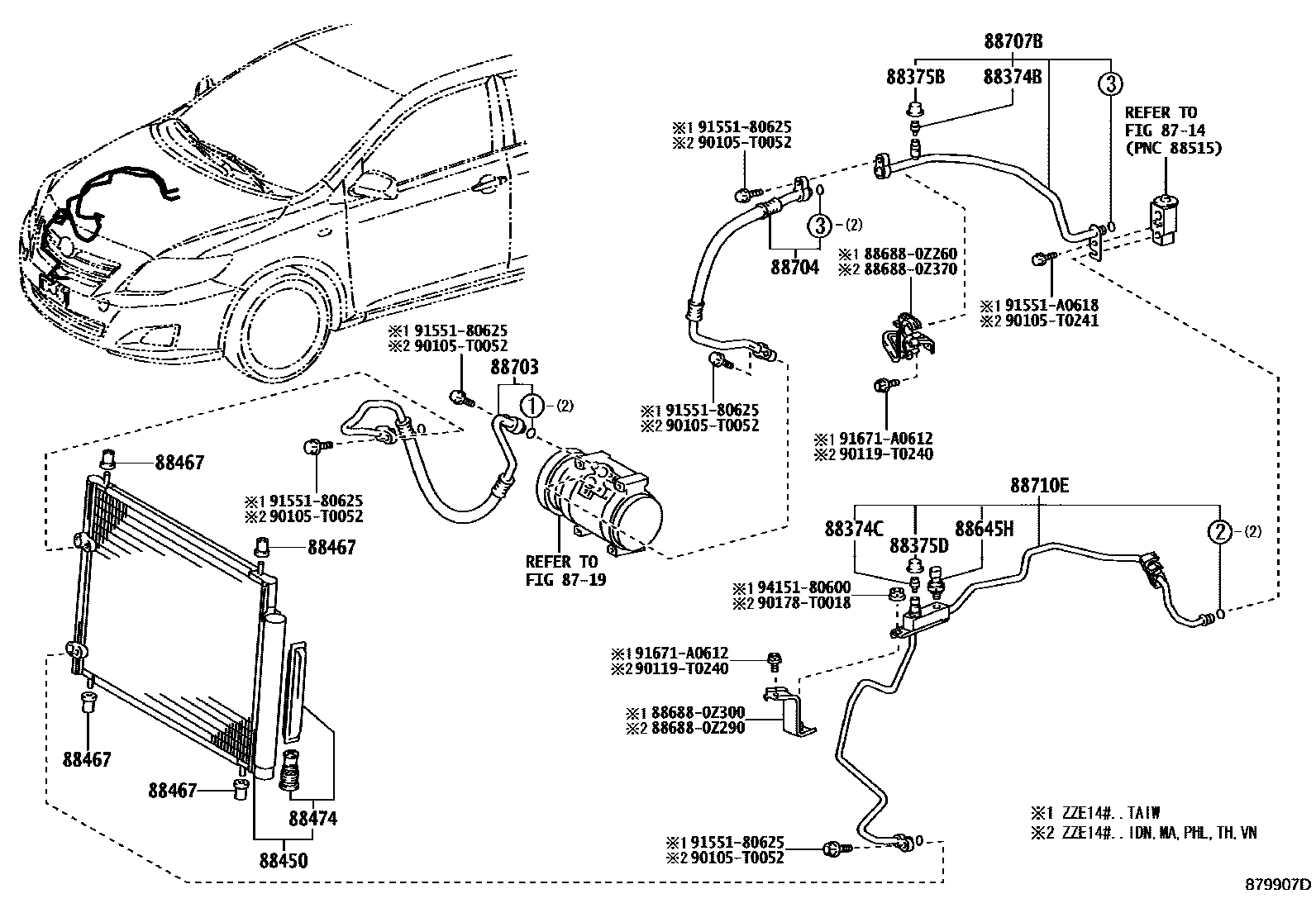

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0011 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

88374CVALVE, SERVICE, NO.2

main88374-30010iZZE14#..(16J,18G,18V)..TAIW200712-200811

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZZE14#..(16J,18G,18V)..TAIW200712-200811

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iZZE14#..(16J,18G,18V)..TAIW200712-200811

88450CONDENSER ASSY, W/RECEIVER

main88450-02350iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008

main88450-02360iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main88450-02370iCE140,NZE140,ZRE141..PKN201104-201406

main88450-02380iNDE140,ZZE142..IND200808-201105

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×4iZZE14#..(16J,18G,18V)..TAIW200712-200811

88474DRYER, COOLER

main88474-17010iZZE14#..(16J,18G,18V)..TAIW200712-200811

88645HSWITCH, PRESSURE NO.1

main88645-60030iZZE14#..IND,PHL,TAIW,VN200712-201105

88703HOSE SUB-ASSY, DISCHARGE

main88703-02490iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

main88703-02491iZZE142..VN201008-201010

main88703-02500iZZE142..(18E,18J)..TAIW200712-201007

main88703-02510iNZE140200808-201011

main88703-02511iNZE140201012-201104

main88703-02520iZZE142..PKN200808

main88703-02530iCE140200808-201011

main88703-02531iCE140201012-201104

main88703-02540iZZE142..IND200808-201105

main88703-02650iZRE143..IDN,PHL,TH200812-201008

main88703-02660iZRE143..TAIW200811-201007

main88703-02700iNDE140201006-201101

main88703-02701iNDE140201102-201105

main88703-02721iZRE141,142..ATM..(16J,18G)..TH201008-201211

main88703-02731iZRE14#..GCC,TAIW201007-201310

main88703-02740iZRE142..IND201105-201312

main88703-02750iZRE141..PKN201104

main88703-02670iZZE14#..GCC200901-201007

AIR CONDITIONER-WITHOUT

88704HOSE SUB-ASSY, SUCTION

main88704-02740iZZE141201008-201311

main88704-02750iZZE14#..(16J,18G,18V)..TAIW200712-200811

main88704-02760iNZE140200808-201104

main88704-02770iZZE142..PKN200808

main88704-02780iCE140200808-201104

main88704-02790iZZE142..IND200808-201105

main88704-02890iZRE143..IDN,PHL,TH200812-201008

main88704-0Z020iZRE143..TAIW201007-201310

main88704-0Z060iNDE140201006-201105

main88704-0Z080iZRE142..IND201105-201312

main88704-0Z090iZRE141..PKN201104

main88704-0Z100iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA,VN);ZRE141,142..(16E,16G,16V,18E,18J)..(IDN,MA,PHL,TH)..HTWC201008

main88704-0Z110iZRE141,142..GCC,TAIW201007-201310

main88704-0Z030iZZE14#..GCC200901-201007

AIR CONDITIONER-WITHOUT

88707BTUBE SUB-ASSY, SUCTION, B

main88707-02080iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,18E,18J,20G,20V,LIMO)..(IDN,MA,TH)..HTWC201008-201311

main88707-02090iZRE141,142..PHL,VN;ZRE143..LHD..CVFC..20V201008

main88707-02100iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main88707-02110iCE140,NZE140,ZRE141..PKN201104

main88707-02120iZZE142..IND200808-201105

main88707-02170iNDE140201006-201105

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-0Z060iZZE141201008-201311

main88710-0Z070iZZE141..PHL200802-201008

main88710-0Z080iZZE14#..(16J,18G,18V)..TAIW200712-200811

main88710-0Z090iNZE140200808-201104

main88710-0Z100iZZE142..PKN200808

main88710-0Z110iZZE142..IND200808-201105

main88710-0Z150iCE140201104

main88710-0Z210iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#..(16E,16G,18E,18J,20G,20V)..(IDN,MA,TH)..HTWC201008-201311

main88710-0Z220iZRE143..PHL200812-201008

main88710-0Z230iZRE143..TAIW200811-201007

main88710-0Z240iZRE141,142..GCC201007-201310

main88710-0Z260iNDE140201006-201105

main88710-0Z280iZRE142..IND201105-201312

886880Z260BRACKET, COOLER DIAPHRAGM

main88688-0Z260

886880Z290BRACKET, COOLER DIAPHRAGM

main88688-0Z290

886880Z300BRACKET, COOLER DIAPHRAGM

main88688-0Z300

886880Z370BRACKET, COOLER DIAPHRAGM

main88688-0Z370

90105T0052

main90105-T0052

90105T0241

main90105-T0241

90119T0240

main90119-T0240

90178T0018

main90178-T0018

9155180625

main91551-80625

91551A0618

main91551-A0618

91671A0612

main91671-A0612

9415180600

main94151-80600

26 parts on this diagram · 10 diagrams in section
