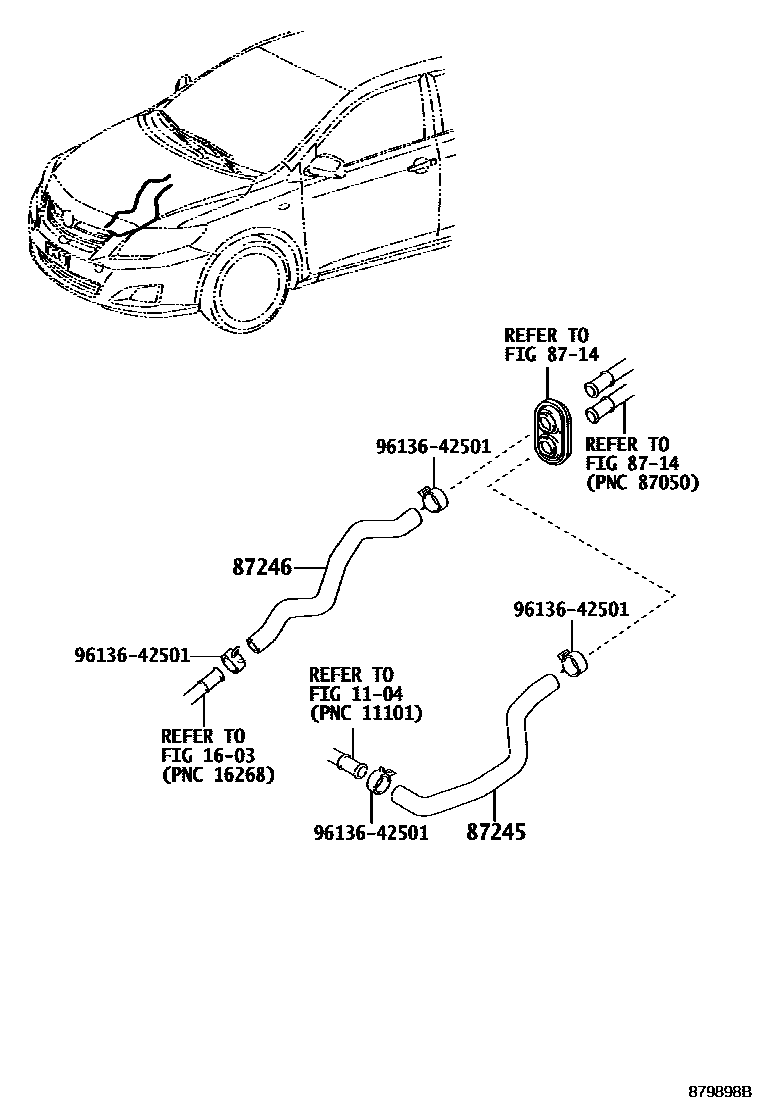

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-02D40iZZE14#..(16J,18G,18V)..TAIW200712-200811

main87245-02D60iZZE142..IND200808

main87245-02D80iNZE140200808-201104

main87245-02E00iZZE142..PKN200808

main87245-02E20iCE140200808-201104

main87245-02E80iZZE142..VN200808-201010

main87245-02F50iZRE143..TAIW200811-201007

main87245-02F70iZRE143..VN200906-201010

main87245-02J50iZRE141,142..GCC,TAIW201007-201310

main87245-02J70iZRE142..IND201105-201312

main87245-02J90iZRE142..VN201010

main87245-02K10iZRE141..PKN201104

main87245-02L51iZRE143..TAIW201007-201310

main87245-02L91iZRE143..VN201010

87246HOSE, HEATER WATER, OUTLET

main87245-02D50iZZE14#..(16J,18G,18V)..TAIW200712-200811

main87245-02D70iZZE142..IND200808

main87245-02D90iNZE140201104

main87245-02E10iZZE142..PKN200808

main87245-02E30iCE140201104

main87245-02E90iZZE142..VN200808-201010

main87245-02F60iZRE143..TAIW200811-201007

main87245-02F80iZRE143..VN200906-201010

main87245-02J60iZRE141,142..GCC201007-201310

main87245-02J80iZRE142..6F..IND201105-201312

main87245-02K00iZRE142..6F..VN201010

main87245-02K20iZRE141..PKN201104

main87245-02L71iZRE142..TAIW201007-201310

main87245-02M11iZRE142..CVFC..VN201010

main87245-02M30iZRE142..CVFC..IND201105-201312

9613642501

main96136-42501

6 parts on this diagram · 7 diagrams in section
