OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1

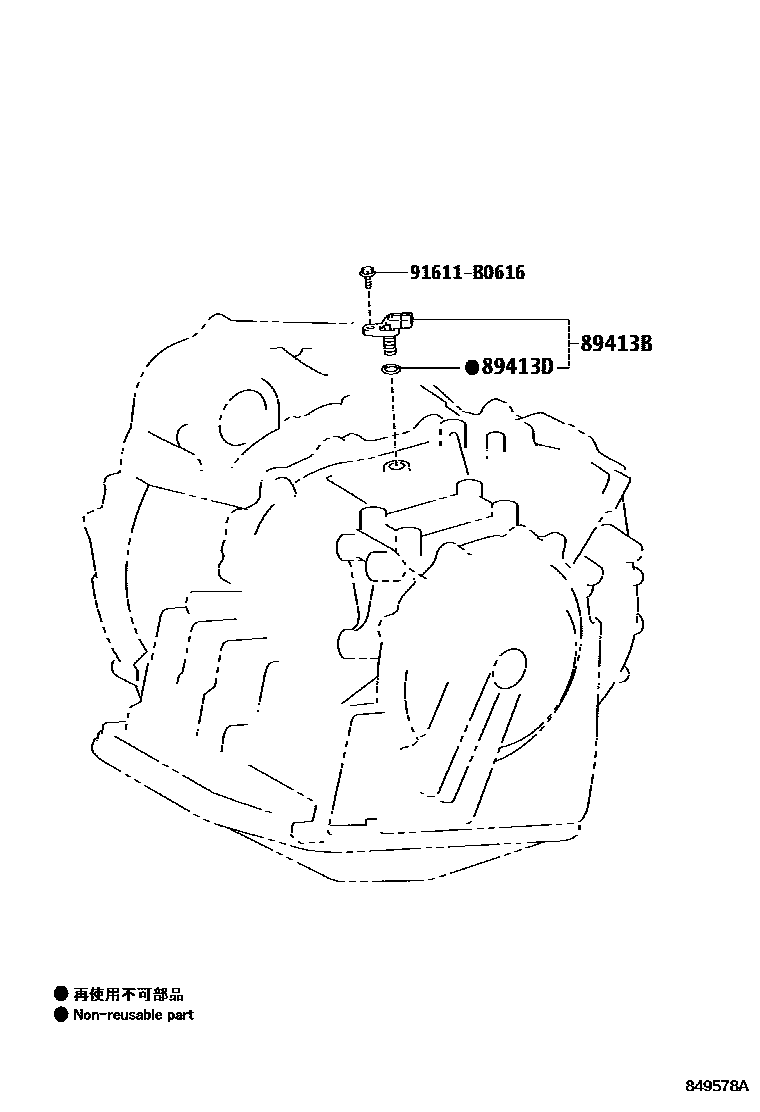

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-12020×2iZRE142..CVFC201007-201407

NO.1

main89413-24010×2iZRE143..IDN,PHL,TH200811-201008

main89413-28010×2iZRE143..CVFC201007-201407

NO.1

main89413-32010iZZE142..4FC..IND200712-201105

main89413-60020iZRE142,143..CVFC201007-201407

NO.2

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iZZE14#..(16J,18G,18V)..TAIW200712-200811

91611B0616

main91611-B0616

3 parts on this diagram · 4 diagrams in section
