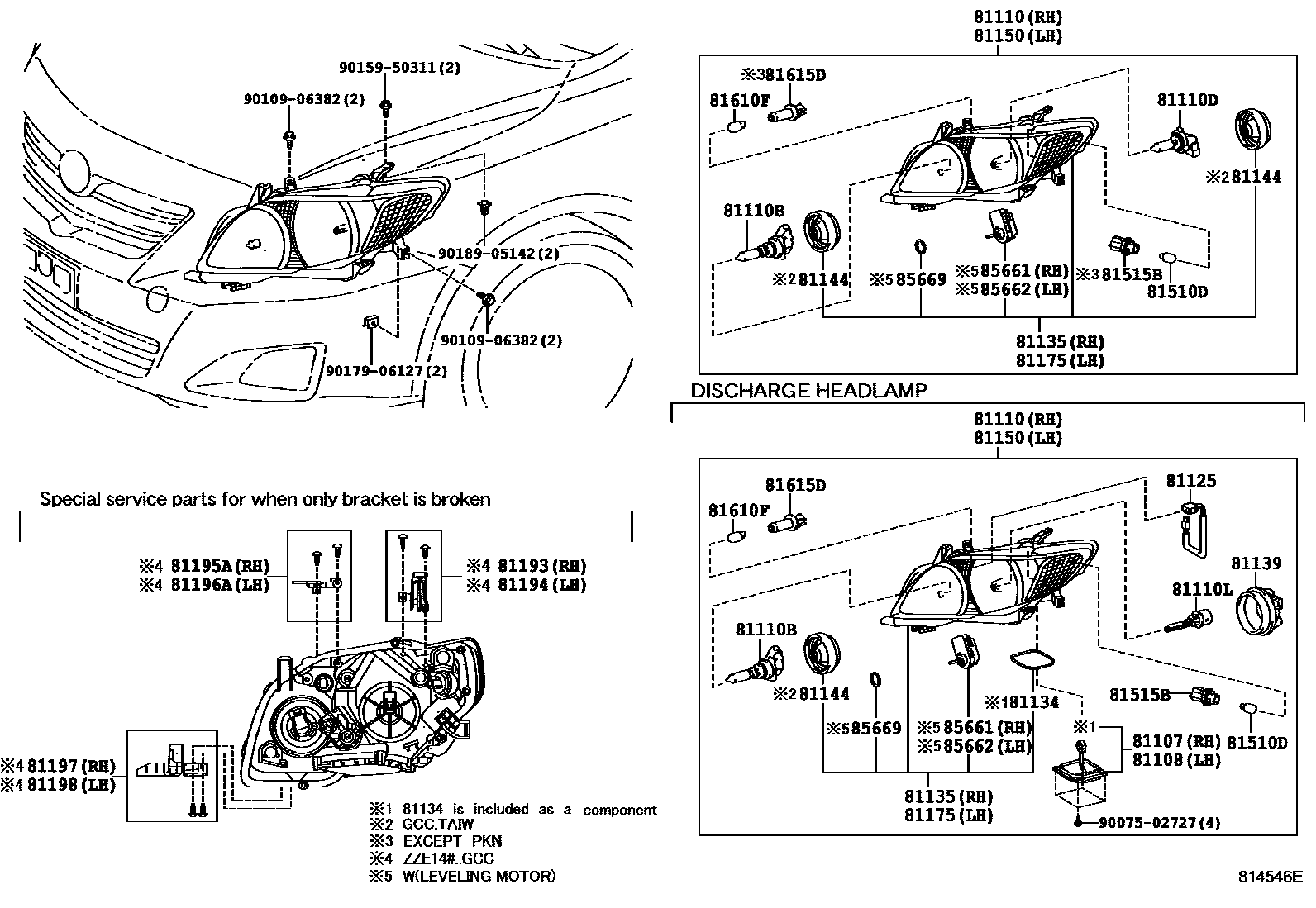

HEADLAMP

0001 1 0006 1HALOGEN HEADLAMP 0008 1HALOGEN HEADLAMP 0011 1DISCHARGE HEADLAMP

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-02770iZZE142..18G..TH;ZZE142..18V..(IDN,PHL)200801-200812

main81107-02771iZRE143..20V..(IDN,PHL,TH); ZZE142..18E201007-201008

SINGAPORE SPEC

main81107-8C006iZRE143,ZZE142..(18E,20E,20G,20V)..TAIW200712-201007

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-02770iZZE142..18G..TH;ZZE142..18V..(IDN,PHL)200801-200812

main81107-02771iZRE143..20G..TAIW;NDE140,ZRE142,143..(6F,CVFC)..(18V,20V,G)..(IND,TAIW,TH)201007-201312

main81107-8C006iZRE143,ZZE142..(18E,20E,20G,20V)..TAIW200712-201007

81110HEADLAMP ASSY, RH

main81110-02710iZZE142..(18J,G)..IND;NDE140,ZZE142..(4FC,6F)..(18G,E)..IND200808-201105

main81110-02720iZZE141..16E..TH; ZZE142..18G..TH200801-200812

GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND)

main81110-02730iZZE141..PHL200802-201008

main81110-02750iZZE142..(18G,18V)..TAIW200712-200811

main81110-02760iZZE141..TAIW200712-200811

main81110-02770iZZE142..18G..TH;ZZE142..18V..IDN200801-200812

main81110-02780iZZE142..PHL200802-200812

main81110-02820iZZE142..5F..18G..IND;NDE140,ZZE142..(4FC,6F)..(18V,G)..IND200808-201105

main81110-02880iZZE142..PKN200808

main81110-02B90iZRE141,142..ATM..(16J,18E,18G)..TH201008-201211

main81110-02C20iZRE141,142..PHL,VN201008

main81110-02C30iZRE143..TAIW201007-201310

main81110-02C70iCE140,NZE140,ZRE141..PKN201104

main81110-02C80iNDE140,ZRE142..18V,G201105-201312

main81110-02D20iZRE142..TAIW201007-201310

main81110-02D50iZRE143..20V..TH201008-201311

main81110-02D60iZRE143..IDN,MA201008-201306

main81110-02D61iZRE143..IDN,MA201307-201311

main81110-02D70iZRE143..LHD..CVFC..20V201008-201306

main81110-02D71iZRE143..LHD..20V201307

main81110-02810iZRE143..20E200811-201007

Z AEROTOURER

main81110-02C60iZRE143..G201007-201310

GRADE MARK : 2.0Z

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13047×2iZRE143,ZZE142..VN200712-201010

12V 51W,HALOGEN

81110LBULB, DISCHARGE HEADLAMP

main90981-20015×2iZZE142..(18G,18V)..TAIW200712-200811

45V 35W

main90981-20029×2iZRE143..20V..(IDN,PHL,TH); ZZE142..18E..TH200902-201008

43V 35W; 43V 35W,SINGAPORE SPEC

81125CORD, HEADLAMP

main81125-02750×2iZRE143..TAIW201007-201310

main81125-02770×2iZRE143..20V..(IDN,PHL,TH); ZZE142..18E..TH200801-201008

SINGAPORE SPEC

81134GASKET, HEADLAMP

main90075-68007iZZE142..(18G,18V)..TAIW200712-200811

81135UNIT ASSY, HEADLAMP, RH

main81130-02710iZZE142..(18J,G)..IND;NDE140,ZZE142..(4FC,6F)..(18G,E)..IND200808-201105

main81130-02720iZZE141..16E..TH; ZZE142..18G..TH200801-200812

GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND)

main81130-02730iZRE143,ZZE142..VN200802-201010

main81130-02760iZZE141..TAIW200712-200811

main81130-02770iZRE143..IDN200801-201008

main81130-02780iZRE143..PHL200802-201008

main81130-02B90iZRE141,142..ATM..(16J,18E,18G)..TH201008-201211

main81130-02C20iZRE141,142..PHL,VN201008

main81130-02D00iNDE140,ZRE142..(18G,18J,E)..IND201105-201312

main81130-02D20supersedes 81130-02D40iZRE141,142..GCC; ZRE142..TAIW201007-201310

HEAD LAMP LEVELING DEVICE-WITH(MANUAL)

main81145-02750iZRE143,ZZE142..(18E,20E,20G,20V)..TAIW200712-201007

main81145-02820iZRE143..20V..TH200808-201008

main81145-02C30iZRE143..TAIW201007-201310

main81145-02C80iNDE140,ZRE142..18V,G201105-201312

main81145-02D50iZRE143..20V..TH201008-201311

main81145-02D60iZRE143..IDN,MA201008-201307

main81145-02D61iZRE143..IDN,MA201307-201311

main81145-02D70iZRE143..LHD..CVFC..20V201008-201307

main81145-02D71iZRE143..LHD..20V201307

main81130-02A00supersedes 81130-02A10iZZE14#..GCC200901-201007

HEAD LAMP LEVELING DEVICE-WITH(MANUAL)

main81145-02810iZZE142..18E..TAIW200912-201007

GRADE MARK-Z

main81145-02C60iZRE143..G201007-201310

GRADE MARK : 2.0Z

81139COVER, HEADLAMP SOCKET

main90075-66003×2iZZE142..(18G,18V)..TAIW200712-200811

81144COVER, HEADLAMP, NO.1

main81139-06241×4iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..IDN,MA,VN;ZRE141,143,ZZE141..(16E,16G,16V,20G,LIMO)..(MA,PHL,TH)201008

main90075-65006×4iZZE141..TAIW; ZZE142..(18G,18V)..TAIW200712-200811

81150HEADLAMP ASSY, LH

main81150-02710iZZE142..(18J,G)..IND;NDE140,ZZE142..(4FC,6F)..(18G,E)..IND200808-201105

main81150-02720iZZE14#..(16E,18G)..(IDN,MA);ZRE143,ZZE14#..(16G,16J,18E,18J,20G,LIMO)..(IDN,TH)200801-201008

main81150-02730iZRE143,ZZE142..VN200802-201010

main81150-02750iZRE143,ZZE142..(18E,20E,20G,20V)..TAIW200712-201007

main81150-02760iZZE142..18J..TAIW200712-201007

main81150-02770iZZE142..18G..TH;ZZE142..18V..IDN200801-200812

main81150-02780iZRE143..PHL200802-201008

main81150-02820iZRE143..20V..TH200808-201008

main81150-02880iCE140,NZE140200808-201104

main81150-02B90iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..IDN,MA;ZRE141,143,ZZE141..RHD..(16E,16G,20G,LIMO)201008-201311

main81150-02C20iZRE141,142..PHL,VN201008

main81150-02C30iZRE143..TAIW201007-201310

main81150-02C70iCE140,NZE140,ZRE141..PKN201104

main81150-02C80iNDE140,ZRE142..18V,G201105-201312

main81150-02D20iZRE142..TAIW201007-201310

main81150-02D50iZRE143..20V..TH201008-201311

main81150-02D60iZRE143..IDN,MA201008-201306

main81150-02D61iZRE143..IDN,MA201307-201311

main81150-02D70iZRE143..LHD..CVFC..20V201008-201306

main81150-02D71iZRE143..LHD..20V201307

main81150-02810iZZE142..18E..TAIW200912-201007

GRADE MARK-Z

main81150-02C60iZRE143..G201007-201310

GRADE MARK : 2.0Z

81175UNIT ASSY, HEADLAMP, LH

main81170-02710iZZE142..(18J,G)..IND;NDE140,ZZE142..(4FC,6F)..(18G,E)..IND200808-201105

main81170-02720iZZE141..16E..TH; ZZE142..18G..TH200801-200812

GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND)

main81170-02730iZZE141..PHL200802-201008

main81170-02760iZZE142..18J..TAIW200712-201007

main81170-02770iZRE143..IDN200801-201008

main81170-02780iZZE142..PHL200802-200812

main81170-02B90iZRE141,142..ATM..(16J,18E,18G)..TH201008-201211

main81170-02C20iZRE141,142..PHL,VN201008

main81170-02D00iNDE140,ZRE142..(18G,18J,E)..IND201105-201312

main81170-02D20supersedes 81170-02D40iZRE141,142..GCC; ZRE142..TAIW201007-201310

HEAD LAMP LEVELING DEVICE-WITH(MANUAL)

main81185-02750iZRE143,ZZE142..(18E,20E,20G,20V)..TAIW200712-201007

main81185-02820iZZE142..5F..18G..IND;NDE140,ZZE142..(4FC,6F)..(18V,G)..IND200808-201105

main81185-02C30iZRE143..TAIW201007-201310

main81185-02C80iNDE140,ZRE142..18V,G201105-201312

main81185-02D50iZRE143..20V..TH201008-201311

main81185-02D60iZRE143..IDN,MA201008-201307

main81185-02D61iZRE143..IDN,MA201307-201311

main81185-02D70iZRE143..LHD..CVFC..20V201008-201307

main81185-02D71iZRE143..LHD..20V201307

main81170-02A00supersedes 81170-02A10iZZE14#..GCC200901-201007

HEAD LAMP LEVELING DEVICE-WITH(MANUAL)

main81185-02810iZZE142..18E..TAIW200712-200811

Z AEROTOURER

main81185-02C60iZRE143..G201007-201310

GRADE MARK : 2.0Z

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12050iZZE14#..GCC200901-201007

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12050iZZE14#..GCC200901-201007

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-12060iZZE14#..GCC200901-201007

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-12060iZZE14#..GCC200901-201007

81197BRACKET, HEADLAMP, LOWER RH

main81197-12060iZZE14#..GCC200901-201007

81198BRACKET, HEADLAMP, LWR LH

main81198-12060iZZE14#..GCC200901-201007

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iZZE14#..(16J,18G,18V)..TAIW200712-200811

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iZZE14#..(16J,18G,18V)..TAIW200712-200811

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iCE140,NZE140200712-201104

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

85661MOTOR, HEADLAMP LEVELING, RH

main85661-0K010iNDE140,ZRE142..(18G,18J,E)..IND201203

main85661-0P010iZZE141..TAIW200712-200811

main85661-12010iZZE14#..GCC; ZZE142..18J..TAIW201002-201007

HEAD LAMP LEVELING DEVICE-WITH(MANUAL)

main85661-12020iZRE143..TAIW201007-201310

85662MOTOR, HEADLAMP LEVELING, LH

main85661-0K010iNDE140,ZRE142..(18G,18J,E)..IND201203

main85661-0P010iNDE140,ZRE142..(18G,18J,E)..IND201105-201203

main85661-12010iZZE141..TAIW200712-200811

main85661-12020iZRE143,ZZE142..(18E,20E,20G,20V)..TAIW200712-201007

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iZZE14#..(16J,18G,18V)..TAIW200712-200811

9007502727

main90075-02727

9010906382

main90109-06382

9015950311

main90159-50311

9017906127

main90179-06127

9018905142

main90189-05142

31 parts on this diagram · 4 diagrams in section
