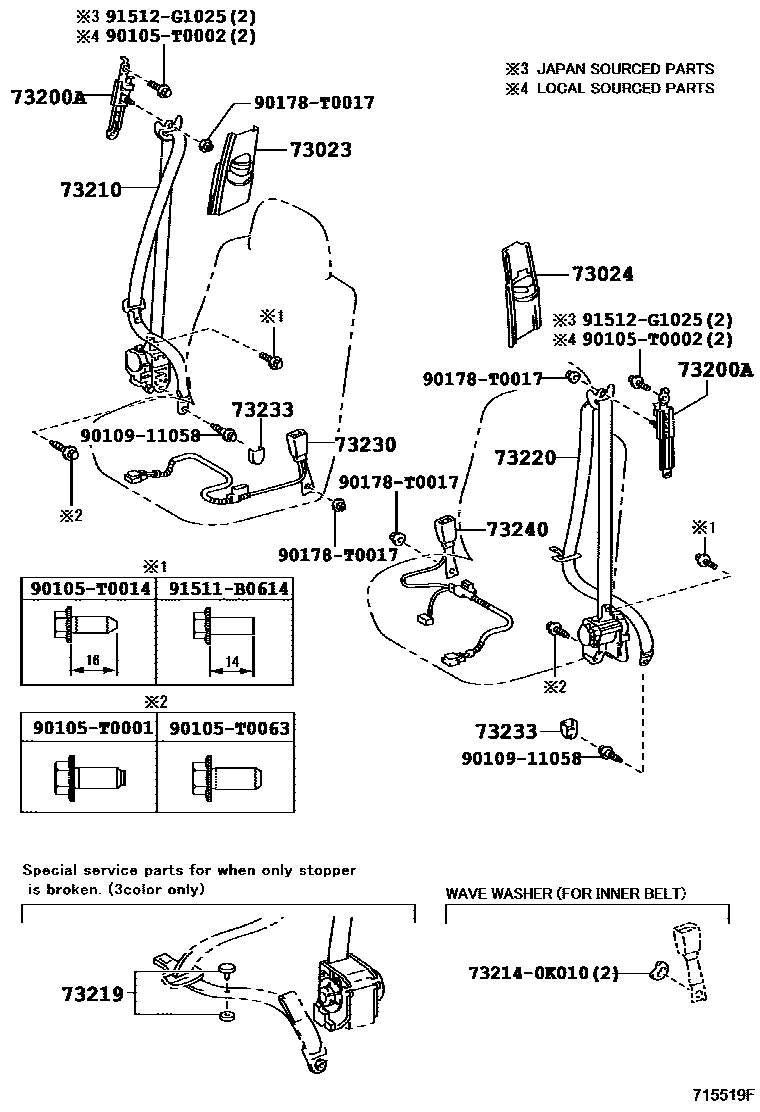

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1FRONT SEAT BELT 0003 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06040-B1iZZE142..PHL200801-200812

LT.GRAY,TRIM1#

main73023-06040-E0iCE140,ZRE141..16V,20D,20DSA;ZRE143..CVFC..(IDN,MA,PHL,TH,VN);NDE140,NZE140,ZRE141,142,ZZE141..(16E,16G,18E,18EL,18G,18J,18V,D,E,G,GLI,N,XLI)..(IDN,IND,MA,PKN,TH,VN)201008-201407

GREGE,TRIM4#

main73023-06120-B1iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

LT.GRAY,TRIM1#

main73023-06120-E0iZZE14#..(16J,18G,18V)..TAIW200712-200811

GREGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06040-B1iZZE141..(16J,LIMO)..TH;ZZE14#..(16E,16G,18G)..(MA,PHL)200801-201008

LT.GRAY,TRIM1#

main73024-06040-E0iZZE141..RHD..4FC..(16E,16G);ZRE143,ZZE14#..(16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)200801-201008

GREGE,TRIM4#

main73024-06100-B1iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

LT.GRAY,TRIM1#

main73024-06100-E0iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

GREGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02140×2iCE140,NDE140,NZE140,ZRE14#,ZZE141..IDN,IND,MA,PHL,PKN,TH,VN201309

main73200-06060×2iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main73200-12070×2iNDE140,ZRE142..IND201212-201308

main73200-53010×2iZRE143..CVFC..VN;CE140,NZE140,ZRE141,142..PKN,VN201008-201206

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02300-B0iZRE143,ZZE142..TAIW200811-201007

DK.GRAY,TRIM12

main73210-02300-B1iZZE14#..GCC200901-201007

GRAY,TRIM1#

main73210-02300-B2iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main73210-02300-E0iZRE143,ZZE14#..GCC,TAIW200811-201007

GREGE,TRIM4#

main73210-02360-B2iZRE142,143..MA,TH201008-201201

DK.GRAY,TRIM1#

main73210-02360-E0iZRE14#..(16E,16G,18E,18G,18J,20G,20V)..(IDN,MA,TH)201008-201201

GREGE,TRIM4#

main73210-02361-B2iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201202-201311

DK.GRAY,TRIM1#

main73210-02361-E0iZRE143..IDN,MA;ZRE141,142..(16E,16G,18E,18EL,18G,18J)..(IDN,MA,TH)201202-201311

GREGE,TRIM4#

main73210-02370-B1supersedes 73210-02380-B1iZRE141..16G..PHL;ZRE141,ZZE141..(16E,16J,LIMO)..(PHL,TH)201008-201201

GRAY,TRIM1#

main73210-02371-B1supersedes 73210-02361-B1iZRE141..16G..PHL;ZRE141,ZZE141..(16E,16J,LIMO)..(PHL,TH)201202-201211

GRAY,TRIM1#

main73210-02380-E0iZZE142..PHL200802-200812

GREGE,TRIM4#

main73210-02381-B1iZRE141..(16E,16G)..PHL201211-201311

GRAY,TRIM1#

main73210-02381-E0iZRE14#..LHD..(16V,18G,20V)201202-201407

GREGE,TRIM4#

main73210-02390-B1iZZE14#..(16J,18G,18J,18V)..TAIW; ZZE142..18E..TAIW200712-200811

GRAY,TRIM1#; GRAY,TRIM11

main73210-02390-B2iZZE142..18E..TAIW200712-200811

DK.GRAY,TRIM12

main73210-02390-E0iZZE14#..TAIW200712-200811

GREGE,TRIM4#

main73210-02400-E0iZZE142..PKN200808

GREGE,TRIM4#

main73210-02410-E0iCE140,NZE140,ZRE141..(20D,D,GLI,XLI)..PKN201104-201406

GREGE,TRIM4#

main73210-02420-E0iNDE140,ZZE142..(18G,18V,E,G)..IND200808-201105

GREGE,TRIM4#

main73210-02421-E0iZRE142..18J..IND201301-201312

GREGE,TRIM4#

main73210-02430-E0iZRE142..18J..IND201105-201301

GREGE,TRIM4#

main73210-02370-E0iZRE141..16G..TH; ZZE141..16G201008-201201

GREGE,TRIM4#; SRS AIR BAG-WITHOUT,GREGE,TRIM4#

main73210-02371-E0iZRE141..16G..TH; ZZE141..16G201202-201211

GREGE,TRIM4#; SRS AIR BAG-WITHOUT,GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

BLACK

main73219-33020iNDE140,ZZE142..IND200712-201105

GRAY

main73219-33030iZZE14#..(16J,18G,18V)..TAIW200712-200811

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02280-B0iZRE143,ZZE142..TAIW200811-201007

DK.GRAY,TRIM12

main73220-02280-B1iZRE141,142..ATM..(18J,GLI,XLI)201007-201310

GRAY,TRIM1#

main73220-02280-B2iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main73220-02280-E0iZRE143,ZZE14#..GCC,TAIW200811-201007

GREGE,TRIM4#

main73220-02330-B2iZRE142,143..MA,TH201008-201201

DK.GRAY,TRIM1#

main73220-02330-E0iZZE142..(18E,18G,18J)..(IDN,MA,TH);ZRE143,ZZE141..RHD..4FC..(16E,16G,20G,20V)200801-201008

GREGE,TRIM4#

main73220-02331-B2iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201202-201311

DK.GRAY,TRIM1#

main73220-02331-E0iZRE143..IDN,MA;ZRE141,142..(16E,16G,18E,18EL,18G,18J)..(IDN,MA,TH)201202-201311

GREGE,TRIM4#

main73220-02340-B1supersedes 73220-02330-B1iZRE141,ZZE141..16J,LIMO201008-201201

GRAY,TRIM1#

main73220-02341-B1supersedes 73220-02331-B1iZRE141,ZZE141..16J,LIMO201202-201211

GRAY,TRIM1#

main73220-02350-B1iZZE141..(16E,16G)..PHL200802-201008

GRAY,TRIM1#

main73220-02350-E0iZRE143..LHD..CVFC..20V;ZRE141,142..LHD..(16V,18G)201008-201201

GREGE,TRIM4#

main73220-02351-B1iZRE141..(16E,16G)..PHL201202-201311

GRAY,TRIM1#

main73220-02351-E0iZRE14#..LHD..(16V,18G,20V)201202-201407

GREGE,TRIM4#

main73220-02360-B1iZZE14#..(16J,18G,18J,18V)..TAIW; ZZE142..18E..TAIW200712-200811

GRAY,TRIM1#; GRAY,TRIM11

main73220-02360-B2iZZE142..18E..TAIW200712-200811

DK.GRAY,TRIM12

main73220-02360-E0iZZE14#..TAIW200712-200811

GREGE,TRIM4#

main73220-02370-E0iCE140,NZE140,ZRE141..PKN201104-201406

GREGE,TRIM4#

main73220-02380-E0iNDE140,ZRE142..(18G,18V,E,G)..IND201105-201206

GREGE,TRIM4#

main73220-02381-E0iZRE142..18J..IND201301-201312

GREGE,TRIM4#

main73220-02390-E0iZRE142..18J..IND201105-201301

GREGE,TRIM4#

main73220-02340-E0iZRE141..16G..TH; ZZE141..16G201008-201201

GREGE,TRIM4#; SRS AIR BAG-WITHOUT,GREGE,TRIM4#

main73220-02341-E0iZRE141..16G..TH; ZZE141..16G201202-201211

GREGE,TRIM4#; SRS AIR BAG-WITHOUT,GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02340-B0iZRE142..MA;ZRE143..20V..(MA,TH)201008-201311

DK.GRAY,TRIM1#

main73230-02340-E0supersedes 73230-02440-E0iZZE142..18G..TH;ZZE142..18V..IDN200801-200812

GREGE,TRIM4#

main73230-02440-B1iZZE141..(16J,LIMO)..TH200801-201008

GRAY,TRIM1#

main73230-02440-B2iZRE142..18E..TH201008-201211

DK.GRAY,TRIM1#

main73230-02440-E0iZZE142..18G..IDN;ZZE142..(18E,18J)..(IDN,TH);ZZE141..RHD..4FC..(16E,16G); ZZE142..MA200801-201008

GRADE MARK : 1.6E OR 1.8E(TAIWAN),GREGE,TRIM4#; GREGE,TRIM4#

main73230-02470-B1iZZE142..(18G,18V)..TAIW200712-200811

GRAY,TRIM1#

main73230-02470-B2iZZE142..(18G,18V)..TAIW200712-200811

DK.GRAY,TRIM12

main73230-02470-E0iZZE142..(18G,18V)..TAIW200712-200811

GREGE,TRIM4#

main73230-02480-E0iZZE142..PKN200808

GREGE,TRIM4#

main73230-02510-E0iNDE140;ZRE142..(18G,18J,E)..IND201105-201312

GREGE,TRIM4#

main73230-02570-E0iZZE142..18V..IND;ZZE142..5F..18G..IND200808-201105

GREGE,TRIM4#

main73230-02610-B0iZZE14#..GCC200901-201007

GRAY,TRIM1#

main73230-02610-E0iZRE141,142..GCC201007-201310

GREGE,TRIM4#

main73230-06210-B1iZRE141..(16E,16G)..PHL201008-201311

GRAY,TRIM1#

main73230-06210-E0iZRE143,ZZE142..VN200802-201010

GREGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-06020-B1×2iZRE143,ZZE142..(18E,20E,20G,20V)..TAIW200712-201007

DK.GRAY,TRIM12

main73233-06020-B3×2iZZE14#..(16J,18G,18J,18V)..TAIW200712-200811

GRAY,TRIM1#

main73233-06020-E0×2iZZE14#..(16J,18G,18V)..TAIW200712-200811

GREGE,TRIM4#

main73233-33010-B8×2iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

main73233-33010-E6×2iNDE140,ZZE142..IND200801-201105

GREGE,TRIM4#

main73233-33010-P3×2iZZE141..(16J,LIMO)..TH;ZZE141..(16E,16G)..PHL200801-201008

GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02340-E0iZRE143,ZZE142..PHL200802-201008

GREGE,TRIM4#

main73230-02440-B1iZRE141..(16E,16G)..PHL201008-201311

GRAY,TRIM1#

main73230-02440-E0iZRE141,142..(4FC,6F)..(16V,18G)201008-201407

GREGE,TRIM4#

main73230-02460-B1iZZE141..TAIW; ZZE142..18E..TAIW200712-200811

GRADE MARK : 1.6E OR 1.8E(TAIWAN),GRAY,TRIM11; GRAY,TRIM1#

main73230-02460-B2iZRE143,ZZE142..(18J,20E)..TAIW200712-201007

DK.GRAY,TRIM12

main73230-02460-E0iZRE142,143..(18E,G)..TAIW201007-201310

GREGE,TRIM4#

main73230-02500-E0iCE140,NZE140,ZZE142..PKN200808-201104

GREGE,TRIM4#

main73230-02520-E0iNDE140,ZZE142..IND200808-201105

GREGE,TRIM4#

main73230-02560-B0iZRE143..20G..TAIW201007-201310

DK.GRAY,TRIM1#

main73230-02560-B1iZZE142..(18E,18G,18V)..TAIW200712-200811

GRAY,TRIM11

main73230-02560-E0iZZE142..(18E,18G,18V)..TAIW200712-200811

GREGE,TRIM4#

main73230-02620-B0iZZE14#..GCC200901-201007

GRAY,TRIM1#

main73230-02620-E0iZRE141,142..GCC201007-201310

GREGE,TRIM4#

main73230-06210-B0iZRE142..(18E,18G)..HTWCF;ZRE142,143..(18G,20G,20V)..(MA,TH)..HTWC201008-201311

DK.GRAY,TRIM1#

main73230-06210-B1iZZE141..(16J,LIMO)..TH200801-201008

GRAY,TRIM1#

main73230-06210-E0iZZE142..(18E,18G,18J)..(IDN,MA,TH);ZRE143,ZZE141..RHD..4FC..(16E,16G,20V)200801-201008

GREGE,TRIM4#

732140K010PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010

90105T0001

main90105-T0001

90105T0002

main90105-T0002

90105T0014

main90105-T0014

90105T0063

main90105-T0063

9010911058

main90109-11058

90178T0017

main90178-T0017

91511B0614

main91511-B0614

91512G1025

main91512-G1025

18 parts on this diagram · 3 diagrams in section
