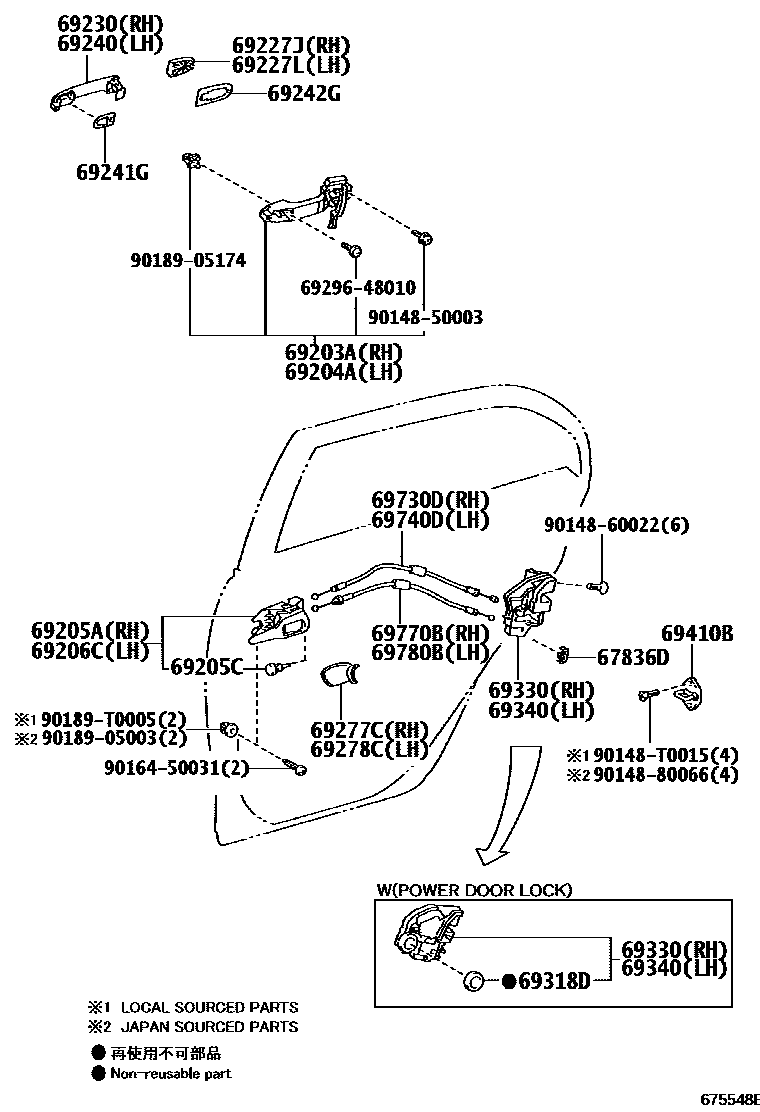

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
(L)
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-02160iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,LIMO)..(IDN,MA,PHL,TH)..HTWC200801-201211
(L)
(J)
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
GRAY,TRIM1#
GRAY,TRIM11
DK.GRAY,TRIM12
GREGE,TRIM4#
SILVER,TRIM1#,4#
ORNAMENT SILVER,TRIM1#,4#
SILVER,TRIM4#
main69205-12220-B6iZRE143..CVFC..(IDN,PHL,VN);NDE140,ZRE141,142..(16V,18G,18V,E,G)..(IDN,IND,PHL,VN)201008-201407
ORNAMENT SILVER,TRIM4#
ORNAMENT SILVER,TRIM1#,4#
GRAY,TRIM1#
GREGE,TRIM4#
GRADE MARK : 1.6E OR 1.8E,GREGE,TRIM4#
GRADE MARK : 1.6E OR 1.8E(TAIWAN),GREGE,TRIM4#
SINGAPORE SPEC,GREGE,TRIM4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
GRAY,TRIM1#
GRAY,TRIM11
DK.GRAY,TRIM12
GREGE,TRIM4#
SILVER,TRIM1#,4#
ORNAMENT SILVER,TRIM1#,4#
SILVER,TRIM4#
ORNAMENT SILVER,TRIM1#,4#
main69206-12220-B6iZRE143..CVFC..(IDN,PHL,VN);NDE140,ZRE141,142..(16V,18G,18V,E,G)..(IDN,IND,PHL,VN)201008-201407
ORNAMENT SILVER,TRIM4#
GRAY,TRIM1#
GRADE MARK : 1.6E OR 1.8E(TAIWAN),GREGE,TRIM4#
SINGAPORE SPEC,GREGE,TRIM4#
GREGE,TRIM4#
GRADE MARK : 1.6E OR 1.8E,GREGE,TRIM4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
BLACK
LESS COLOR,Z AEROTOURER
LESS COLOR
LESS COLOR,WIRELESS DOOR LOCK-WITH(W/O PANIC BUTTON)&DOOR OUTSIDE HANDLE-BODY COLOR
LESS COLOR,DOOR OUTSIDE HANDLE-BODY COLOR
*CR
LESS COLOR
main69227-06906iZRE142..HTWCF;ZRE142..IDN,VN;ZRE141,ZZE141..16E,16G,16V;ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,PHL,TH,VN)201008-201211
LESS COLOR,*299
LESS COLOR,GRADE MARK : 1.6E OR 1.8E(TAIWAN)
BLACK MATERIAL
*CR
LESS COLOR
LESS COLOR,GRADE MARK : J
BLACK MATERIAL
LESS COLOR
main69227-42901iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..IDN,VN;ZRE141..16E,16G,16V;ZRE143,ZZE141..ATM..(IDN,PHL,TH,VN)201112-201211
LESS COLOR,*300
LESS COLOR,GRADE MARK : J,*300
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
BLACK
LESS COLOR,WIRELESS DOOR LOCK-WITH(W/O PANIC BUTTON)&DOOR OUTSIDE HANDLE-BODY COLOR
LESS COLOR
LESS COLOR,Z AEROTOURER
LESS COLOR,DOOR OUTSIDE HANDLE-BODY COLOR
*CR
LESS COLOR
LESS COLOR,*299
main69227-06906iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,PHL,TH)200801-201008
LESS COLOR,GRADE MARK : 1.6E OR 1.8E(TAIWAN)
BLACK MATERIAL
*CR
LESS COLOR
LESS COLOR,GRADE MARK : J
BLACK MATERIAL
main69227-42901iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..IDN,VN;ZRE141..16E,16G,16V;ZRE143,ZZE141..ATM..(IDN,PHL,TH,VN)201112-201211
LESS COLOR,*300
LESS COLOR,GRADE MARK : J,*300
LESS COLOR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATED
PLATED,SINGAPORE SPEC
SUPER WHITE 2,040
GRAY ME.,1G3
SILVER ME.,1D4
SILVER ME.,1F7
BLACK MC.,209
DOOR OUTSIDE HANDLE-BODY COLOR,WITH(PASSENGER KEY CYLINDER),RED M.M.,3R3
WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,WITH(PASSENGER KEY CYLINDER),RED M.M.,3R3
RED M.M.,3R3
TURQUOISE M.M.,776
WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,WITH(PASSENGER KEY CYLINDER),TURQUOISE M.M.,779
DOOR OUTSIDE HANDLE-BODY COLOR,WITH(PASSENGER KEY CYLINDER),TURQUOISE M.M.,779
TURQUOISE M.M.,779
BLUE ME.,8T7
LT.BLUE M.M.,8S1
WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,WITH(PASSENGER KEY CYLINDER),LT.BLUE M.M.,8S1
DOOR OUTSIDE HANDLE-BODY COLOR,WITH(PASSENGER KEY CYLINDER),LT.BLUE M.M.,8S1
PAINT REQ.
main69210-06905iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,PHL,TH)200801-201008
PAINT REQ.,GRADE MARK : 1.6E OR 1.8E(TAIWAN)
PAINT REQ.,*299
PAINT REQ.
PAINT REQ.,DOOR OUTSIDE HANDLE-BODY COLOR
PAINT REQ.,WIRELESS DOOR LOCK-WITH(W/O PANIC BUTTON)&DOOR OUTSIDE HANDLE-BODY COLOR
PLATED
PAINT REQ.
PAINT REQ.,GRADE MARK : J
NO PAINT REQ.
NO PAINT REQ.
main69211-12903iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..IDN,VN;ZRE141..16E,16G,16V;ZRE143,ZZE141..ATM..(IDN,PHL,TH,VN)201112-201211
PAINT REQ.,*300
PAINT REQ.
PAINT REQ.,GRADE MARK : J,*300
NO PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATED
PLATED,SINGAPORE SPEC
SUPER WHITE 2,040
GRAY ME.,1G3
SILVER ME.,1D4
SILVER ME.,1F7
BLACK MC.,209
DOOR OUTSIDE HANDLE-BODY COLOR,WITH(PASSENGER KEY CYLINDER),RED M.M.,3R3
RED M.M.,3R3
WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,WITH(PASSENGER KEY CYLINDER),RED M.M.,3R3
TURQUOISE M.M.,776
WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,WITH(PASSENGER KEY CYLINDER),TURQUOISE M.M.,779
DOOR OUTSIDE HANDLE-BODY COLOR,WITH(PASSENGER KEY CYLINDER),TURQUOISE M.M.,779
TURQUOISE M.M.,779
BLUE ME.,8T7
DOOR OUTSIDE HANDLE-BODY COLOR,WITH(PASSENGER KEY CYLINDER),LT.BLUE M.M.,8S1
LT.BLUE M.M.,8S1
WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,WITH(PASSENGER KEY CYLINDER),LT.BLUE M.M.,8S1
PAINT REQ.
PAINT REQ.,GRADE MARK : 1.6E OR 1.8E(TAIWAN)
main69210-06905iZRE142..HTWCF;ZRE142..IDN,VN;ZRE141,ZZE141..16E,16G,16V;ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,PHL,TH,VN)201008-201211
PAINT REQ.,*299
PAINT REQ.,WIRELESS DOOR LOCK-WITH(W/O PANIC BUTTON)&DOOR OUTSIDE HANDLE-BODY COLOR
PAINT REQ.
PAINT REQ.,DOOR OUTSIDE HANDLE-BODY COLOR
PLATED
PAINT REQ.
PAINT REQ.,GRADE MARK : J
NO PAINT REQ.
NO PAINT REQ.
main69211-12903iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..IDN,VN;ZRE141..16E,16G,16V;ZRE143,ZZE141..ATM..(IDN,PHL,TH,VN)201112-201211
PAINT REQ.,*300
PAINT REQ.,GRADE MARK : J,*300
PAINT REQ.
NO PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
(L)
(J)
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69242-06020iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201207
(L)
SINGAPORE SPEC
(J)
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
GREGE,TRIM4#
GRAY,TRIM12
sub69277-02150
main69277-02150-E0iZRE143..CVFC..VN;NDE140,ZRE142..(18G,18J,18V,E,G)..(IND,TH,VN)..(DCR,HTWC)200801-201407
GREGE,TRIM4#
sub69277-02150
GRAY,TRIM1#
GRAY,TRIM11
DK.GRAY,TRIM12
DK.GRAY,TRIM1#
GREGE,TRIM4#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
GREGE,TRIM4#
GRAY,TRIM12
sub69278-02140
main69278-02140-E0iZRE142..HTWCF;ZRE141..RHD..(16E,16G);ZRE141,142..(16V,18G)..(IDN,MA,PHL);ZRE142,143,ZZE141..(16G,18E,18J,20G,20V)..(IDN,MA,PHL,TH)..HTWC200801-201407
GREGE,TRIM4#
sub69278-02140
GRAY,TRIM1#
GRAY,TRIM11
DK.GRAY,TRIM12
DK.GRAY,TRIM1#
GREGE,TRIM4#
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-0K010iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201211
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
main69730-02160iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI200801-201211
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
90148T0015
main90148-T0015
9016450031
main90164-50031
9018905003
main90189-05003
9018905174
main90189-05174
90189T0005
main90189-T0005
31 parts on this diagram · 1 diagram in section
