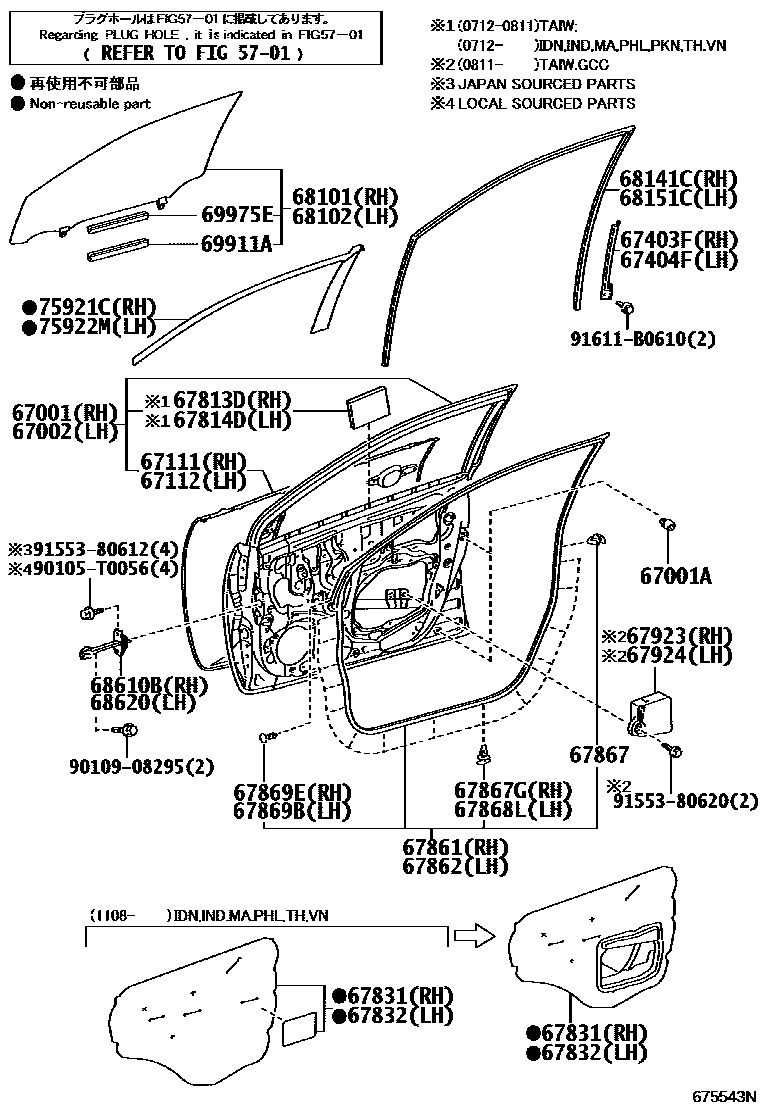

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0003 1DOOR PANEL 0004 1DOOR TRIM

5701

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02350iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201211

main67001-02380iZRE14#..GCC,TAIW200811-201310

main67001-02480iCE140,NZE140,ZRE141..PKN201209

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iCE140,NDE140,NZE140,ZRE14#,ZZE141201308

BLACK X NATURAL

main90541-09124iCE140,NZE140,ZZE14#200712-200809

main90541-09143iZRE143,ZZE142..VN200809-201308

main90541-09143iCE140,NDE140,NZE140,ZRE14#,ZZE141201308

BLACK X YELLOW

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02340iZZE14#..TAIW200712-201211

main67002-02370iZRE143,ZZE14#..GCC,TAIW200811-201310

main67002-02480iCE140,NZE140,ZRE141..PKN201209

67111PANEL, FRONT DOOR, OUTER RH

main67111-02190iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201211

67112PANEL, FRONT DOOR, OUTER LH

main67112-02190iCE140,NZE140200712-201211

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-02120iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,G200801-201211

main67403-02140iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-02120iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201211

main67404-02140iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

67813DSHEET, QUARTER PANEL SILENCER, RH

main67817-47010iZZE14#..TAIW200712-201211

67814DSHEET, QUARTER PANEL SILENCER, LH

main67817-47010iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201211

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02250iZZE14#..(16J,18G,18V)..TAIW200712-201108

main67831-02310iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;NDE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,E,G,LIMO)..(IDN,IND,MA,PHL,TH,VN)201108-201211

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02250iZZE142..PKN200712-201108

main67832-02310iZRE141,142..ATM..(16J,18G)..TH201108-201211

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02230iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201211

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02230iZZE14#..(16J,18G,18V)..TAIW200712-201211

67867CLIP, DOOR WEATHERSTRIP

main90467-04034iCE140,NZE140200712-201211

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150iZRE141,142..ATM..(16J,18G)..TH201007-201211

main67868-02020iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201105

sub67867-12150

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007-201211

main67868-02020iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201105

sub67867-12150

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201211

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iZZE14#..(16J,18G,18V)..TAIW200712-201211

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-12040iZRE14#..GCC,TAIW200811-201310

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-12040iZRE14#..GCC,TAIW200811-201310

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-02290iZZE14#..IDN,MA,PHL,TH200801-200804

*TEM,T=3.5,GREEN

sub68101-02291

main68101-02291iZZE142..PKN200805-201109

*TEM,T=3.5,GREEN

sub68101-02292

main68101-02292iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);CE140,ZRE141..MTM..(16J,20D,20DSA);NZE140,ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,20V,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH,V201109-201211

*TEM,T=3.5,GREEN

sub68101-02293

main68101-02310iZRE142,143..TAIW200712-201108

*TEM,T=3.5,GREEN

sub68101-02311

main68101-02311iZRE142,143..TAIW201108-201310

*TEM,T=3.5,GREEN

main68101-02320iNDE140,ZRE142..IND200808-201108

*TEM,T=3.5,GREEN

sub68101-02321

main68101-02321iNDE140,ZRE142..IND201108-201312

*TEM,T=3.5,GREEN

main68101-02340iZRE141,142..GCC200901-201108

*UVCT,T=3.5,GREEN

sub68101-02341

main68101-02341iZRE141,142..GCC201108-201310

*UVCT,T=3.5,GREEN

sub68101-12A82

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-02290iZZE14#..IDN,MA,PHL,TH200801-200804

*TEM,T=3.5,GREEN

sub68102-02291

main68102-02291iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200805-201109

*TEM,T=3.5,GREEN

sub68102-02292

main68102-02292iZRE141,142..ATM..(16J,18G)..TH201109-201211

*TEM,T=3.5,GREEN

sub68102-02293

main68102-02310iZRE143,ZZE14#..TAIW200712-201108

*TEM,T=3.5,GREEN

sub68102-02311

main68102-02311iZRE142,143..TAIW201108-201310

*TEM,T=3.5,GREEN

main68102-02320iNDE140,ZRE142..IND200808-201108

*TEM,T=3.5,GREEN

sub68102-02321

main68102-02321iNDE140,ZRE142..IND201108-201312

*TEM,T=3.5,GREEN

main68102-02340iZZE14#..GCC200901-201108

*UVCT,T=3.5,GREEN

sub68102-02341

main68102-02341iZRE141,142..GCC201108-201310

*UVCT,T=3.5,GREEN

sub68102-12A82

68141CRUN, FRONT DOOR GLASS, RH

main68141-02270iZZE14#..TAIW200712-201104

main68141-02300iZRE141,142..ATM..(16J,18G)..TH200801-201311

main68141-12560iNDE140,ZZE142..IND200808-201105

68151CRUN, FRONT DOOR GLASS, LH

main68151-02250iZZE14#..TAIW200712-201104

main68151-02280iZZE142..TAIW200801-201311

main68151-12260iZRE143,ZZE142..VN200808-201105

68610BCHECK ASSY, FRONT DOOR, RH

main68610-02190iCE140,NZE140200801-201212

sub68610-02191

main68610-02191iCE140,NZE140,ZRE14#,ZZE141..IDN,MA,PHL,PKN,TH,VN201212

main68610-02200iZRE14#..GCC,TAIW200712-201111

main68610-02201iZRE14#..GCC,TAIW201111-201310

main68610-02210iNDE140,ZRE142..IND200808-201207

sub68610-02211

main68610-02211iNDE140,ZRE142..IND201207-201312

68620CHECK ASSY, FRONT DOOR, LH

main68610-02190iZZE142..PKN200801-201212

sub68610-02191

main68610-02191iCE140,NZE140,ZRE14#,ZZE141..IDN,MA,PHL,PKN,TH,VN201212

main68610-02200iZRE14#..GCC,TAIW200712-201111

main68610-02201iZRE14#..GCC,TAIW201111-201310

main68610-02210iNDE140,ZZE142..IND200808-201207

sub68610-02211

main68610-02211iNDE140,ZRE142..IND201207-201312

69911ACHANNEL, FRONT DOOR GLASS, NO.1

main69911-0D040iZRE143,ZZE14#..IDN,MA,PHL,TH200909-201211

main69911-13010iNDE140,ZRE142..IND200712-201312

69975EFILLER, FRONT DOOR GLASS CHANNEL, NO.1

main69975-0D060iZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI);ZRE141,142..(16E,16G,16V,18E,200909-201211

main69975-16020iZZE141..16E..(MA,PHL);CE140,NZE140,ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20D,20DSA,20G,20V,ALT,GLI,LIMO,XLI)..(IDN,MA,PHL,PKN,TH,VN)200712-201312

75921CTAPE, BLACK OUT, NO.1 RH

main75921-02150iZZE142..TAIW200801-201211

75922MTAPE, BLACK OUT, NO.1 LH

main75922-02150iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201211

90105T0056

main90105-T0056

9010908295

main90109-08295

9155380612

main91553-80612

9155380620

main91553-80620

91611B0610

main91611-B0610

36 parts on this diagram · 3 diagrams in section
