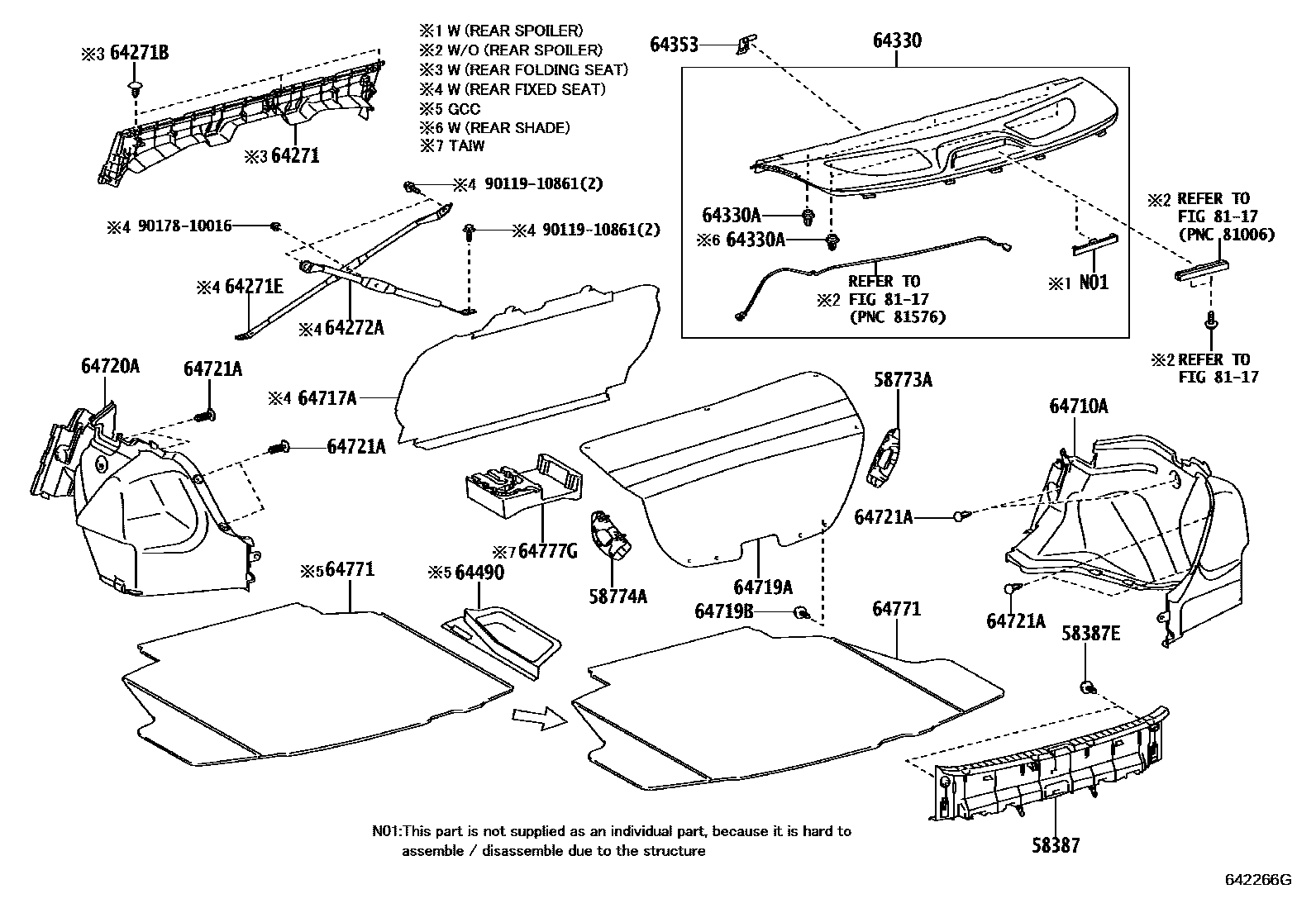

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-02110iNDE140,ZZE142..IND200808-201312

main58387-02120iCE140,NZE140200808-201104

main58387-02130iZRE142,143..(6F,CVFC)..VN200801-201310

main58387-02140iZZE14#..TAIW200712-201310

main58387-02180iZRE143,ZZE14#..GCC,TAIW200811-201007

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0iNDE140,ZZE142..IND200712-201407

BLACK

58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH

main58773-02110iNDE140,ZRE142..IND200808-201312

main58773-02120iCE140,NZE140,ZRE141..PKN200808-201104

main58773-02130iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201310

main58773-02140iZRE14#..GCC,TAIW200712-201310

58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH

main58774-02100iNDE140,ZZE142..IND200808-201312

main58774-02110iCE140,NZE140,ZRE141..PKN200808-201104

main58774-02120iZRE141,142..ATM..(16J,18G)..TH200801-201310

main58774-02130iZRE14#..GCC,TAIW200712-201310

64271BOARD, ROOM PARTITION, NO.1

main64271-02130iNDE140,ZRE142..(18G,18V,E,G)..IND200808-201312

main64271-02140iZZE141..(16G,16V)..PHL;ZRE143,ZZE142..(18G,18J,20G,20V)..(IDN,MA,PHL,TH)200801-201310

SINGAPORE SPEC

main64271-02140iZRE142..TH..HTWC200801-201310

main64271-02150iZZE142..(18G,18V)..TAIW200712-201007

main64271-02150iZRE142,143..LHD..(18E,20G,G,GLI)201007-201310

REAR SEAT-6:4 FOLDING TYPE

main64271-02150iZRE142,143..LHD..(18E,20G,G,GLI)201007-201310

REAR SEAT-6:4 FOLDING TYPE&SEAT COVER MATERIAL-FABRIC

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-08186-C0iZZE142..(18G,18V)..TAIW200712-201407

BLACK

main90467-08186-C0iZRE142..18G..HTWCF;ZRE143..CVFC..(IDN,MA,PHL,TH);ZRE141,142..(16G,16V,18G,18J)..(IDN,MA,PHL)201007-201310

REAR SEAT-6:4 FOLDING TYPE,BLACK

main90467-08186-C0iZRE142..18G..HTWCF;ZRE143..CVFC..(IDN,MA,PHL,TH);ZRE141,142..(16G,16V,18G,18J)..(IDN,MA,PHL)201007-201310

REAR SEAT-6:4 FOLDING TYPE&SEAT COVER MATERIAL-FABRIC,BLACK

64271EPANEL, ROOM PARTITION

main64241-02050iZZE141..16E..TH200801-201104

main64241-02050iZZE141..16E..(MA,PHL);ZZE14#..(16G,16J,18J,LIMO)..(IND,TH)200801-200912

SINGAPORE SPEC

main64241-02070iZRE142..18E..TH200912-201211

SINGAPORE SPEC

main64241-02070iZRE141..6F..(16E,16J);ZRE142..(18E,18EL)..HTWCF;ZRE141,142,ZZE141..(16E,16G,18J,LIMO)..(IND,MA,TH)200912-201312

main64241-02130iZRE142..XLI201203-201310

REAR SEAT-6:4 FOLDING TYPE,(L)

main64241-02130iZRE141,142..ATM..(18J,XLI)201203-201310

(L)

main64241-02130iZRE141,142..ATM..(18J,XLI)201203-201310

SEAT COVER MATERIAL-FABRIC,(L)

main64241-12050iZRE142..XLI201007-201203

REAR SEAT-6:4 FOLDING TYPE

main64241-12050iZRE142..XLI201007-201203

SEAT COVER MATERIAL-FABRIC

main64241-12050iZZE141..TAIW200712-200811

GRADE MARK : 1.6J OR WITH OUT MARK

main64241-12050iZRE141,142..ATM..(18J,XLI)201203-201310

(J)

main64241-12050iZZE14#..4FC..(18J,XLI)200712-201007

64272APANEL, ROOM PARTITION, LH

main64242-02050iZZE142..PKN200801-201104

main64242-02050iZZE141..16E..(MA,PHL);ZZE14#..(16G,16J,18J,LIMO)..(IND,TH)200801-200912

SINGAPORE SPEC

main64242-02070iZZE14#..(16G,18E)..TH200912-201211

SINGAPORE SPEC

main64242-02070iZZE142..18J..IND200912-201312

main64242-02130iZRE141,142..ATM..(18J,XLI)201203-201310

SEAT COVER MATERIAL-FABRIC,(L)

main64242-02130iZRE142..XLI201203-201310

(L)

main64242-02130iZRE142..XLI201203-201310

REAR SEAT-6:4 FOLDING TYPE,(L)

main64242-12050iZRE141,142..ATM..(18J,XLI)201007-201203

REAR SEAT-6:4 FOLDING TYPE

main64242-12050iZRE142..XLI201007-201203

SEAT COVER MATERIAL-FABRIC

main64242-12050iZZE141..TAIW200712-200811

GRADE MARK : 1.6J OR WITH OUT MARK

main64242-12050iZRE141,142..ATM..(18J,XLI)201203-201310

(J)

main64242-12050iZZE14#..4FC..(18J,XLI)200712-201007

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02660-B0iCE140,NZE140..20D,XLI201104-201406

DK.GRAY,TRIM4#

main64330-02660-E0iCE140,NZE140..20D,XLI200808-201104

ASH BROWN,TRIM4#

main64330-02740-B0iZRE142..IDN;ZRE141,142,ZZE141..RHD..(16E,16G,18EL)200801-201310

DK.GRAY,TRIM1#

main64330-02740-B0iZRE141..16G..PHL;ZRE141..(16E,16J)..(PHL,TH)201008-201310

DK.GRAY,TRIM1#,4#

main64330-02740-B0iZRE141..16G..PHL;ZRE141..(16E,16J)..(PHL,TH)201008-201407

DK.GRAY,TRIM4#

main64330-02740-E0iZZE141..16E..TH200801-200812

SINGAPORE SPEC,ASH BROWN,TRIM4#

main64330-02740-E0iZZE142..(18G,18J)..(IDN,MA);ZRE143,ZZE141..RHD..4FC..(16E,16G,20G)200801-201010

ASH BROWN,TRIM4#

main64330-02750-B0iZRE141,143..(16V,20V)..(IDN,PHL)201008-201311

DK.GRAY,TRIM4#

main64330-02750-E0iZRE143,ZZE141..(16V,20V)..(IDN,PHL)200801-201008

ASH BROWN,TRIM4#

main64330-02760-B0iZRE142,143..(18E,20G,G)..TAIW201007-201310

GRADE MARK : 2.0Z,DK.GRAY,TRIM1#,4#

main64330-02760-B0iZRE142,143..(18E,G)..TAIW200712-201310

DK.GRAY,TRIM1#

main64330-02760-B0iZRE142,143..(18E,G)..TAIW201007-201310

DK.GRAY,TRIM1#,4#

main64330-02760-B0iZZE142..18E..TAIW200712-201007

Z AEROTOURER,DK.GRAY,TRIM1#

main64330-02760-E0iZZE142..(18G,18V)..TAIW200712-201007

ASH BROWN,TRIM4#

main64330-02760-E0iZZE142..18E..TAIW200712-201007

Z AEROTOURER,ASH BROWN,TRIM4#

main64330-02770-B0iNDE140;ZRE142..(18G,18J,E)..IND201105-201312

DK.GRAY,TRIM4#

main64330-02770-E0iZZE142..(18J,G)..IND;NDE140,ZZE142..(4FC,6F)..(18G,E,G)..IND200808-201105

ASH BROWN,TRIM4#

main64330-02780-B0iZRE142..18V,G201105-201312

DK.GRAY,TRIM4#

main64330-02780-E0iZZE142..18V..IND;ZZE142..5F..18G..IND200808-201105

ASH BROWN,TRIM4#

main64330-02790-B0iCE140,NZE140,ZRE141..20DSA,D,GLI,N201104-201406

DK.GRAY,TRIM4#

main64330-02790-E0iCE140,NZE140..20DSA,GLI200808-201104

ASH BROWN,TRIM4#

main64330-02820-B0iZRE143..20G..TH201008-201311

DK.GRAY,TRIM1#,4#

main64330-02820-B0iZZE141..LIMO200811-201311

DK.GRAY,TRIM1#

main64330-02840-B0iZRE143..20V..TH201008-201311

DK.GRAY,TRIM1#,4#

main64330-02840-E0iZRE143..20V..TH200905-201008

ASH BROWN,TRIM4#

main64330-02A00-B0iZZE14#..GCC200901-201007

REAR SPOILER-DECK&REAR SEAT BELT-ELR/ALR X3,MD.GRAY,TRIM1#

main64330-02A00-B0iZZE14#..GCC200901-201007

REAR SPOILER-DECK,MD.GRAY,TRIM1#

main64330-02A00-B0iZZE14#..GCC200901-201007

MD.GRAY,TRIM1#

main64330-02A00-B1iZRE142..GCC201007-201310

REAR SPOILER-DECK&REAR SEAT BELT-3POINT TYPE X3,DK.GRAY,TRIM1#,4#

main64330-02A00-B1iZRE142..GCC201007-201310

HIGH MOUNT STOP LAMP-WITH(LED TYPE SPOILER),DK.GRAY,TRIM1#,4#

main64330-02A00-B1iZRE142..GCC201007-201310

HIGH MOUNT STOP LAMP-WITH(LED TYPE SPOILER)&REAR SEAT BELT-3POINT TYPE X3,DK.GRAY,TRIM1#,4#

main64330-02A00-B1iZRE142..GCC201007-201310

HIGH MOUNT STOP LAMP-WITHOUT,DK.GRAY,TRIM1#,4#

main64330-02A00-B1iZRE142..GCC201007-201310

HIGH MOUNT STOP LAMP-WITHOUT&REAR SEAT BELT-3POINT TYPE X3,DK.GRAY,TRIM1#,4#

main64330-02A00-B1iZRE142..GCC201007-201310

GRADE MARK : 2.0Z&REAR SPOILER-DECK & UNDER,DK.GRAY,TRIM1#,4#

main64330-02A00-B1iZRE142..GCC201007-201310

GRADE MARK : 2.0Z&REAR SPOILER-DECK & UNDER&REAR SEAT BELT-3POINT TYPE X3,DK.GRAY,TRIM1#,4#

main64330-02A00-B1iZRE142..GCC201007-201310

DK.GRAY,TRIM1#,4#

main64330-02A00-B1iZRE142..GCC201007-201310

REAR SPOILER-DECK,DK.GRAY,TRIM1#,4#

main64330-02A00-E0iZZE14#..GCC200901-201007

ASH BROWN,TRIM4#

main64330-02A00-E0iZZE14#..GCC200901-201007

REAR SPOILER-DECK,ASH BROWN,TRIM4#

main64330-02A00-E0iZZE14#..GCC200901-201007

REAR SPOILER-DECK&REAR SEAT BELT-ELR/ALR X3,ASH BROWN,TRIM4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

main90467-T0021iCE140,NZE140200801-201312

main90467-T0021iZZE141..16E..TH200801-200812

SINGAPORE SPEC

64353COVER, PACKAGE TRAY TRIM BELT HOLE

main64353-02040-B0iZRE142,143..MA;ZRE142..18E..TH..HTWC;ZRE142..(18E,18G)..HTWCF201008-201407

DK.GRAY,TRIM4#

main64353-02040-B0iZRE141..6F..(PHL,TH);ZRE141..4FC..16G..PHL200801-201311

DK.GRAY,TRIM1#

main64353-02040-B0iZRE141..6F..(PHL,TH);ZRE141..4FC..16G..PHL201008-201311

DK.GRAY,TRIM1#,4#

main64353-02040-E0iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201010

ASH BROWN,TRIM4#

main64353-02050-B0iZRE142..GCC201007-201310

DK.GRAY,TRIM1#,4#

main64353-02050-B0iZZE14#..(16J,18G,18V)..TAIW200712-201310

DK.GRAY,TRIM1#

main64353-02050-B0iZRE142..18J..TAIW201007-201310

REAR SPOILER-DECK&REAR SEAT BELT-3POINT TYPE X3,DK.GRAY,TRIM1#,4#

main64353-02050-B0iZRE142..18J..TAIW201007-201310

HIGH MOUNT STOP LAMP-WITH(LED TYPE SPOILER)&REAR SEAT BELT-3POINT TYPE X3,DK.GRAY,TRIM1#,4#

main64353-02050-B0iZRE142..18J..TAIW201007-201310

HIGH MOUNT STOP LAMP-WITHOUT&REAR SEAT BELT-3POINT TYPE X3,DK.GRAY,TRIM1#,4#

main64353-02050-B0iZRE142..18J..TAIW201007-201310

REAR SEAT BELT-3POINT TYPE X3,DK.GRAY,TRIM1#,4#

main64353-02050-E0iZZE14#..(16J,18G,18V)..TAIW200712-201007

ASH BROWN,TRIM4#

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-02070iZRE141,142..GCC200901-201310

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02150-C0iNDE140200808-201312

BLACK,TRIM4#

main64710-02160-C0iCE140,NZE140200808-201406

BLACK,TRIM4#

main64710-02170-C0iZZE14#..MA200801-201407

BLACK,TRIM4#

main64710-02170-C0iZZE14#..MA200801-201008

FFV SPEC,BLACK,TRIM4#

main64710-02170-C0iZZE141..16J..TH;ZZE141..(16E,16G)..PHL200801-201310

BLACK,TRIM1#,4#

main64710-02170-C0iZZE141..16J..TH;ZZE141..(16E,16G)..PHL200801-201310

BLACK,TRIM1#

main64710-02180-C0iZRE142,143..(18E,20G,G)..TAIW201007-201310

BLACK,TRIM1#

main64710-02180-C0iZZE14#..TAIW200712-201310

BLACK,TRIM1#,4#

main64710-02181-C0iZRE143,ZZE142..TAIW200811-201007

BLACK,TRIM1#,4#

main64710-02200-C0iZZE14#..GCC200901-201007

BLACK,TRIM1#,4#

main64710-02230-C0iZRE141,142..GCC201007-201310

BLACK,TRIM1#,4#

main64710-02240-C0iNDE140201006-201110

BLACK,TRIM4#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-02110iZRE142..18J..IND201105-201312

GRADE MARK : J

main64717-02110iZZE142..18J..IND200808-201105

main64717-02120iCE140,NZE140,ZRE141..PKN200808-201104

main64717-02130iZZE141..16E..TH200801-201311

main64717-02130iZZE141..(16G,16J)..TH;ZZE141..16E..(MA,PHL)200801-201008

FFV SPEC

main64717-02140iZZE141..TAIW200712-201310

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02110-C0iZRE142,143..(18G,20G,20V)..(MA,TH)200801-201310

BLACK,TRIM1#,4#

main64719-02110-C0iZZE142..PHL200801-201407

BLACK,TRIM4#

main64719-02120-C0iZRE14#..LHD..(18E,20G,G,GLI,XLI)200712-201310

BLACK,TRIM1#,4#

main64719-02160-C0iNDE140,ZRE142..IND200808-201312

BLACK,TRIM4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iZRE143,ZZE142..VN200712-201407

BLACK

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02150-C0iNDE140,ZZE142..IND200808-201312

BLACK,TRIM4#

main64720-02160-C0iCE140,NZE140200808-201406

BLACK,TRIM4#

main64720-02170-C0iZZE141..16J..TH;ZZE141..(16E,16G)..PHL200801-201008

FFV SPEC,BLACK,TRIM4#

main64720-02170-C0iZZE142..PHL200801-201310

BLACK,TRIM1#,4#

main64720-02170-C0iZZE142..PHL200801-201407

BLACK,TRIM4#

main64720-02170-C0iZZE14#..MA200801-201310

BLACK,TRIM1#

main64720-02180-C0iZRE142..18J..TAIW200712-201310

BLACK,TRIM1#,4#

main64720-02180-C0iZRE142..18J..TAIW201007-201310

BLACK,TRIM1#

main64720-02200-C0iZRE143,ZZE14#..GCC,TAIW200811-201007

BLACK,TRIM1#,4#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-08186-C0iZRE142..18E..TAIW;ZRE141..4FC..(16J,D,N,XLI);ZRE142..(18G,18J,18V,E,G,GLI,XLI)..(GCC,IND,TAIW,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(IND,PKN,TA200712-201407

BLACK

64771COVER, SPARE WHEEL

main64771-02191-C0iZRE141,142..RHD..(16E,16G,18EL);ZRE14#..(16V,18G,18J,20V)..(IDN,PHL)200801-201407

BLACK,TRIM4#

main64771-02191-C0iZRE142,143..(18E,18G,20G,20V)..(MA,TH)200801-201310

BLACK,TRIM1#

main64771-02191-C0iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201310

BLACK,TRIM1#,4#

main64771-02191-C0iZZE141..16J..TH;ZZE141..(16E,16G)..PHL200801-201008

FFV SPEC,BLACK,TRIM4#

main64771-02200-C0iZZE14#..TAIW200712-200810

BLACK,TRIM1#,4#

main64771-02201-C0iZRE143,ZZE142..TAIW200811-201310

BLACK,TRIM1#,4#

main64771-02201-C0iZRE142..18J..TAIW201007-201310

BLACK,TRIM1#

main64771-02230-C0iNDE140200808-201312

BLACK,TRIM4#

main64771-02240-C0iCE140,NZE140200808-201406

BLACK,TRIM4#

main64771-02250-C0iZZE14#..GCC200901-201310

BLACK,TRIM1#,4#

main64771-02320-C0iNDE140201006-201110

BLACK,TRIM4#

64777GCUSHION, SPARE WHEEL

main64777-02150iZZE14#..(16J,18G,18V)..TAIW200712-201310

8117CENTER STOP LAMP

→ Go to FIG 81-17

9011910861

main90119-10861

9017810016

main90178-10016

23 parts on this diagram · 1 diagram in section
