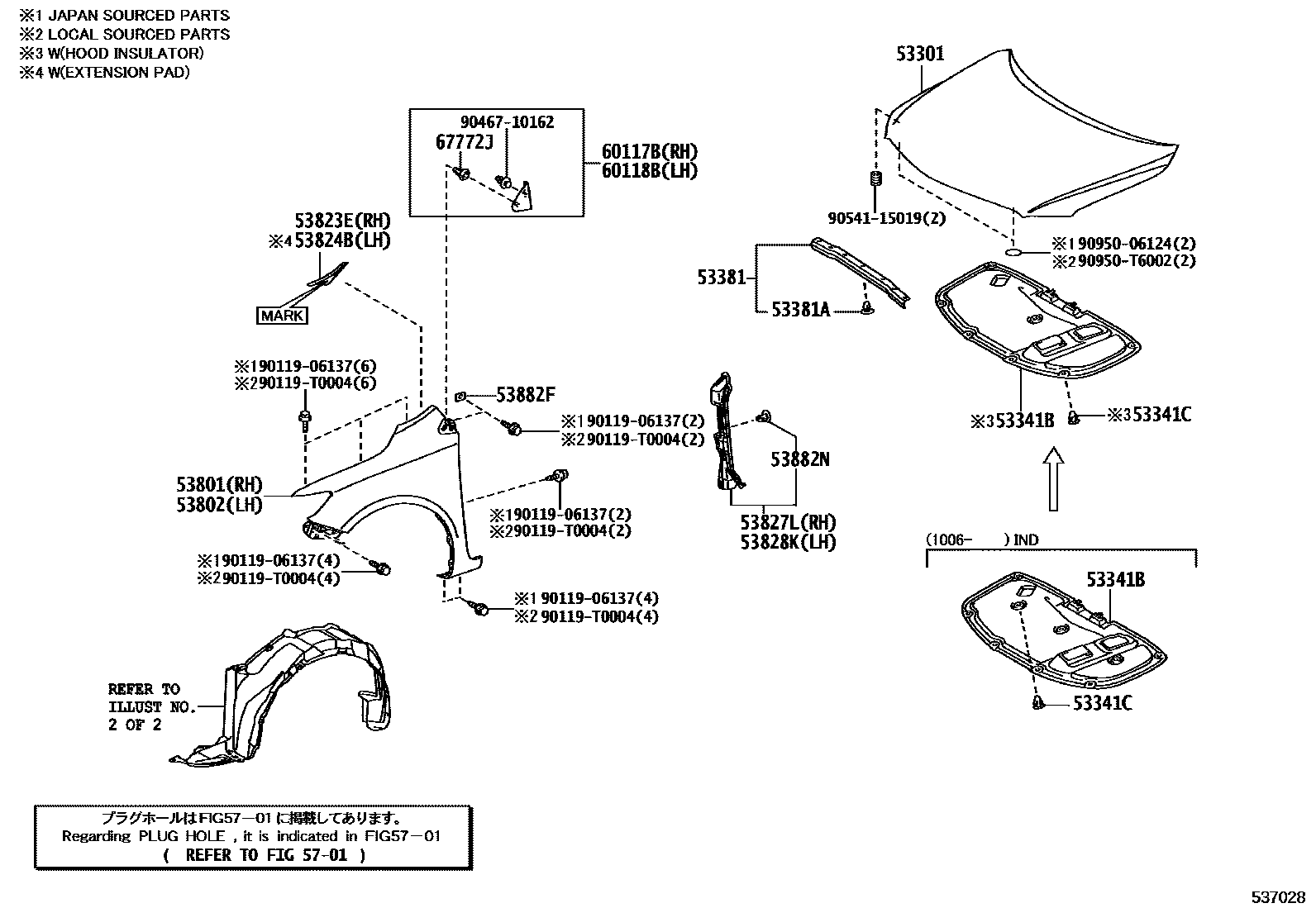

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-02230iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main53301-02360iZRE14#..GCC,TAIW201305-201310

53341BINSULATOR, HOOD

main53341-02190iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,N)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC)201008

main53341-02240iZZE142..IND200911-201005

main53341-02241iNDE140,ZZE142..IND201006-201105

main53341-12290iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×7iCE140200812-201104

(J)

main90467-T0014×7iCE140,ZRE143,ZZE14#..(16E,16G,16J,16V,18E,18G,18J,20D,20DSA,20G,20V,ALT)..(IDN,MA,PHL,PKN,TH,VN)200812-201008

(L)

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-02140iZZE14#..(16J,18G,18V)..TAIW200712-200811

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×7iZZE14#..(16J,18G,18V)..TAIW200712-200811

main90467-T0013×7iCE140,NZE140201001-201104

53801FENDER SUB-ASSY, FRONT RH

main53811-02250iZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..IDN,IND,MA,TAIW,VN;ZRE141,142..(16E,16G,16V,18E,D,N)..(MA,PHL,PKN,TH)..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)201007

main53811-02290iZRE141,142..GCC201007-201310

53802FENDER SUB-ASSY, FRONT LH

main53812-02250iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main53812-02290iZRE141,142..GCC201007-201310

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-02040iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53823-02060iZRE14#..GCC,TAIW201007-201009

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-02040iCE140,NDE140,NZE140,ZRE14#..IND,PKN,VN201010

main53824-02060iZRE143,ZZE14#..GCC,TAIW201003-201007

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02120iCE140,NZE140200712-201104

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02120iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

53882FSEAL, FRONT FENDER

main53882-0D010×2iCE140,NZE140200712-201104

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-08200-E0×2iZZE14#..(16J,18G,18V)..TAIW200712-200811

SANDAL WOOD

main90467-11050-E1×2iZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142201007-201407

SANDAL WOOD

5701HOLE PLUG

→ Go to FIG 57-01

60117BCOVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02080iZRE141,142..ATM..(16J,18G)..TH201007-201211

60118BCOVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02080iZZE14#..(16J,18G,18V)..TAIW200712-200811

67772JCAP, FRONT PILLAR COVER RETAINER

main67772-95J03×2iZZE14#..(16J,18G,18V)..TAIW200712-200811

9011906137

main90119-06137

90119T0004

main90119-T0004

9046710162

main90467-10162

9054115019

main90541-15019

9095006124

main90950-06124

90950T6002

main90950-T6002

23 parts on this diagram · 2 diagrams in section
