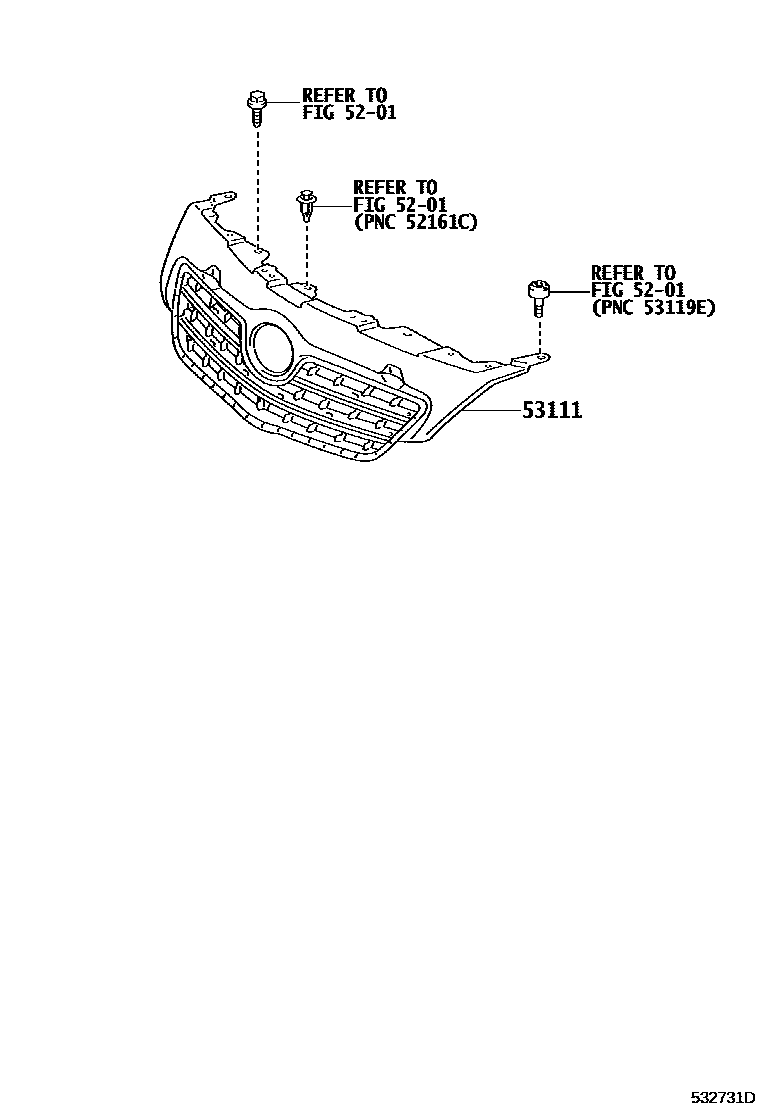

RADIATOR GRILLE

0001 1 0006 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53111GRILLE, RADIATOR

main53100-02140iZZE14#..4FC..(18J,GLI,XLI)200712-201007

NO PAINT REQ.

main53100-02290iZZE142..18E..TH200801-201105

NO PAINT REQ.

main53100-02300-A0iCE140,NZE140200808-201104

PLATED,CKD COLOR,000

main53100-02310iZRE143,ZZE14#..4FC..(16E,18G,20G)..(IDN,MA,TH)200801-201105

PLATED

main53100-02310iZRE143,ZZE14#..4FC..(16E,18G,20G)..(IDN,MA,TH)200801-201008

PLATED,SINGAPORE SPEC

main53100-02350iZZE142..(18G,18V)..TAIW200712-201007

PLATED

main53111-12B30iZRE143..20V..(IDN,PHL,TH)200812-201105

NO PAINT REQ.

2 parts on this diagram · 2 diagrams in section
