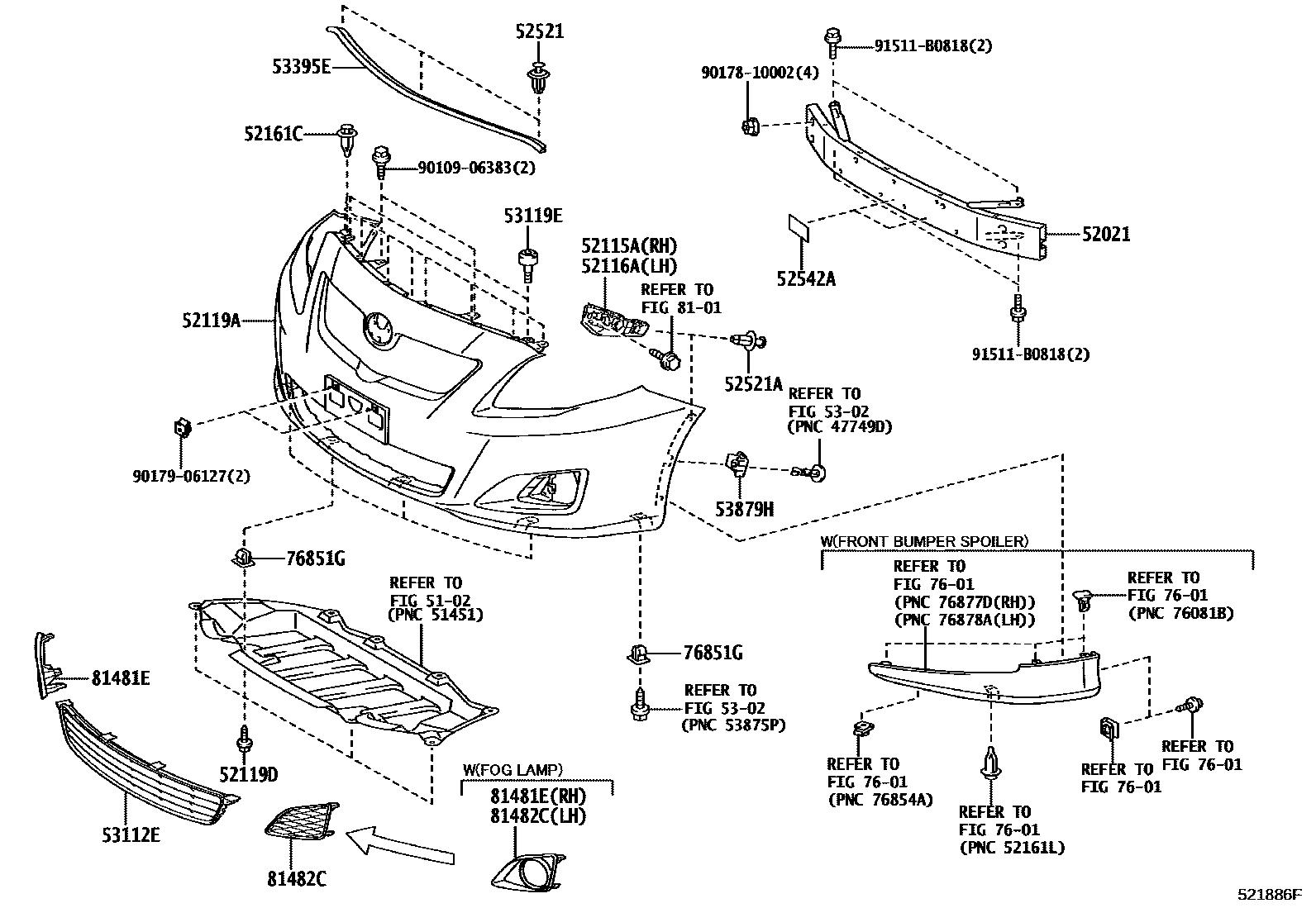

FRONT BUMPER & BUMPER STAY
5102SUSPENSION CROSSMEMBER & UNDER COVER
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-02160iZZE141..(16G,LIMO)..TH;ZRE141,142..IDN,MA,PHL,TH;ZRE143..CVFC..(IDN,MA,PHL,TH)201007-201009
52119ACOVER, FRONT BUMPER
main52119-02850iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,Z AEROTOURER
PAINT REQ.,GRADE MARK : 2.0Z
PAINT REQ.,GRADE MARK : 2.0Z; PAINT REQ.,GRADE MARK : 2.0Z&RADIATOR GRILLE-1BAR TYPE; PAINT REQ.,GRADE MARK : 2.0Z&RADIATOR GRILLE-1BAR TYPE&FRONT FOG LAMP-WITH
52119DSCREW, NO.1
52161CPIECE, FRONT BUMPER
52521RETAINER, FRONT BUMPER, UPPER CENTER
BLACK
52521ACLIP(FOR FRONT BUMPER RETAINER)
DK.GRAY
52542APROTECTOR, FRONT BUMPER, NO.2
5302HOOD & FRONT FENDER
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
53119EPROTECTOR, RADIATOR GRILLE
53395ESEAL, HOOD TO FRONT END PANEL
53879HRETAINER, FRONT FENDER LINER
7601MUDGUARD & SPOILER
76851GGROMMET, SCREW, NO.1
main90189-06237×6iZRE142..18J..TAIW;ZRE142..GCC,IDN,IND,MA,TH,VN;CE140,NDE140,NZE140,ZRE141,143,ZZE141201303-201407
8101HEADLAMP
81481ECOVER, FOG LAMP, RH
main81481-02240iZRE141,142..(16G,16V,18J)..(IDN,PHL);CE140,NDE140,ZRE143..(5F,6F,CVFC)..(20DSA,20G,20V,G);ZRE141,142..(16E,18E,18G,18V,E,G,N)..(IDN,IND,MA,PKN,TAIW,VN)201007
81482CCOVER, FOG LAMP, LH
main81482-02100iZZE141..5F..16G;ZRE143..IDN,PHL,TH;ZZE14#..4FC..(16E,16G,16V,18G)..(IDN,MA,PHL)200712-201008
main81482-02230iZRE141,142..(16G,16V,18J)..(IDN,PHL);CE140,NDE140,ZRE143..(5F,6F,CVFC)..(20DSA,20G,20V,G);ZRE141,142..(16E,18E,18G,18V,E,G,N)..(IDN,IND,MA,PKN,TAIW,VN)201007
9010906383
main90109-06383
9017810002
main90178-10002
9017906127
main90179-06127
91511B0818
main91511-B0818
24 parts on this diagram · 3 diagrams in section
