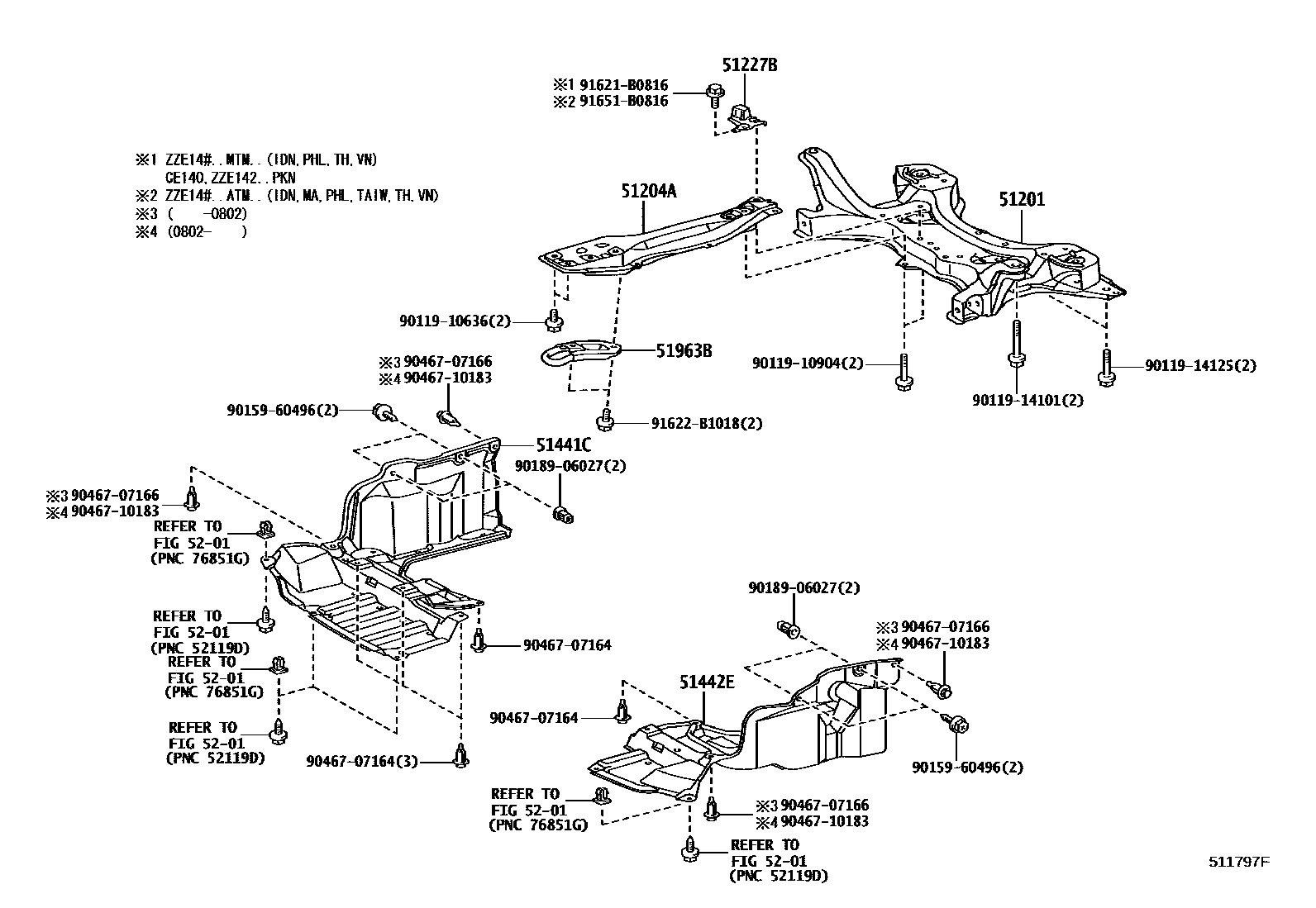

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0005 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02170iZRE143..IDN,PHL,TH200811-201008

main51201-12431iCE140,NZE140200712-201104

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-02090iZRE143,ZZE14#..GCC,TAIW200811-201007

main51204-02091iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA,VN);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,20V,G,LIMO)..(IDN,MA,PHL,TAIW,TH,VN)..HTWC201112

main51204-02120iZRE141,142..GCC201007-201310

main51204-12130iNZE140201104

main51204-12150iCE140200712-201104

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-02080iZZE14#..GCC200812-201007

main51227-02090iZRE142..HTWCF;ZZE141..16G..TH;ZRE142..CVFC..(IDN,MA,VN);ZRE141..4FC..(16E,16G,16V);ZRE142,143..CVFC..(18E,18J,20G,20V,G)..HTWC201007

main51227-12070iZZE142..4FC..VN200712-200906

main51227-12081iZZE142..5F..VN200801-200906

main51227-12110iNDE140201006-201105

51441CCOVER, ENGINE UNDER, RH

main51441-02280iZZE14#..TAIW200712-200811

main51441-02360iZRE143..IDN,PHL,TH200811-201008

main51441-12240iZRE142..IND201105-201312

main51441-12280iNDE140201006-201105

51442ECOVER, ENGINE UNDER, NO.2

main51442-02360iCE140,NZE140..20D,20DSA,GLI200801-201104

main51442-02370iZZE142..4FC..PKN200712

main51442-02410iZZE14#..5F..(IDN,PHL,TH)200812-201008

main51442-02420iZRE141,142..ATM..(16J,18G)..TH201007-201211

main51442-12220iZRE142..6F..IND201105-201312

main51442-12230iZZE142..4FC..IND200808-201105

main51442-12260iNDE140201006-201101

main51442-12261iNDE140201102-201105

51963BHOOK, TRANSPORT, FRONT RH

main51960-02110iZZE14#..(16J,18G,18V)..TAIW200712-200811

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

9011910636

main90119-10636

9011910904

main90119-10904

9011914101

main90119-14101

9011914125

main90119-14125

9015960496

main90159-60496

9018906027

main90189-06027

9046707164

main90467-07164

9046707166

main90467-07166

9046710183

main90467-10183

91621B0816

main91621-B0816

91622B1018

main91622-B1018

91651B0816

main91651-B0816

19 parts on this diagram · 2 diagrams in section
