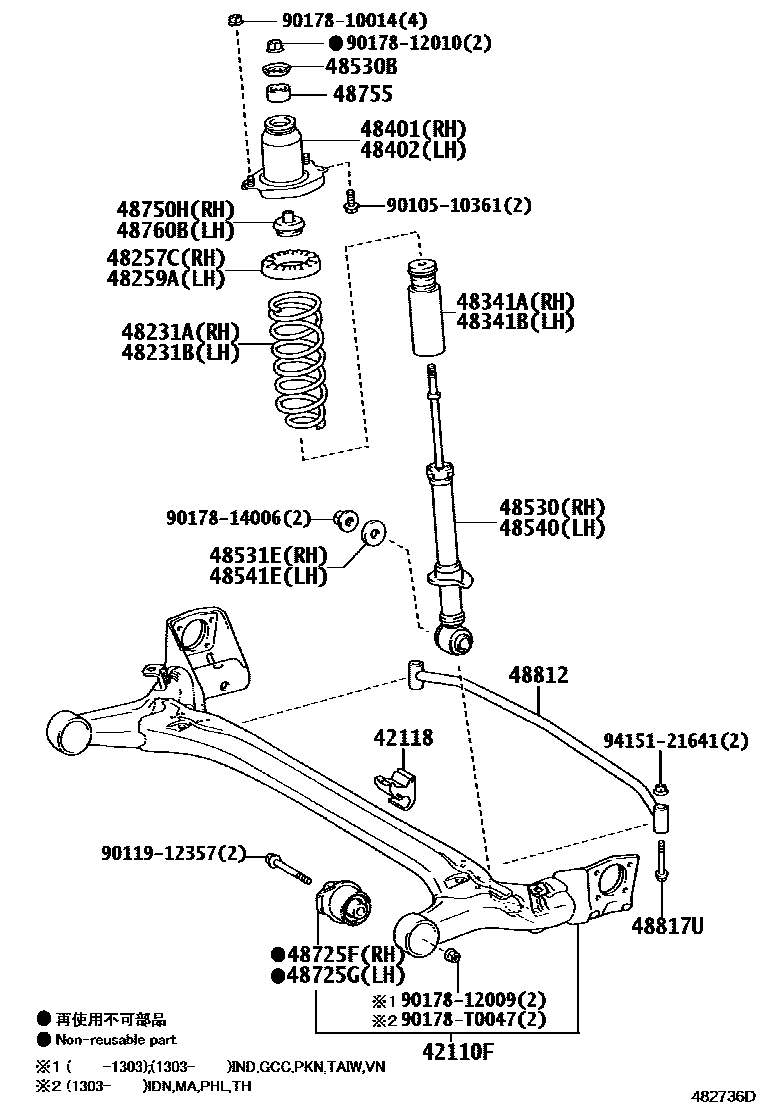

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-02340supersedes 42110-02690iZRE141,142..(16E,16G,18J)..(IDN,PHL)201008-201311

main42110-02350iZRE143..20V..TH200801-201008

main42110-02360iZZE14#..(16G,18E)..TH; ZZE14#..4FC..(16E,16V,18G,18V)..(IDN,MA,PHL)200801-200807

SINGAPORE SPEC

main42110-02370iZRE143,ZZE142..(18E,20E,20G,20V)..TAIW200712-201007

main42110-02400supersedes 42110-02340iZZE14#..4FC..(18J,GLI,XLI)200712-201007

main42110-02430iZRE143,ZZE14#..(16G,16J,18E,18G,20G,LIMO)..TH200807-201008

main42110-02440iZRE141..4FC..(16E,16V);ZRE142,143..(6F,CVFC)..(18G,20V)..(IDN,MA,PHL,VN)201008

main42110-02670iZRE143..TAIW201208-201310

main42110-02680iZRE142..TAIW201208-201310

42118DAMPER, REAR AXLE BEAM

main42118-02020iNDE140,ZZE142..IND200801-201105

main42118-02030iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main42118-12020iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;CE140,ZRE141,142..RHD..(5F,6F,CVFC)..(16J,18E,20D,20DSA)..(DSL,HTWC);NDE140,NZE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,D,E,G,GLI,LIMO,N,XLI)..(IDN,IND,MA,PHL,PKN,TH,VN)201203

(J)

48231ASPRING, COIL, REAR RH

main48231-02800supersedes 48231-02A50iZZE141..16E..TH200801-200812

main48231-02810iZZE142..18V..(IDN,PHL)200801-200812

main48231-02820iZZE14#..(16J,18G,18V)..TAIW200712-200811

main48231-02830iZRE142..IND201105-201312

main48231-02A20iZRE143..TH200905-201008

main48231-02A30iZRE143..IDN,PHL200812-201008

main48231-02A40iZRE143..TAIW201007-201310

main48231-02A50iZZE141201008-201311

main48231-02B50iNDE140201105-201312

main48231-12B80iZZE142..PKN200808

48231BSPRING, COIL, REAR LH

main48231-02800supersedes 48231-02A50iZRE141,142..ATM..(16J,18E,18G)..TH201008-201211

main48231-02810iZZE142..18V..(IDN,PHL)200801-200812

main48231-02820iZRE141,142..GCC,TAIW201007-201310

main48231-02830iZRE142..IND201105-201312

main48231-02A20iZRE143..TH201008-201311

main48231-02A30iZRE143..IDN,PHL200812-201008

main48231-02A40iZRE143..TAIW200811-201007

main48231-02A50iZZE141201008-201311

main48231-02B50iNDE140201105-201312

main48231-12B80iCE140,NZE140200808-201104

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-02010iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC)201008

main48257-02020iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main48257-02080iNDE140,ZRE142..IND201105-201312

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-02010iZRE141,142..ATM..(16J,18G)..TH201008-201211

main48257-02020iZRE14#..GCC,TAIW201007-201310

main48257-02080iNDE140,ZRE142..IND201105-201312

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-12230iZRE143,ZZE142..VN200712-201010

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-12230iZZE14#..(16J,18G,18V)..TAIW200712-200811

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48401-02060iZRE143,ZZE142..VN200801-201010

main48401-02070iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48403-02050iZRE143,ZZE142..VN200801-201010

main48403-02060iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-02660supersedes 48530-02820iZZE14#..(16G,16J,18E,18G)..TH200801-201008

MARK 48530-02660

main48530-02670iZZE142..18V..(IDN,PHL)200801-200812

MARK 48530-02670

main48530-02680iZZE14#..LHD..(18E,18J,GLI,XLI)200712-201007

MARK 48530-02680

main48530-02690iCE140,NZE140,ZRE141..PKN201104

MARK 48530-02690

main48530-02700iZZE142..IND200808-201105

MARK 48530-02700

main48530-02790iZRE143..TH200905-201008

MARK 48530-02790

main48530-02800iZRE143..IDN,PHL200812-201008

MARK 48530-02800

main48530-02810iZRE143..TAIW200811-201007

MARK 48530-02810

main48530-02820iZZE141201008-201311

MARK 48530-02820

main48530-02880iNDE140201105-201312

MARK 48530-02880

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021×2iZZE142..PKN200712

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90201-14034iZZE14#..(16J,18G,18V)..TAIW200712-200811

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-02660supersedes 48530-02820iZRE142..HTWCF;ZRE141..6F..TH;ZRE141..16G..TH201008-201311

MARK 48530-02660

main48530-02670iZZE14#..(16E,16G,16V,18G,18J)..(IDN,MA,PHL); ZZE14#..(16G,18E)..TH200801-201008

MARK 48530-02670; MARK 48530-02670,SINGAPORE SPEC

main48530-02680iZRE141,142..GCC,TAIW201007-201310

MARK 48530-02680

main48530-02690iCE140,NZE140,ZRE141..PKN201104

MARK 48530-02690

main48530-02700iZRE142..IND201105-201312

MARK 48530-02700

main48530-02790iZRE143..TH200905-201008

MARK 48530-02790

main48530-02800iZRE143..CVFC..(IDN,MA,PHL,VN)201008

MARK 48530-02800

main48530-02810iZRE143..TAIW201007-201310

MARK 48530-02810

main48530-02820iZZE141201008-201311

MARK 48530-02820

main48530-02880iNDE140201105-201312

MARK 48530-02880

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90201-14034iCE140,NZE140200712-201104

48725FBUSH, REAR AXLE CARRIER, RH

main48725-02300iZRE143..CVFC..(IDN,MA,PHL,VN);NDE140,ZRE141,142..IDN,IND,MA,PHL,VN201008

main48725-02310iZZE141..16E..TH200801-200812

main48725-12630supersedes 48725-02300iZRE14#..GCC,TAIW201007-201310

48725GBUSH, REAR AXLE CARRIER, LH

main48725-02300iZRE143,ZZE14#..(16E,16G,16V,18G,18J,20V)..(IDN,MA,PHL)200712-201008

main48725-02310iZZE142..PKN200801

main48725-12630supersedes 48725-02300iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-02020iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)201008

main48750-02030iZZE14#..(16J,18G,18V)..TAIW200712-200811

48755SUPPORT, REAR SUSPENSION

main48755-02020×2iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

main48755-02030×2iZZE14#..(16J,18G,18V)..TAIW200712-200811

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-02020iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)201008

main48750-02030iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

48812BAR, STABILIZER, REAR

main48812-02260iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC)201008

main48812-02270iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main48812-02280iNDE140,ZZE142..IND200808-201105

48817UBOLT(FOR REAR STABILIZER)

main90105-16085×2iZZE142..PKN200712

9010510361

main90105-10361

9011912357

main90119-12357

9017810014

main90178-10014

9017812009

main90178-12009

9017812010

main90178-12010

9017814006

main90178-14006

90178T0047

main90178-T0047

9415121641

main94151-21641

30 parts on this diagram · 1 diagram in section
