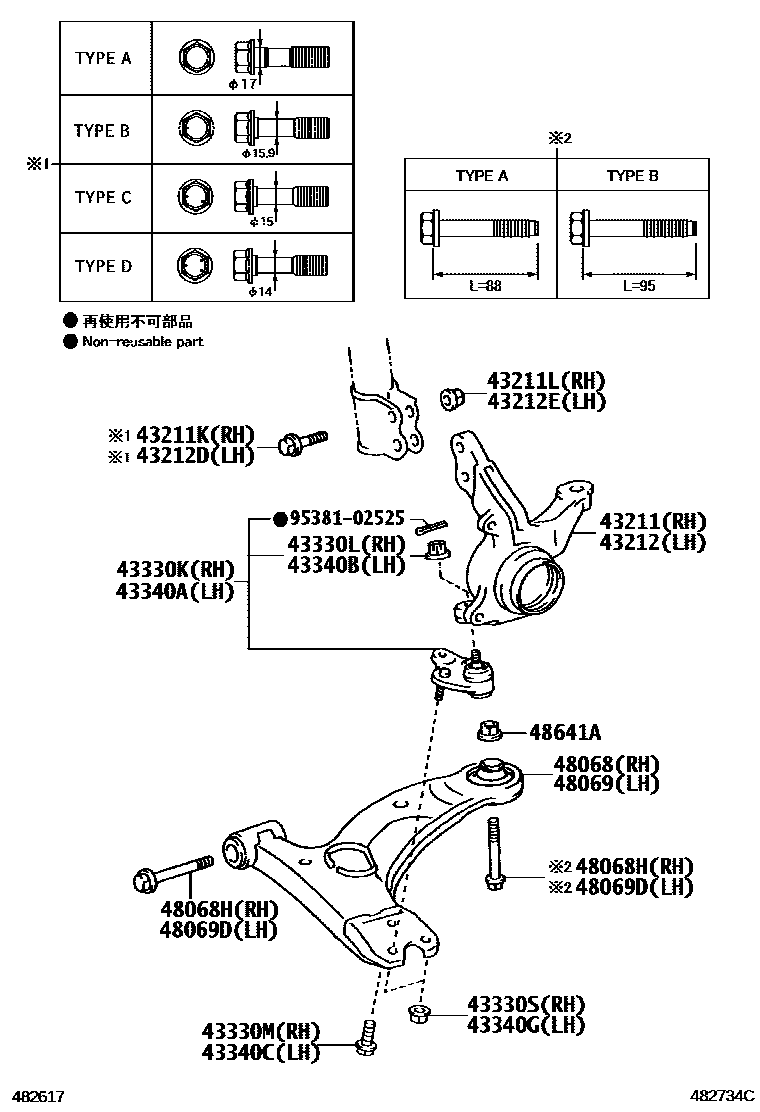

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-02240iZRE141..4FC..16J201008-201211

main43211-02261iCE140,NZE140..20D,XLI200808-201104

main43211-02270iZZE141..5F..PHL;ZZE142..(18E,18G,18J)..(IDN,MA,TH);ZRE143,ZZE141..4FC..(16E,16G,16V,20G,20V)..(IDN,MA,PHL,TH)200801-201008

main43211-02280iZRE142,143..TAIW201007-201310

main43211-02291iZZE142..PKN200808

main43211-02300iNDE140,ZZE142..IND200808-201105

main43211-02330supersedes 43211-02340iZRE141..GCC; ZRE142..GCC201007-201310

ABS-WITH

main43211-02250iZZE141..TAIW200712-200811

GRADE MARK : 1.6J OR WITH OUT MARK

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17008×2iZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142201007-201407

OD=17,TYPE A:REFER ILLUST.

main90105-17009iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iZRE143,ZZE142..VN200712-201010

OD=15,TYPE C:REFER ILLUST.

main90105-17011iZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142201007-201407

OD=14,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002×2iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

43212KNUCKLE, STEERING, LH

main43212-02240iZRE141,ZZE141..16J,LIMO201008-201311

main43212-02261iCE140,NZE140..20D,XLI201104-201406

main43212-02270iZRE143,ZZE142..VN200801-201010

main43212-02280iZZE14#..(16J,18G,18V)..TAIW200712-200811

main43212-02291iCE140,NZE140,ZRE141..20DSA,D,GLI,N201104-201406

main43212-02300iNDE140,ZZE142..IND200808-201105

main43212-02330supersedes 43212-02340iZZE141..GCC; ZZE142..GCC200901-201007

ABS-WITH

main43212-02250iZZE141..TAIW200712-200811

GRADE MARK : 1.6J OR WITH OUT MARK

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17008×2iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

OD=17,TYPE A:REFER ILLUST.

main90105-17009iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iZRE143,ZZE142..VN200712-201010

OD=15,TYPE C:REFER ILLUST.

main90105-17011iNDE140,ZZE142..IND200712-201105

OD=14,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002×2iZZE142..PKN200712

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09680iZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NZE140,ZRE141,142..GCC,IDN,MA,PHL,PKN,TAIW,TH,VN201007-201407

main43330-09690iNDE140,ZZE142..IND200808-201105

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iCE140,NZE140200712-201104

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12336iZZE14#..(16J,18G,18V)..TAIW200712-200811

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12015×2iCE140,NZE140200712-201104

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09680iZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NZE140,ZRE141,142..GCC,IDN,MA,PHL,PKN,TAIW,TH,VN201007-201407

main43330-09690iNDE140,ZZE142..IND200808-201105

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iCE140,NZE140200712-201104

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12336iZZE14#..(16J,18G,18V)..TAIW200712-200811

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12015×2iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-02210iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)201008

main48068-02220iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

main48068-02250iZZE14#..GCC200901-201007

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086×2iZZE14#..(16J,18G,18V)..TAIW200712-200811

main90119-T0353×2iCE140,NDE140,NZE140,ZRE14#..GCC,IND,PKN,TAIW,VN201303

TYPE B:REFER ILLUST.

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-02210iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)201008

main48069-02220iZRE142,143..TAIW201007-201310

main48069-02250iZZE14#..GCC200901-201007

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086×2iCE140,NZE140200712-201104

main90119-T0353×2iCE140,NDE140,NZE140,ZRE14#..GCC,IND,PKN,TAIW,VN201303

TYPE B:REFER ILLUST.

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90178-T0048×2iZRE141,142..ATM..(16J,18G)..TH201008-201211

main90179-14068×2iZRE143,ZZE142..VN200712-201010

9538102525

main95381-02525

20 parts on this diagram · 1 diagram in section
