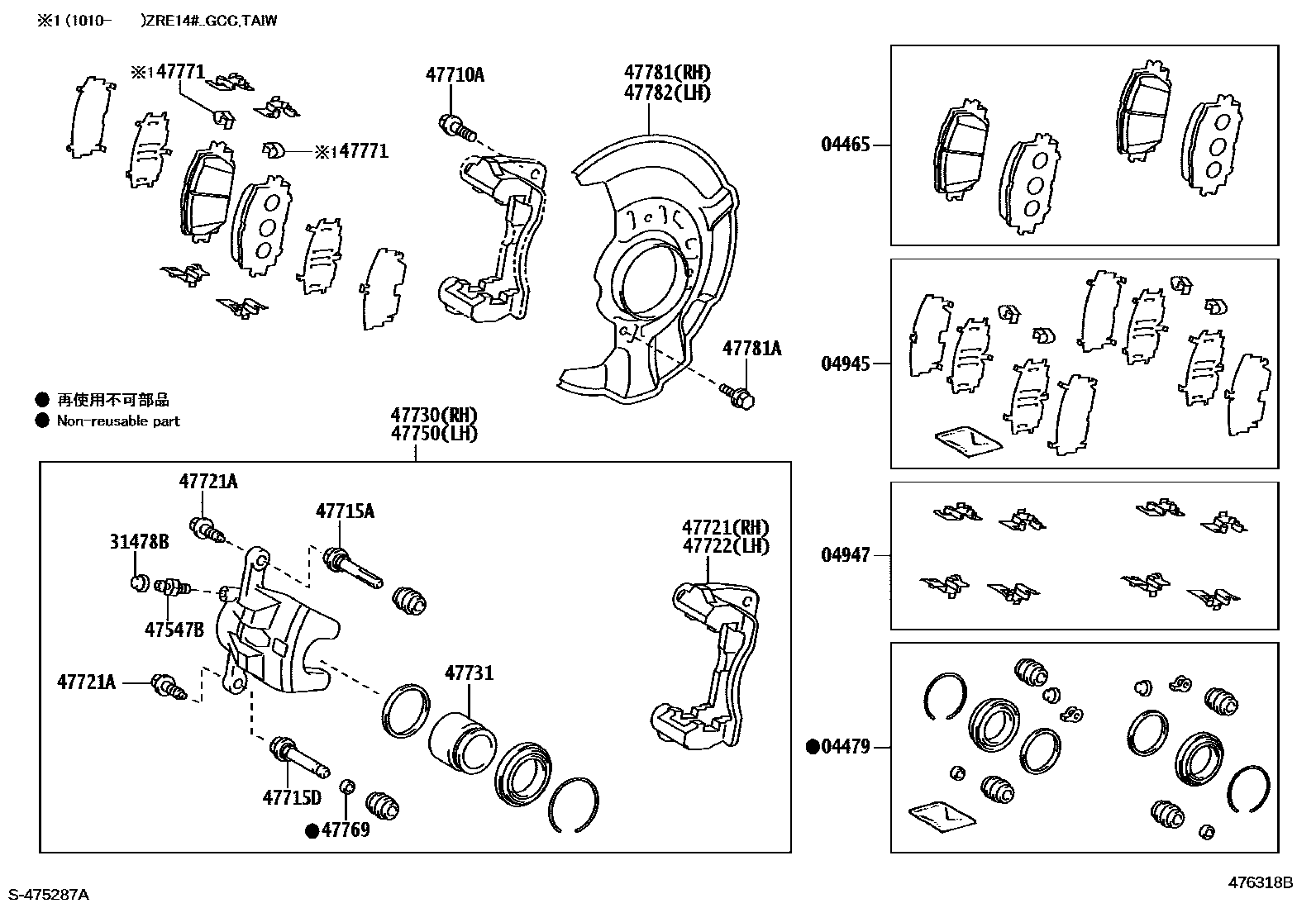

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02220iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201104

MARK ADVICS PV565H

main04465-02270iZZE142..IND200808-200812

MARK JURID 672

sub04465-02210

main04465-02310iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,LIMO)..(IDN,MA,PHL,TH)..HTWC201004-201211

MARK ADVICS PV565H

main04465-02320iNDE140,ZZE142..IND200812-201104

MARK AK NS341H

sub04465-02340

main04465-02340iNDE140,ZZE142..IND201104-201108

MARK AK NS341H

sub04465-02370

main04465-02370iNDE140,ZRE142..IND201109-201312

MARK AK NS 341

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02190iZZE14#..TAIW200712-200802

sub04478-02280

main04478-02200iZZE14#..RHD200801-200802

sub04478-02270

main04478-02270iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200802-201106

sub04478-02271

main04478-02280iZRE14#..GCC,TAIW200802-201010

sub04478-02310

main04478-02300iNDE140,ZRE142..IND200808-201312

main04478-02310iZRE14#..GCC,TAIW201010-201310

main04478-02330iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA,VN);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH,VN)..HTWC201106-201211

sub04478-02331

main04478-12110iCE140,NZE140,ZRE141..PKN200808-201104

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02160iZZE14#..(16J,18G,18V)..TAIW200712-201009

sub04945-02190

main04945-02170iZRE143,ZZE142..VN200801-201109

sub04945-02220

main04945-02190iZRE14#..GCC,TAIW201010-201310

main04945-02220iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA,VN);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH,VN)..HTWC201109-201211

main04945-12100iCE140,NZE140,ZZE142..PKN200808-200904

sub04945-12110

main04945-12110iCE140,NZE140200905-201311

sub04945-12111

main04945-12111iCE140,NZE140,ZRE141201311

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0D030iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201211

main04947-42050iZZE14#..(16J,18G,18V)..TAIW200712-201104

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040iZRE141,142..ATM..(16J,18G)..TH201106-201211

main31478-30010iZZE14#..(16J,18G,18V)..TAIW200712-201106

main90069-39009iNDE140,ZRE142..IND200808-201312

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-0D030iZRE143,ZZE14#..IDN,MA,PHL,TH201004-201211

main47547-20010iZZE14#..(16J,18G,18V)..TAIW200712-201104

main90069-39000iNDE140,ZRE142..IND200808-201312

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201407

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-06250iZZE14#..(16J,18G,18V)..TAIW200712-201310

main47715-52190iZRE141,142..ATM..(16J,18G)..TH200801-201211

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-06250iZZE14#..(16J,18G,18V)..TAIW200712-201310

main47715-12A10iCE140,NZE140200808-201104

main47715-33340iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,LIMO)..(IDN,MA,PHL,TH)..HTWC200801-201211

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-02450iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,LIMO)..(IDN,MA,PHL,TH)..HTWC200801-201211

main47721-02460iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

main47721-09460iZZE142..IND200808-200809

main47721-09461iZZE142..IND200809-200812

main47721-09515iNDE140,ZRE142..IND200812-201312

main47721-12A10iCE140,NZE140200808-201104

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA603iZRE143,ZZE142..VN200801-201211

*8-1.00PX23-15

main90080-10247iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

*8-1.00PX23-15

main90105-08164iCE140,NZE140,ZRE141..PKN200808-201104

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-02450iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,LIMO)..(IDN,MA,PHL,TH)..HTWC200801-201211

main47722-02460iZZE14#..(16J,18G,18V)..TAIW200712-201310

main47722-09160iZZE142..IND200808-200809

main47722-09161iZZE142..IND200809-200812

main47722-09210iNDE140,ZRE142..IND200812-201312

main47722-12A10iCE140,NZE140,ZRE141..PKN200808-201104

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02340iZZE142..IND200808-200812

sub47730-02341

main47730-02450iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,LIMO)..(IDN,MA,PHL,TH)..HTWC200801-201211

main47730-02460iZRE14#..GCC,TAIW200712-201310

main47730-02481iNDE140,ZZE142..IND200812-201312

main47730-12A10iZZE142..PKN200808-201104

47731PISTON, FRONT DISC BRAKE

main47731-02450iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,LIMO)..(IDN,MA,PHL,TH)..HTWC200801-201211

main47731-12A10iCE140,NZE140200712-201104

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02221iNDE140,ZZE142..IND200812-201312

main47750-02340iZZE142..IND200808-200812

sub47750-02341

main47750-02450iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201211

main47750-02460iZZE14#..(16J,18G,18V)..TAIW200712-201310

main47750-12A10iCE140,NZE140200808-201104

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-06030iZRE14#..GCC,TAIW201010-201310

main47769-06040iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201211

sub47769-0K220

main47769-50010iZZE14#..(16J,18G,18V)..TAIW200712-201104

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-52191iZRE14#..GCC,TAIW201010-201310

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02160iZRE143,ZZE142..VN200801-201407

sub47781-12260

main47781-02170iZZE14#..(16J,18G,18V)..TAIW200712-201310

main47781-02180iCE140,NZE140,ZRE141..PKN200808-201406

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201406

main90119-T0005iZRE143..CVFC..(IDN,MA,PHL,TH,VN);NDE140,ZRE141,142,ZZE141..IDN,IND,MA,PHL,TH,VN200801-201407

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02160iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201407

sub47782-12260

main47782-02170iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

main47782-02180iCE140,NZE140,ZRE141..PKN200808-201406

20 parts on this diagram · 2 diagrams in section
