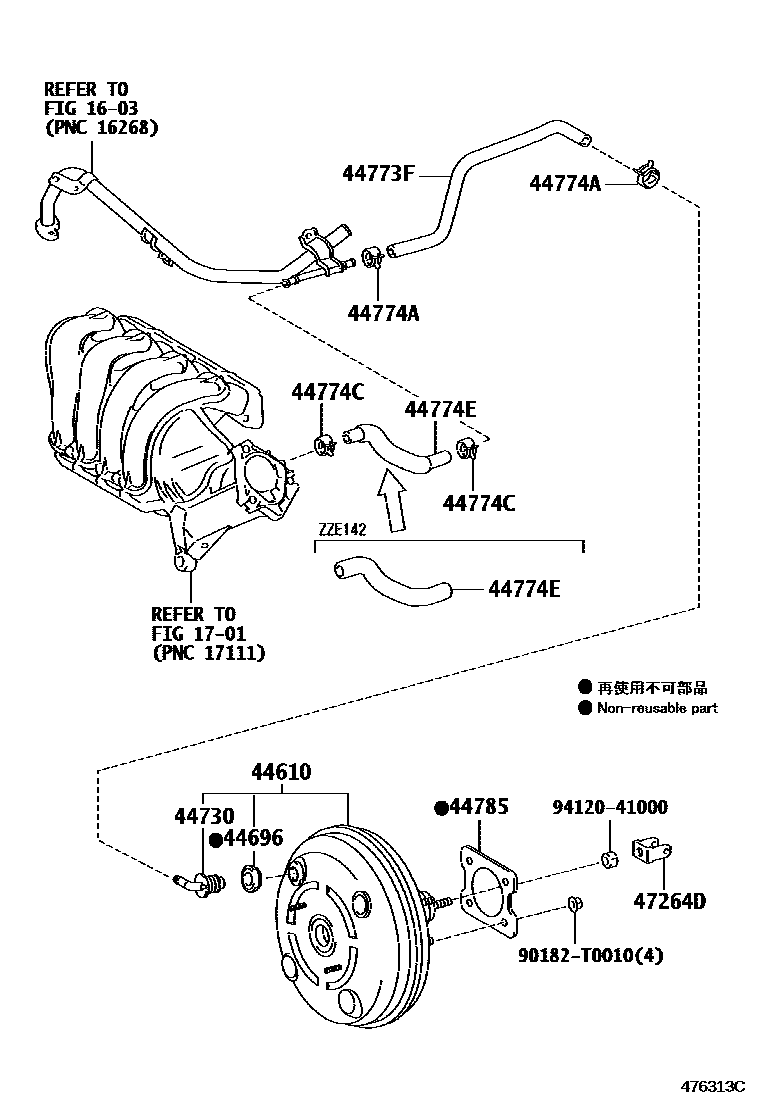

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1 0010 1 0011 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-02490iZRE143,ZZE14#..(16E,16G,18E,20G)..TH200801-201008

main44610-02500iZRE143..20V..TH201008-201311

main44610-02510iZRE141..4FC..16J201008-201211

main44610-02520supersedes 44610-02530iZRE141..16G..TH; ZRE141..MA;ZRE142,143..IDN; ZRE142..MA201008-201311

GRADE MARK : 1.6E OR 1.8E; SINGAPORE SPEC

main44610-02530iZRE142,143..MA201008-201311

main44610-02550iZRE141,142..PHL,VN;ZRE143..LHD..CVFC..20V201008

main44610-09460iNDE140201006-201105

main44610-09580iZZE142..IND200808-201105

main44610-12A31iNZE140..GLI200808-201104

main44610-12C91iCE140..20DSA200808-201104

main44610-12D01iCE140..20D201104

main44610-12E31iNZE140..XLI201104

main44610-12E60iZZE14#..(16J,18E,18J)..TAIW200712-200803

main44610-12E61supersedes 44610-12E81iZRE143,ZZE142..LHD..(18E,18J,20E,20G,GLI,XLI)200803-201007

main44610-12E70iZZE142..(18G,18V)..TAIW; ZZE142..18E..TAIW200712-200802

GRADE MARK : 1.6J OR WITH OUT MARK; Z AEROTOURER

main44610-12E71iZZE142..(18G,18V)..TAIW; ZZE142..18E..TAIW200803-200811

GRADE MARK : 1.6J OR WITH OUT MARK; Z AEROTOURER

main44610-12E80supersedes 44610-12E61iZZE141..TAIW200712-200803

GRADE MARK : 1.6J OR WITH OUT MARK

main44610-12E81supersedes 44610-12E61iZZE141..TAIW200803-200811

GRADE MARK : 1.6J OR WITH OUT MARK

44696GROMMET, CHECK VALVE

main90080-48050iZRE143,ZZE142..VN200801-201010

main90480-24439iZZE142..PKN200712

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09020iNDE140,ZRE142..IND201105-201312

main44730-12070iZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI);ZRE141,142..(16E,16G,16V,18E,18J,D,GLI,N,XLI)..(GCC,IDN,MA,PHL,PKN,TAIW,TH)..HTWC201007

44773FHOSE, UNION TO CHECK VALVE

main44773-02110iZZE142..PKN200801

main44773-02120iZZE142..VN200802-201010

main44773-02130iZZE14#..(16J,18G,18V)..TAIW200712-200811

main44773-02150iZRE142..IND201105-201207

main44773-02151iZRE142..IND201207-201312

main44773-02170iZRE143..PHL200811-201008

main44773-12820iNZE140200808-201104

main44773-12840iCE140201104

44774HOSE, UNION TO CONNECTOR TUBE

main44774-02190iZRE141,142..LHD;ZRE143..LHD..CVFC201007

main44774-12720iCE140201104

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-T0019×4iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,18E,18J,20G,20V,D,LIMO,N)..(IDN,MA,PKN,TH)..HTWC201008

main96133-41500×4iZRE143..TAIW200801-201007

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×2iZZE14#..(16J,18G,18V)..TAIW200712-200811

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-02140iZZE142..(18E,18G,18J)..(IDN,MA,TH)200801-201008

main44774-02150iZZE141201008-201311

main44774-02160iZZE142..(18G,18V)..TAIW200712-200811

main44774-02170iZZE141..GCC200712-201007

main44774-20310iZZE142..IND200808-201105

main95446-09130iNZE140201104

44785GASKET, BRAKE BOOSTER

main44785-12040iZRE143,ZZE142..VN200712-201010

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-02110iZRE141,142..ATM..(16J,18G)..TH201008-201211

main47264-02120iZZE14#..(16J,18G,18V)..TAIW200712-200811

main47264-63020iCE140,NZE140,ZRE141..PKN201104

90182T0010

main90182-T0010

9412041000

main94120-41000

14 parts on this diagram · 10 diagrams in section
