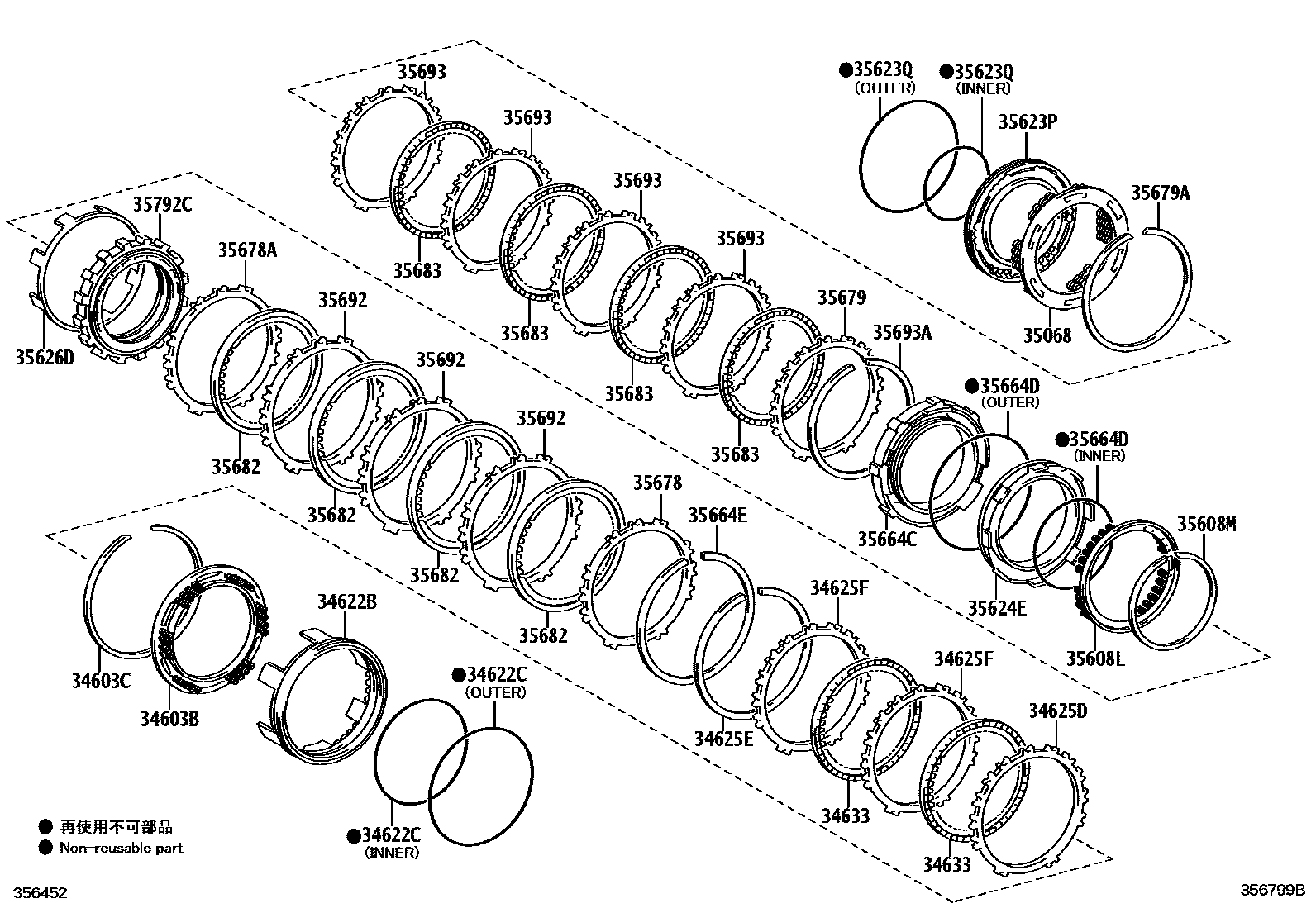

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U341E 0002 1U241E 0003 1U340E

34603BSPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-52020iZZE14#..LHD..(18E,18J,GLI,XLI)200712-201007

34603CRING, HOLE SNAP(FOR OVERDRIVE BRAKE RETURN SPRING)

main90520-99055iZZE14#..(16J,18G,18V)..TAIW200712-200811

34622BPISTON, 2ND COAST & OVERDRIVE BRAKE

main34622-52021iZZE142..4FC..VN200712-201010

34622CRING, O(FOR 2ND COAST & OVERDRIVE)

main90301-99121iZZE14#..(16J,18G,18V)..TAIW200712-200811

INNER

main90301-99122iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)201007

OUTER

34625DFLANGE, 2ND COAST & OVERDRIVE BRAKE

main34625-52071iZZE142..18V..(IDN,PHL)200712-200812

T=4.2, MARK 5

main34625-52081iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200712-201008

T=4.4, MARK 6

main34625-52091iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200712-201008

T=4.6, MARK 7

main34625-52110iZZE142..4FC..VN200712-201010

T=4.0, MARK 4

34625ERING, HOLE SNAP(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE)

main90520-99050iZZE14#..(16J,18G,18V)..TAIW200712-200811

34625FFLANGE, 2ND COAST & OVERDRIVE BRAKE, NO.2

main34625-52060×2iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)201007

34633DISC, 2ND COAST & OVERDRIVE BRAKE

main34633-52020×2iZZE142..18V..(IDN,PHL)200712-200812

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-21010iZRE143..TAIW200811-201007

main35068-52030iZZE142..18V..(IDN,PHL)200712-200812

35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-52020iZZE142..4FC..(IND,PKN)200712

35608MRING, SNAP(FOR 2ND BRAKE PISTON RETURN SPRING)

main90520-99048iZZE14#..(16J,18G,18V)..TAIW200712-200811

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-52030iZZE14#..LHD..(18E,18J,GLI,XLI)200712-201007

35623QRING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2)

main90301-98002iZZE142..4FC..VN200712-201010

INNER

main90301-99117iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)201007

OUTER

35624EPISTON, 2ND BRAKE

main35624-52020iZZE14#..LHD..(18E,18J,GLI,XLI)200712-201007

35626DSLEEVE, 2ND BRAKE PISTON

main35626-52010iZRE142,ZZE141..(16G,GLI,XLI)..(GCC,TH)201007-201311

main35626-52020iZRE141..4FC..16J201007-201211

35664CCYLINDER, 2ND BRAKE

main35664-52020iZZE142..4FC..(IND,PKN)200712

35664DRING, O(FOR 2ND BRAKE CYLINDER)

main90301-99118iZZE142..18V..(IDN,PHL)200712-200812

INNER

main90301-99119iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)201007

OUTER

35664ERING, HOLE SNAP(FOR 2ND BRAKE CYLINDER)

main90520-99050iZZE142..18V..(IDN,PHL)200712-200812

35678FLANGE, BRAKE(FOR 2ND BRAKE)

main35678-52020iZRE141..4FC..16J201007-201211

T=3.0

main35678-52030iZZE142..4FC..VN200712-201010

T=3.2

main35678-52040iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200712-201008

T=3.4

main35678-52050iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200712-201008

T=3.6

35678AFLANGE, BRAKE, NO.1(FOR 2ND BRAKE)

main35678-52020×3iZRE141..4FC..(16E,16G,16V,D,N,XLI)201007

35679FLANGE, BRAKE(FOR 1ST & REVERSE)

main35679-52020iZZE14#..LHD..(18E,18J,GLI,XLI)200712-201007

T=3.4

main35679-52030iZZE14#..(16J,18G,18V)..TAIW200712-200811

T=3.6

main35679-52040iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200712-201008

T=3.8

main35679-52050iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200712-201008

T=4.0

35679ARING, HOLE SNAP(FOR BRAKE FLANGE)

main90520-99054iZZE14#..(16J,18G,18V)..TAIW200712-200811

35682DISC, BRAKE(FOR 2ND BRAKE)

main35682-52020×4iZZE142..4FC..(IND,PKN)200712

35683DISC, BRAKE(FOR 1ST & REVERSE)

main35683-52050×4iZRE141..4FC..16J201007-201211

main35683-52060×4iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200712-201008

35692PLATE, BRAKE(FOR 2ND BRAKE)

main35692-52020×3iZZE14#..(16J,18G,18V)..TAIW200712-200811

35693PLATE, BRAKE (FOR 1ST & REVERSE)

main35693-52030×4iZZE142..4FC..VN200712-201010

main35693-52040×4iZRE141..4FC..(16E,16G,16V,D,N,XLI)201007

35693ARING, SNAP(FOR 1ST & REVERSE PLATE)

main90520-99057iZZE142..18V..(IDN,PHL)200712-200812

35792CCLUTCH, 1 WAY, NO.2

main35792-52021iZZE14#..(16J,18G,18V)..TAIW200712-200811

28 parts on this diagram · 3 diagrams in section
