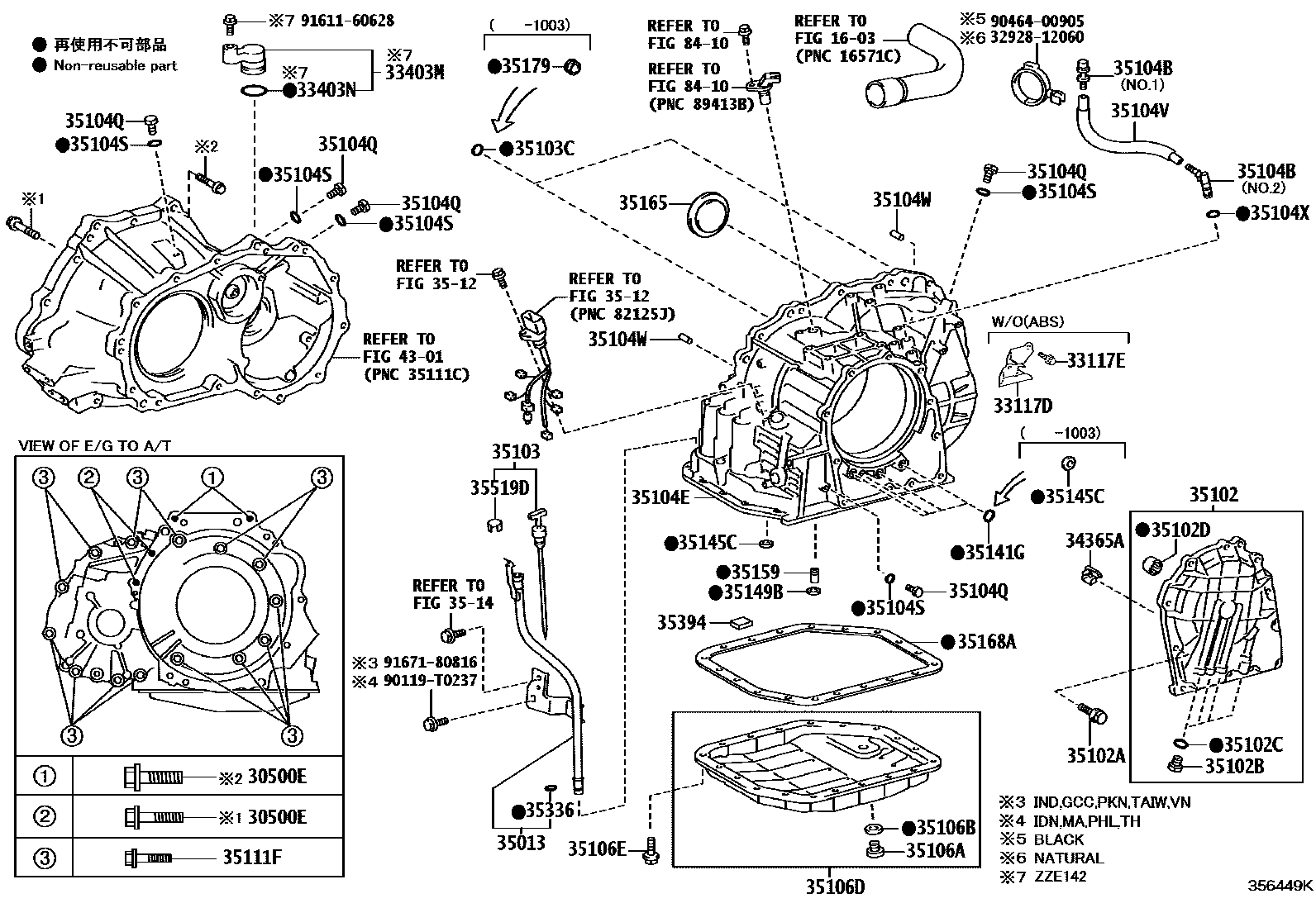

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U341E 0002 1U241E 0003 1U340E 0004 1U341E

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90119-12168×2iZZE142..4FC..(IND,PKN)200712

*12-1.25PX55-30

main90119-T0214×2iZZE141..16G201008-201311

*12-1.25PX55-30

main90119-T0225×7iZRE141..4FC..16J201008-201211

*10-1.25PX45-30

main91512-61045×3iZRE143..VN200811-201010

*10-1.25PX45-30

main91612-61045×7iZRE141,142..GCC201007-201310

*10-1.25PX45-30

main91642-81055×2iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200712-201008

*10-1.25PX55-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-0D020iZZE141..GCC200901-201007

main33117-0D030iZZE141..4FC..16J..TH200801-201008

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90119-T0070×2iZRE141..4FC..16J201008-201211

main91651-B0820×2iZRE141..GCC201007-201310

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-0D010iZZE142..18V..(IDN,PHL)200801-200812

main33403-20230iZRE143,ZZE142..4FC..VN200712-201010

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main90301-T0044iZRE143,ZZE142..(18E,18G,20G,20V)..(IDN,MA,PHL,TH)200801-201008

main96711-24018iZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

34365ARETAINER, OUTER RACE

main34365-52012iZZE14#..(16J,18G,18V)..TAIW200712-200811

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-02070iZZE142..4FC..(IND,PKN)200801

main35013-02080iZZE14#..(16J,18G,18V)..TAIW200712-200811

main35013-02090iZRE143..IDN,PHL,TH200812-201008

main35013-02100iZRE143..TAIW200811-201007

main35013-02110iZRE141..4FC..(16E,16G,16V,D,N)201008

main35013-02120iZRE141..GCC201007-201310

main35013-02130iZRE142..GCC201007-201310

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-44010iZRE143..TAIW200811-201007

main35102-52020iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200712-201008

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071×11iZRE143..IDN,PHL,TH200811-201008

*8-1.25PX30-25

main90105-08365×11iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200712-201008

*8-1.25PX28-20

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001×4iZZE142..4FC..VN200712-201010

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×4iZZE142..18V..(IDN,PHL)200712-200812

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-14007iZZE14#..(16J,18G,18V)..TAIW200712-200811

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-02150iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200801-201008

main35103-02160iZZE14#..(16J,18G,18V)..TAIW200712-200811

main35103-02190iZRE143..IDN,PHL,TH200812-201008

main35103-02200iZRE143..TAIW200811-201007

main35103-02220iZRE141..4FC..16J201008-201211

main35103-02230iZRE141..GCC201007-201310

main35103-02240iZRE142..GCC201007-201310

35103CRING, O

main90301-06008×2iZRE143..VN201002-201010

main90301-06024×2iZRE141,142,ZZE141..4FC201307

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iZZE142..4FC..(IND,PKN)200712

NO.1

main90930-03166iZZE142..4FC..VN200712-201010

NO.2

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-20131iZZE14#..(16J,18G,18V)..TAIW200712-200811

main35104-20132iZZE14#..4FC..(IDN,MA,PHL,TH)201003-201008

main35104-33091iZRE143200811-201002

main35104-33092iZRE143..VN201002-201010

main35104-52032iZRE141..4FC..(16E,16G,16V,D,N,XLI)201007

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×5iZZE142..18V..(IDN,PHL)200712-200812

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×5iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200712-201008

35104VHOSE (FOR BREATHER PLUG)

main35121-12070iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)201007

main35121-21020iZRE143..IDN,PHL,TH200811-201008

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×2iZZE142..4FC..(IND,PKN)200712

main90250-10036×4iZRE143..TAIW200811-201007

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iZZE14#..(16J,18G,18V)..TAIW200712-200811

main90301-06021iZRE141,142,ZZE141..4FC201307

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iZZE14#..(16J,18G,18V)..TAIW200712-200811

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iZRE143,ZZE142..4FC..VN200712-201010

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33030iZRE143..TAIW200811-201007

main35106-52020iZZE142..4FC..VN200712-201010

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×19iZRE141..4FC..16J201007-201211

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-06320×2iZRE143..TAIW200811-201007

*6-1.00PX50-25,NO.1

main90105-08071×14iZZE142..18V..(IDN,PHL)200712-200812

*8-1.25PX30-25

main90105-08233×8iZRE143..IDN,PHL,TH200811-201008

*8-1.25PX42-30,NO.2

main90105-08353×8iZRE143..IDN,PHL,TH200811-201008

*8-1.25PX50-30,NO.3

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-10018×4iZRE141,142,ZZE141..4FC201307

main90301-10189×4iZZE14#..4FC..(IDN,MA,PHL,TH)201003-201008

35145CGASKET, TRANSAXLE CASE

main35145-21010×5iZZE142..18V..(IDN,PHL)200712-200812

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iZZE14#..(16J,18G,18V)..TAIW200712-200811

35159GASKET, BRAKE DRUM

main35159-21010iZZE14#..(16J,18G,18V)..TAIW200712-200811

35165PLATE, TRANSMISSION CASE, NO.1

main35165-52030iZRE141..4FC..16J201007-201211

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21020iZRE143..TAIW200811-201007

main35168-52020iZZE14#..(16J,18G,18V)..TAIW200712-200811

35179GASKET, OVERDRIVE BRAKE

main35179-32010×2iZZE14#..(16J,18G,18V)..TAIW200712-200811

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iZZE142..4FC..(IND,PKN)200712

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iZZE14#..(16J,18G,18V)..TAIW200712-200811

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-02010iZZE14#..(16J,18G,18V)..TAIW200712-200811

main35519-41010iZRE143,ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,20G,20V)..(IDN,MA,PHL,TH)200801-201008

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

3292812060CLAMP, FLEXIBLE HOSE, NO.1

main32928-12060

90119T0237

main90119-T0237

9046400905

main90464-00905

9161160628

main91611-60628

9167180816

main91671-80816

46 parts on this diagram · 4 diagrams in section
