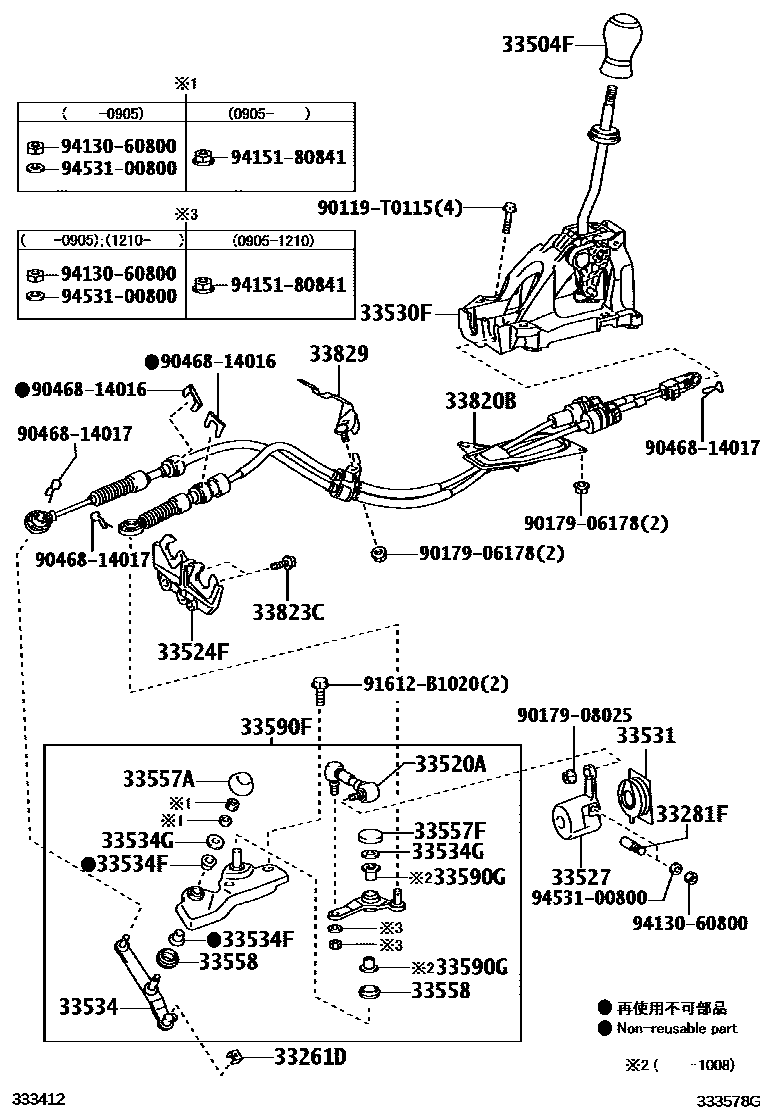

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iZZE141..16E..TH200801-201105

33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)

main33281-16020iZZE141..16E..TH200801-201105

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02280-B0iZZE141..16E..PHL;ZZE141..5F..(16J,LIMO)200801-201311

DK.GRAY,TRIM1#

main33504-02280-B0iCE140,NZE140..20D,GLI,XLI201104-201406

DK.GRAY,TRIM4#

main33504-02280-E0iZZE141..16E..TH200801-201105

ASH BROWN,TRIM4#

main33504-02290-B0iZRE142..18E..TH201008-201311

DK.GRAY,TRIM1#,4#

main33504-02290-B0iZZE141..4FC..16J..TH200801-201211

DK.GRAY,TRIM1#

main33504-02290-B0iZRE141,142,ZZE141..RHD..(16G,18EL,D)201008-201406

DK.GRAY,TRIM4#

main33504-02290-E0iZZE142..18E..TH200801-201008

ASH BROWN,TRIM4#

main33504-02360-B0iZRE142..6F..18J201008-201312

DK.GRAY,TRIM4#

main33504-02360-B0iZRE141..6F..(16E,16J)201008-201311

DK.GRAY,TRIM1#

main33504-02420-B0iZRE142..MA;ZRE142..18G..HTWCF201201-201311

DK.GRAY,TRIM1#,4#

main33504-02420-B0iZRE142..MA;ZRE142..18G..HTWCF201201-201311

DK.GRAY,TRIM1#

main33504-02420-B0iZRE143..MA,TH;ZRE141..4FC..16G..PHL201201-201311

SINGAPORE SPEC,DK.GRAY,TRIM4#

main33504-02420-B0iZRE142..TH..HTWC201201-201407

DK.GRAY,TRIM4#

main33504-06070-B0iZRE141,142..XLI201007-201310

DK.GRAY,TRIM1#,4#

main33504-06070-B0iZRE142..18J..TAIW200712-201310

DK.GRAY,TRIM1#

main33504-06070-E0iZZE14#..XLI200901-201007

ASH BROWN,TRIM4#

main33504-06100-B0iZZE142..(18G,18V)..TAIW200712-201007

DK.GRAY,TRIM1#

main33504-06100-B0iZRE142,143..LHD..(18E,20G,G,GLI)201007-201310

DK.GRAY,TRIM1#,4#

main33504-06100-E0iZZE142..(18G,18V)..TAIW200712-201007

ASH BROWN,TRIM4#

main33504-12310-B1iZZE14#..LHD..5F..(16G,18G)200802-201008

DK.GRAY,TRIM1#

sub33504-52220

sub33504-12310

main33504-12310-B1iCE140..20DSA201104-201406

DK.GRAY,TRIM4#

sub33504-52220

sub33504-12310

main33504-12310-E0iCE140..20DSA200808-201105

ASH BROWN,TRIM4#

sub33504-52220

sub33504-12310

main33504-12330-B1iNDE140,ZRE141,142..6F..(18G,E,G,N)201010-201407

DK.GRAY,TRIM4#

sub33504-12330

main33504-12330-B1iZRE141..6F..16G201008-201311

DK.GRAY,TRIM1#

sub33504-12330

main33504-12330-E0iNDE140201006-201105

ASH BROWN,TRIM4#

sub33504-12330

main33504-12460-B0iZRE143..IDN,PHL;ZRE141..4FC..(16E,16V,N);ZRE142..CVFC..18G..(IDN,IND,TH,VN)200802-201201

DK.GRAY,TRIM1#

sub33504-72020

main33504-12460-B0iZRE143..IDN,PHL;ZRE141..4FC..(16E,16V,N);ZRE142..CVFC..18G..(IDN,IND,TH,VN)201008-201201

DK.GRAY,TRIM1#,4#

sub33504-72020

main33504-12460-B0iZRE143..IDN,PHL;ZRE141..4FC..(16E,16V,N);ZRE142..CVFC..18G..(IDN,IND,TH,VN)201008-201201

DK.GRAY,TRIM4#

sub33504-72020

main33504-12460-B0iZRE143..IDN,PHL;ZRE141..4FC..(16E,16V,N);ZRE142..CVFC..18G..(IDN,IND,TH,VN)201008-201201

SINGAPORE SPEC,DK.GRAY,TRIM4#

sub33504-72020

main33504-12460-E0iZRE143,ZZE14#..4FC..(16E,16V,18G,20G,20V)..(IDN,MA,PHL,TH)200801-201105

ASH BROWN,TRIM4#

sub33504-72020

main33504-12460-E0iZZE141..16G..TH200801-201008

SINGAPORE SPEC,ASH BROWN,TRIM4#

sub33504-72020

main33504-12470-B4iZRE142,143..(18V,20V)..(IND,VN)201010-201407

DK.GRAY & DARK BROWN,TRIM4#

main33504-12470-E1iZZE142..18V..IND200808-201105

ASH BROWN,TRIM4#

33520ASHAFT ASSY, FLOOR SHIFT CONTROL

main33520-52050iZZE141..16E..TH200801-201105

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-28020iCE140200808-201104

main33524-52050iNZE140200808-201104

main33524-52060iZZE142..5F..IND200801-201311

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-52011iNZE140200801-201105

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-02220iZZE14#..5F..(16J,18J,LIMO)..(IDN,TH)200801-201105

main33530-02230iZZE141..5F..PHL200802-201010

main33530-02250iNDE140,ZRE141,142..RHD..6F201008

main33530-02260iZRE141,142..LHD..6F201008

main33530-12A71iNDE140201006-201105

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-17010iNZE140,ZZE141..5F200801-201105

33534BELLCRANK, SELECTING

main33534-12120iZZE141..16E..TH200801-201105

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022iZZE141..16E..TH200801-201105

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iNZE140,ZZE141..5F200801-201105

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iZZE141..16E..TH200801-201105

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-20010iZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)200801-201105

main33557-33010iCE140200808-201104

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iZZE141..16E..TH200801-201105

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-12070iNZE140,ZZE141..5F200801-201105

33590GBUSH (FOR SELECTING BELL CRANK)

main33546-20020iZZE141..16E..TH200801-201105

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-02640iZZE142..5F..PKN200801-201311

main33820-02650iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200801-201311

main33820-02690iZRE143..VN200812-201010

main33820-02760iNDE140201006-201312

main33820-02770iZRE141..4FC..(16E,16G,16V,D,N)201008-201211

main33820-02780iZRE141,142..6F..(IDN,PHL,PKN,TH,VN)201008

main33820-02790iZRE142..18G..TH201008-201211

main33820-02800iZRE143..CVFC..(IDN,MA,PHL,TH,VN)201008

main33820-02820iZRE142..6F..IND201105-201312

main33820-12C40iNZE140200808-201104

sub33820-12J00

main33820-12D20iCE140200808-201104

main33820-12D30iZZE14#..LHD..(18E,18J,GLI,XLI)200712-201310

main33820-12E80iZRE143..TAIW200811-201007

sub33820-12J10

main33820-12F20iZRE141..GCC201007-201310

main33820-12F30iZRE142..TAIW201007-201310

main33820-12F40iZRE143..TAIW201007-201310

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-02130iZZE142..18V..(IDN,PHL)200801-201211

sub33823-12280

main33823-02140iZRE141,142..GCC200712-201310

main33823-02170iZRE143..IDN,PHL,TH200812-201010

main33823-02180iZRE143..TAIW200811-201007

main33823-02210iZRE143..CVFC..(IDN,MA,PHL,TH,VN)201008

main33823-02220iZRE142..18G..TH201008-201211

main33823-02230iZRE142..TAIW201007-201310

main33823-02240iZRE143..TAIW201007-201310

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08C60iNDE140,ZRE141,142..6F201008-201407

main90119-08C60iNDE140201006-201105

*201,*206

main90119-T0029iZZE142..4FC..IND200801-201211

main90119-T0029iZRE143..IDN,PHL,TH200812-201010

(L)

main91611-B0816iZRE142,143..TAIW200712-201310

main91611-B0816iZRE143..IDN,PHL,TH200812-201010

(J)

main91611-G0820iCE140200808-201104

main91612-61030iZZE142..5F..PKN200801-201406

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33829-02100iZRE142..18G..TH200801-201211

NO.1

main33829-02100iCE140,NZE140200801-201104

main33829-02110iZRE14#..LHD..(20G,G,GLI,XLI)200712-201310

NO.1

main33829-02120iZZE142..4FC..VN200801-201211

NO.2

main33829-02130iZRE141,142..GCC200712-201310

NO.2

main33829-02170iZRE143..IDN,PHL,TH200812-201010

NO.2

main33829-02180iZRE143..TAIW200811-201007

NO.2

main33829-02220iZRE141,142..6F..(IDN,PHL,PKN,TH,VN)201008

main33829-02231iZRE143..CVFC..(IDN,MA,PHL,TH,VN)201008

NO.2,TYPE A

main33829-02241iZRE143..TAIW201007-201101

NO.2,TYPE A

main33829-02242iZRE143..TAIW201101-201310

NO.2,TYPE B

main33829-02250iNDE140,ZRE142..6F..IND201006-201312

90119T0115

main90119-T0115

9017906178

main90179-06178

9017908025

main90179-08025

9046814016

main90468-14016

9046814017

main90468-14017

91612B1020

main91612-B1020

9413060800

main94130-60800

9415180841

main94151-80841

9453100800

main94531-00800

29 parts on this diagram · 7 diagrams in section
