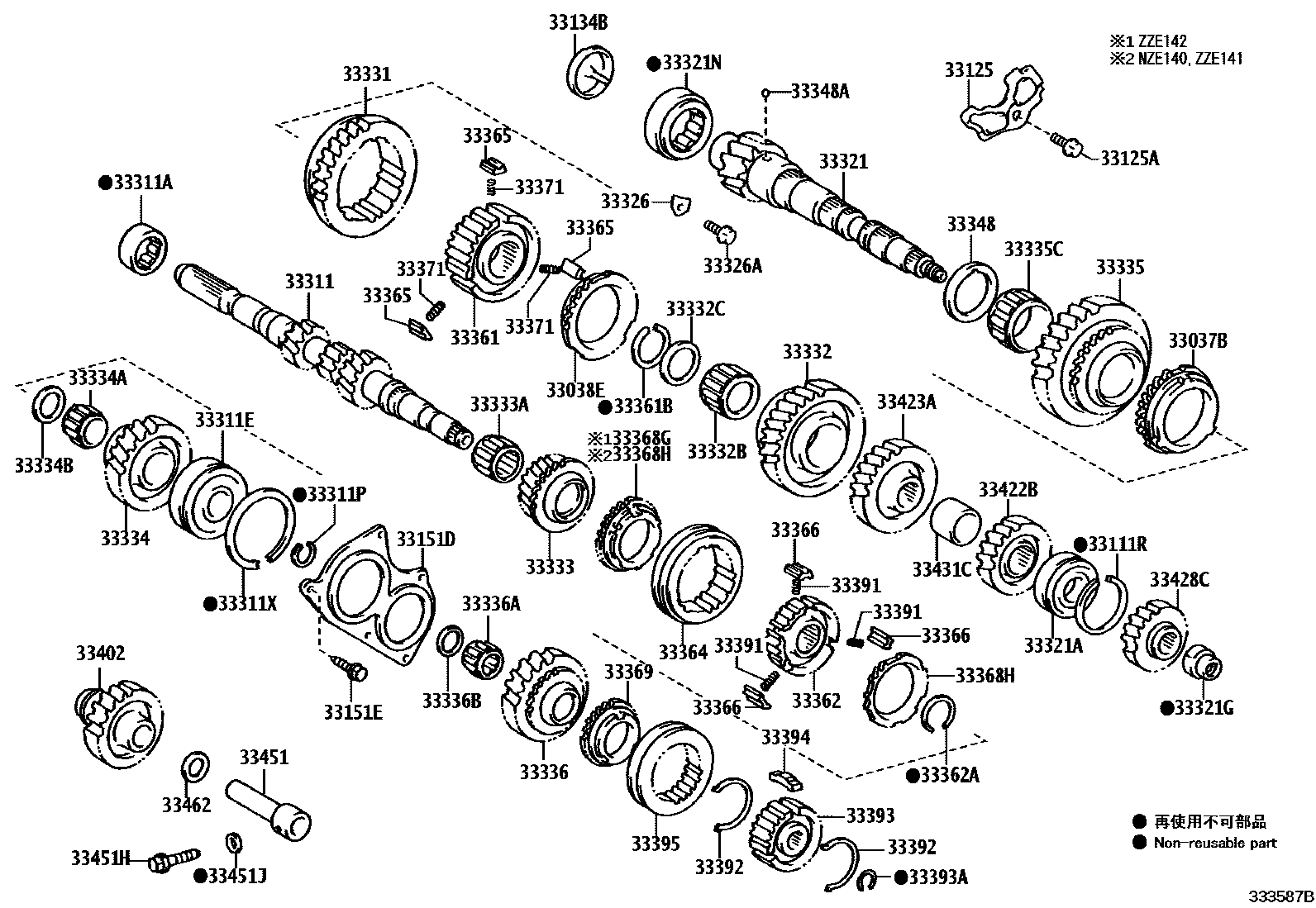

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
*201,*206
33038ERING SET, SYNCHRONIZER, NO.2
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33125RECEIVER, MANUAL TRANSAXLE CASE
33125ABOLT(FOR TRANSAXLE CASE RECEIVER)
33134BCOVER, OUTPUT SHAFT(MTM)
*201,*206
33151DRETAINER, BEARING, REAR(MTM)
33151EBOLT(FOR REAR BEARING RETAINER)
33311SHAFT, INPUT
*201
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
*201,*206
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.29-2.34,MARK A
T=2.35-2.40,MARK B
T=2.41-2.46,MARK C
T=2.47-2.52,MARK D
T=2.53-2.58,MARK E
T=2.59-2.64,MARK F
T=2.35-2.40,MARK 1
T=2.40-2.45,MARK 2
T=2.45-2.50,MARK 3
T=2.50-2.55,MARK 4
T=2.55-2.60,MARK 5
T=2.60-2.65,MARK 6
T=2.65-2.69,MARK 7
T=2.70-2.74,MARK 8
33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)
33321SHAFT, OUTPUT
*201
*206
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33326PLATE, BEARING LOCK
33326ABOLT (FOR BEARING LOCK PLATE)
33331GEAR, REVERSE
33332GEAR, 2ND
*206
*201
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
*201,*206
33332CSPACER (FOR 2ND GEAR BEARING)
33333GEAR, 3RD
*201
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334GEAR, 4TH
*201
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
*201,*206
33334BSPACER (FOR 4TH GEAR BEARING)
33335GEAR, 1ST
*206
*201
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
*201,*206
33336GEAR, 5TH
*201
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.50-2.55,MARK A
T=2.56-2.61,MARK B
T=2.62-2.67,MARK C
T=2.68-2.73,MARK D
T=2.74-2.79,MARK E
T=2.80-2.85,MARK F
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.30-2.35,MARK 0
T=2.36-2.41,MARK 1
T=2.42-2.47,MARK 2
T=2.48-2.53,MARK 3
T=2.54-2.59,MARK 4
T=2.60-2.65,MARK 5
T=1.95-1.99,MARK 1
T=2.00-2.04,MARK 2
T=2.05-2.09,MARK 3
T=2.10-2.14,MARK 4
T=2.15-2.19,MARK 5
T=2.20-2.24,MARK 6
T=1.85-1.89,MARK 7
T=1.90-1.94,MARK 8
T=2.30-2.35,MARK H
T=2.35-2.40,MARK J
T=2.40-2.45,MARK K
T=2.45-2.50,MARK L
T=2.50-2.55,MARK M
T=2.55-2.60,MARK N
T=2.60-2.65,MARK P
T=2.27,MARK 0,*201,*206
T=2.32,MARK 1,*201,*206
T=2.37,MARK 2
T=2.42,MARK 3,*201,*206
T=2.47,MARK 4
T=2.52,MARK 5
T=2.57,MARK 6,*201,*206
T=2.62,MARK 7,*201,*206
33364SLEEVE, TRANSMISSION HUB, NO.2
*201
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368GRING, SYNCHRONIZER (FOR 3RD GEAR)
33368HRING, SYNCHRONIZER (FOR 4TH GEAR)
33369RING, SYNCHRONIZER, NO.3
*201,*206
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
NO.1
NO.2
33393HUB, TRANSMISSION CLUTCH, NO.3
*201,*206
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.25-2.30,MARK A
T=2.31-2.36,MARK B
T=2.37-2.42,MARK C
T=2.43-2.48,MARK D
T=2.49-2.54,MARK E
T=2.55-2.60,MARK F
T=2.61-2.66,MARK G
T=1.75-1.80,MARK A
T=1.80-1.85,MARK B
T=1.85-1.90,MARK C
T=1.90-1.95,MARK D
T=1.95-2.00,MARK E
T=2.00-2.05,MARK F
T=2.05-2.10,MARK G
T=2.10-2.15,MARK H
T=2.15-2.20,MARK J
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
*201
33402GEAR SUB-ASSY, REVERSE IDLER
*201,*206
33422BGEAR, 4TH DRIVEN
*201
33423AGEAR, 3RD DRIVEN
*201
33428CGEAR, 5TH DRIVEN
*201
33431CSPACER, OUTPUT GEAR
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
*201,*206
33462WASHER, REVERSE IDLER THRUST
*201,*206
61 parts on this diagram · 3 diagrams in section
