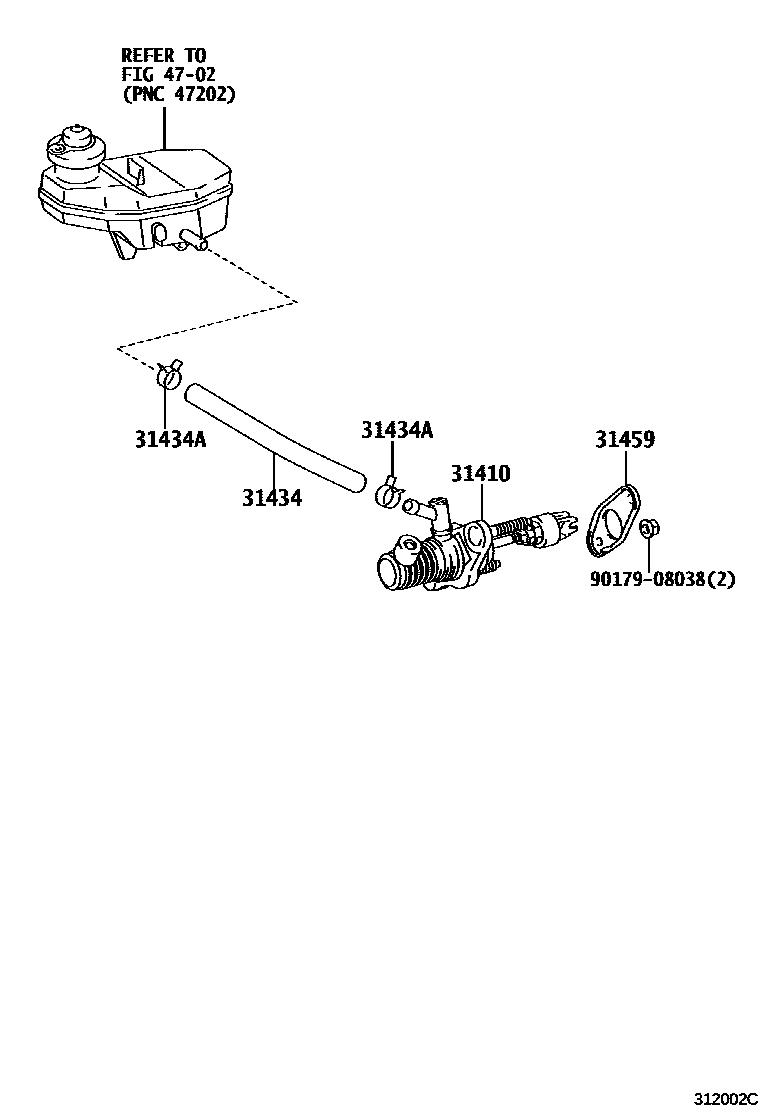

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-02080iCE140,NZE140,ZRE141..MTM..PKN201212

main31420-12030iCE140,NZE140,ZRE141..MTM..PKN201008-201212

31434TUBE, CLUTCH RESERVOIR

main31434-12140iCE140,NZE140200801-201104

main31434-12150iZRE141,142..LHD..6F201008

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96136-41801×2iZZE141..16E..TH200801-200812

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-42040iZZE141..16E..TH200801-200812

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

6 parts on this diagram · 2 diagrams in section
