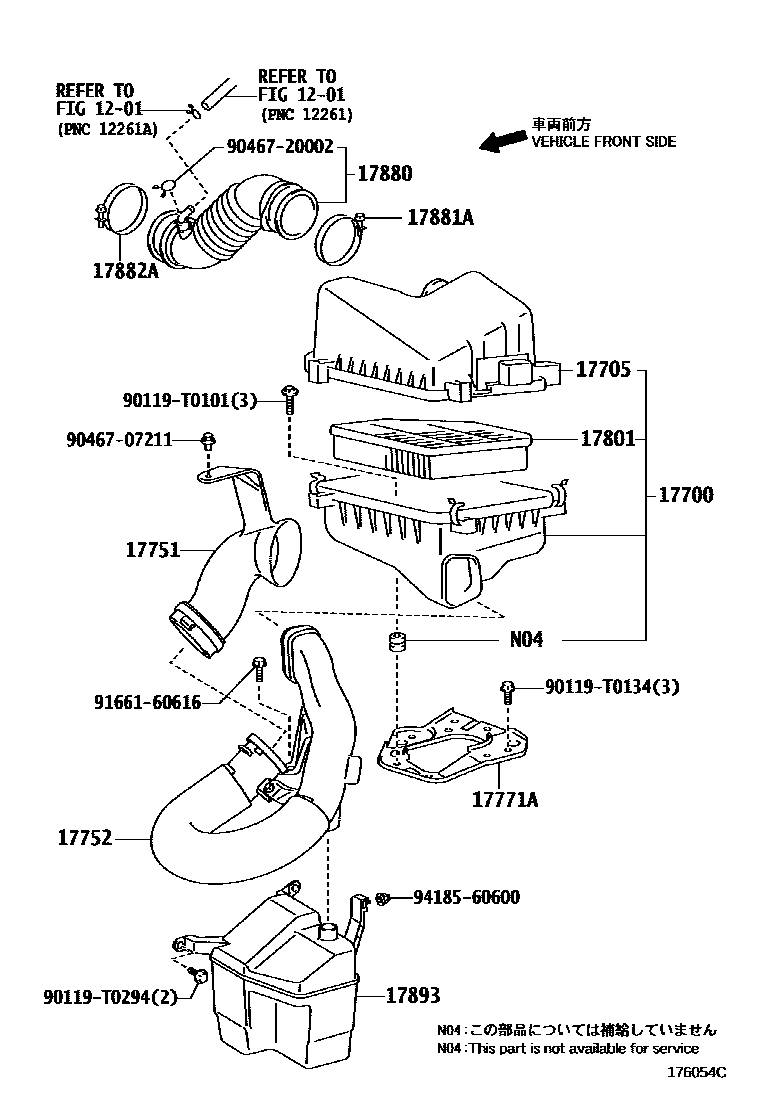

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0010 1 0011 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-0B040i2C..CE140200808-201104

main17700-0D220i1ZZFE..ZZE142..PKN200801

main17700-0D230i1ZZFE,3ZZFE..ZZE14#..(16J,18G,18V)..TAIW200712-200811

main17700-0T100i1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW201007-201103

main17700-0T101i1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW201104-201310

main17700-0T110i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201008-201211

main17700-21181i2NZFE..NZE140201104

main17700-33210i1NDTV..NDE140201006-201105

17705CAP SUB-ASSY, AIR CLEANER

main17705-0B040i2C..CE140200808-201104

main17705-0D230i3ZZFE..ZZE141201008-201107

main17705-0D231i3ZZFE..ZZE141201108-201311

main17705-0D240i1ZZFE,3ZZFE..ZZE14#..GCC,TAIW200712-201007

main17705-0D250i1ZZFE..ZZE142..IND200808-201103

main17705-0D251i1ZZFE..ZZE142201104-201105

main17705-0T100i1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW201007-201103

main17705-0T101i1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW201104-201310

main17705-0T110i3ZRFE..ZRE143..4FC..(IDN,PHL,TH,VN)200812-201010

main17705-0T111i2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE,3ZRFE..ZRE14#..(16E,16G,16V,18E,18J,20G,20V,D,N)..(IDN,MA,PHL,PKN,TH,VN)..HTWC201108

main17705-0T141i2ZRFE..ZRE142..IND201105-201312

main17705-21161i2NZFE..NZE140200808-201103

main17705-21162i2NZFE..NZE140201104

main17705-33080i1NDTV..NDE140201105-201312

17751INLET, AIR CLEANER, NO.1

main17751-21190i2C..CE140; 2NZFE..NZE140201104

main17751-33090i1NDTV..NDE140201105-201312

main17751-37060i3ZZFE..ZZE141..16E..TH;1ZZFE..ZZE142..18V..(IDN,PHL)200712-200812

17752INLET, AIR CLEANER, NO.2

main17752-21120i2NZFE..NZE140201104

main17752-33020i1NDTV..NDE140201006-201105

main17752-37070i3ZZFE..ZZE141..16E..TH;1ZZFE..ZZE142..18V..(IDN,PHL)200712-200812

main17752-64020i2C..CE140200808-201104

17771ABRACKET, AIR CLEANER

main17771-0N020i1NDTV..NDE140201006-201105

main17771-64010i2C..CE140200808-201104

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0M020i1ZZFE,3ZZFE..ZZE14#..(16J,18G,18V)..TAIW200712-200811

main17801-21050i2NZFE..NZE140200808-201104

main17801-26020i2C..CE140201104

17880HOSE ASSY, AIR CLEANER

main17880-33090i1NDTV..NDE140201105-201312

main17880-64480i2C..CE140200808-201104

17881HOSE, AIR CLEANER, NO.1

main17880-0T100i3ZRFE..ZRE143..IDN,PHL,TH200811-201008

main17880-21150i2NZFE..NZE140200808-201104

main17881-0D260i3ZZFE..ZZE141..16E..TH200801-200812

main17881-0D270i3ZZFE..ZZE141..GCC200712-201007

main17881-0D280i1ZZFE..ZZE142..(18E,18G,18J)..(IDN,MA,TH)200801-201008

main17881-0D300i1ZZFE..ZZE142..(18G,18V)..TAIW200712-200811

main17881-0T150i1ZRFE..ZRE141..6F..TH;1ZRFE..ZRE141..16E,16G,16V,D,N201008

main17881-0T160i2ZRFE..ZRE142..18G..TH201008-201211

main17881-0T170i3ZRFE..ZRE143..CVFC..(IDN,MA,PHL,TH,VN)201008

main17881-0T190i2ZRFE..ZRE142..TAIW201007-201310

main17881-0T200i3ZRFE..ZRE143..TAIW201007-201310

main17881-0T220i1ZRFE,2ZRFE..ZRE141,142..GCC201007-201310

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-T0004i2C..CE140201309

main90460-T0010i1NDTV,2NZFE..NDE140,NZE140; 1ZRFE,2ZRFE,3ZRFE..ZRE14#..IDN,IND,MA,PHL,PKN,TH,VN201309

main96111-10650i3ZZFE..ZZE141..TAIW200712-200811

NO.2

main96111-10750i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201007-201211

main96111-10780i1ZZFE..ZZE142..PKN200712

NO.2

main96111-10830i1ZZFE..ZZE142..PKN200712

NO.1

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-T0004i2C..CE140; 2NZFE..NZE140201309

main90466-54002i1NDTV..NDE140201006-201105

main96111-10650i2C..CE140; 2NZFE..NZE140201104-201308

main96111-10780i2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G)201007

17893RESONATOR, INTAKE AIR

main17893-22030i1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

90119T0101

main90119-T0101

90119T0134

main90119-T0134

90119T0294

main90119-T0294

9046707211

main90467-07211

9046720002

main90467-20002

9166160616

main91661-60616

9418560600

main94185-60600

19 parts on this diagram · 9 diagrams in section
