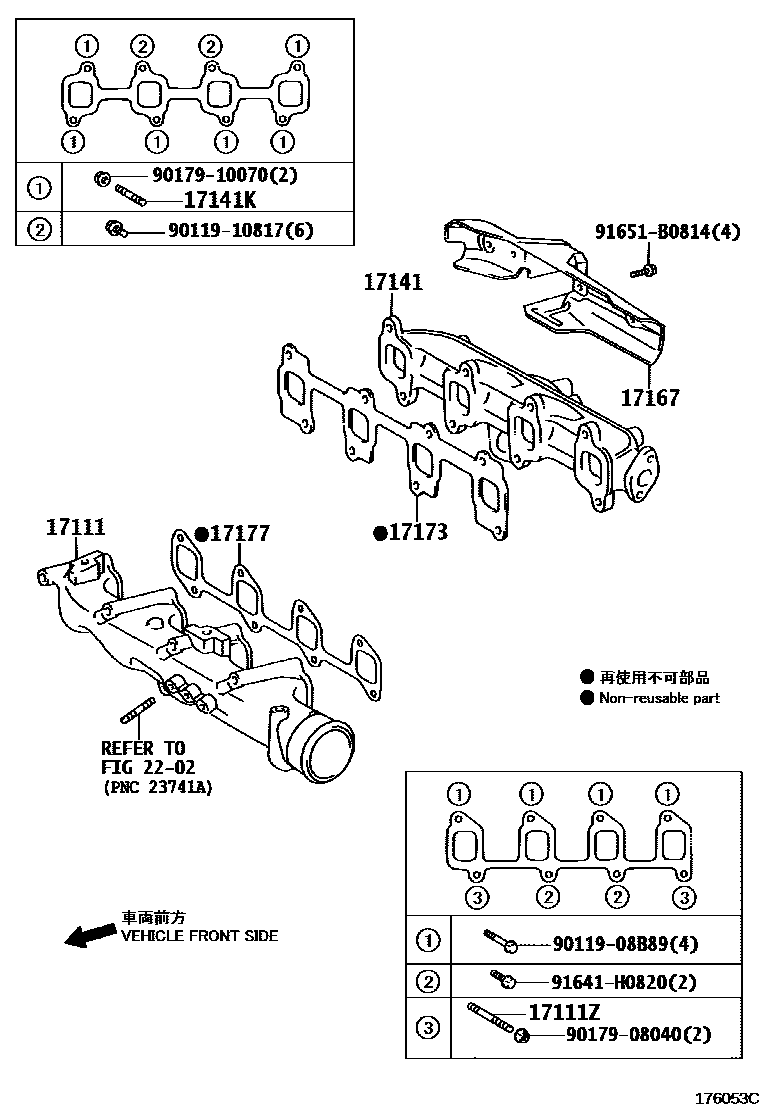

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17111MANIFOLD, INTAKE

main17101-21090i2NZFE..NZE140201104

main17111-64150i2C..CE140201104

main17120-0D070i3ZZFE..ZZE141201008-201311

main17120-0T090i1ZRFE,2ZRFE..ZRE141,142..(4FC,6F)..(GCC,MA,PHL,TH)201203-201311

(L)

main17120-0T100i2ZRFE,3ZRFE..ZRE142,143..IDN,MA,PHL,TAIW,TH,VN201203-201407

(L)

main17120-22070i1ZZFE..ZZE142200712-201105

main17120-37022i1ZRFE,2ZRFE..ZRE141,142..(4FC,6F)..(GCC,MA,PHL,PKN,TH)201007-201406

(J)

main17120-37030i3ZRFE..ZRE143200811-200910

main17120-37031i3ZRFE..ZRE143..4FC200910-201010

main17120-37070i2ZRFE,3ZRFE..ZRE142,143..6F,CVFC201007-201407

(J)

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i2NZFE..NZE140201104

main92122-60820×2i2C..CE140200808-201104

17141MANIFOLD, EXHAUST

main17104-22100i3ZZFE..ZZE141..16E..TH;1ZZFE..ZZE142..18V..(IDN,PHL)200712-200812

main17141-0T010i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201203-201211

(L)

main17141-0T090i3ZRFE..ZRE143201203

(L)

main17141-21140i2NZFE..NZE140201104

main17141-33050i1NDTV..NDE140201105-201312

main17141-37051i2ZRFE..ZRE142..GCC201007-201310

main17141-37080i3ZRFE..ZRE143..VN200811-201010

main17141-37130i2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..IDN,IND,MA,TAIW,VN;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC201007

(J)

main17141-37140i3ZRFE..ZRE143..CVFC201007

(J)

main17141-64310i2C..CE140200808-201104

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08037×2i2NZFE..NZE140201104

main90126-10017×2i2C..CE140200808-201104

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21130i2NZFE..NZE140200808-201104

main17167-22080i1ZZFE..ZZE142..VN200712-201010

main17167-37011i2ZRFE..ZRE142..GCC201007-201310

main17167-37050i3ZRFE..ZRE143..TAIW200811-201007

main17167-37110i1ZRFE..ZRE141;2ZRFE..ZRE142..6F,CVFC201007-201407

main17167-64120i2C..CE140200808-201104

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0T041i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201203-201211

(L)

main17173-21020i2NZFE..NZE140201104

main17173-22010i1ZZFE..ZZE142..VN200712-201010

main17173-33030i1NDTV..NDE140201006-201105

main17173-37010i2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G)201007

(J)

main17173-64060i2C..CE140201104

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-0D030i3ZZFE..ZZE141..16E..(MA,PHL);3ZZFE..ZZE141..(16G,16J,16V,LIMO)..(PHL,TH)200712-201008

(L)

main17171-22030i1ZZFE..ZZE142..(18E,18G,18J)..(IDN,MA,TH); 3ZZFE..ZZE141..16E..(MA,PHL);3ZZFE..ZZE141..(16G,16J,16V,LIMO)..(PHL,TH)200712-201008

(J)

main17177-21020i2NZFE..NZE140200808-201104

main17177-21030i2NZFE..NZE140201302

main17177-37030i3ZRFE..ZRE143..VN200811-201010

main17177-64020i2C..CE140200808-201104

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

9011908B89

main90119-08B89

9011910817

main90119-10817

9017908040

main90179-08040

9017910070

main90179-10070

91641H0820

main91641-H0820

91651B0814

main91651-B0814

14 parts on this diagram · 7 diagrams in section
