VENTILATION HOSE

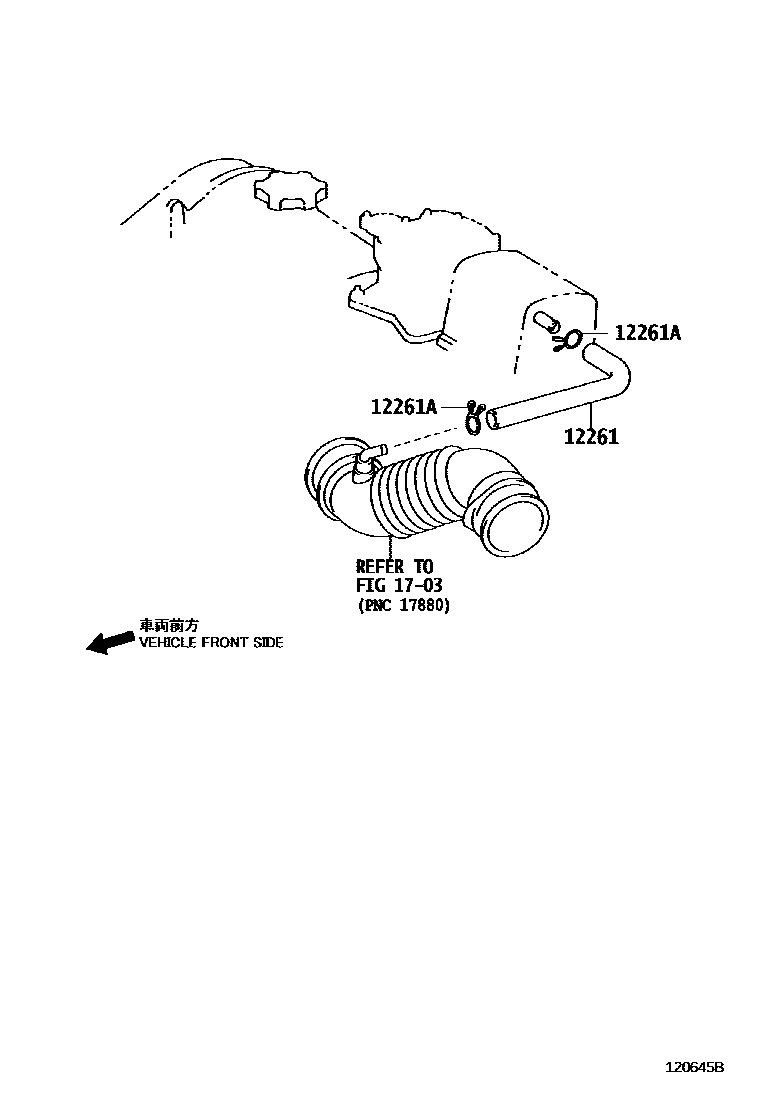

Parts diagram
12261HOSE, VENTILATION
main12261-0D100i200801
main12261-0D120i200712-201007
main12261-0D130i201008-201311
main12261-0D140i200712-201007
main12261-0T050i201007-201311
(L),*264
main12261-0T060i201007-201211
(L)
main12261-21030i200808-201104
main12261-33120i201105-201312
main12261-37040i201007-201311
(J),*264
main12261-37050i201007-201211
(J)
main12261-37080i201003-201007
main12261-64330i200808-201104
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90466-22005i201111-201312
*119,NO.2
main90466-23003i201104
NO.2
main90466-T0032i201301
(L),*264,NO.2
main90467-15120i200811-201007
NO.1
main90467-18003×2i200808-201104
main90467-21152i200712-201010
main90467-23002i201211-201311
(J),NO.2
main90467-24038i200808-200908
NO.2
1703AIR CLEANER
→ Go to FIG 17-03

3 parts on this diagram · 7 diagrams in section
