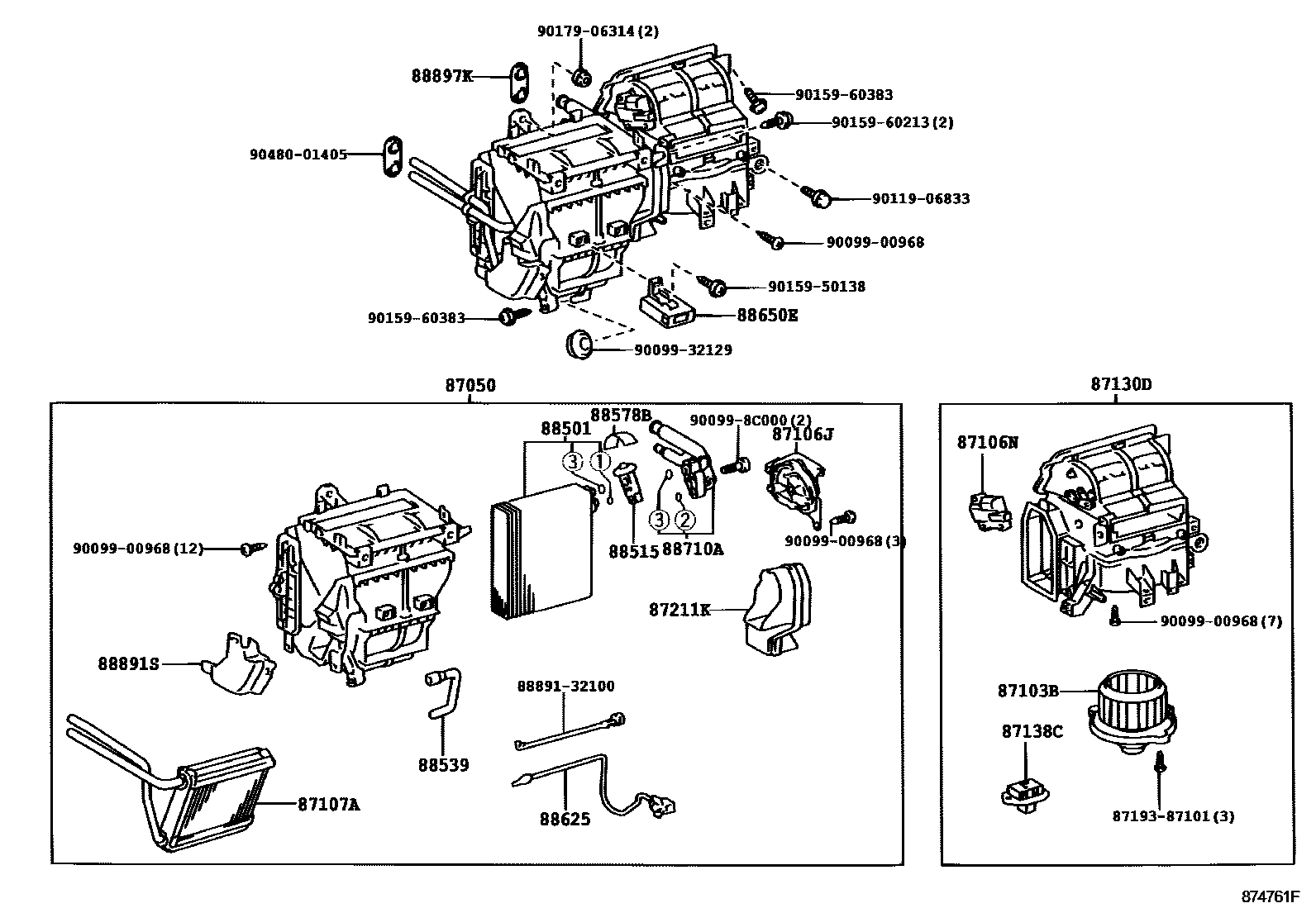

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0004 1AUTO AIR CONDITIONER 0007 1MANUAL AIR CONDITIONER 0009 1AUTO AIR CONDITIONER 0011 1MANUAL AIR CONDITIONER 0012 1 0013 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02360iZZE122..18J..IND200301-200508

main87050-02370iZZE122..(18E,18G)..IND200301-200508

main87050-8C000iZZE122..VN200103-200404

main87050-8C001iZZE12#..(16E,18E,18G)..TAIW200103-200211

main87050-8C003iZZE122..TAIW200211-200309

main87050-8C006iZZE122..TAIW200309-200411

main87050-8C007iZZE121..TAIW200310-200411

main87050-8C008iZZE122..TAIW200411-200712

main87050-8C009iZZE122..VN200411-200712

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-12070iZZE12#..TAIW,VN200103-200712

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-02080iZZE122..TAIW200105-200801

main87106-8C000iZZE122..VN200103-200712

main87106-8C002iZZE12#..(16E,18E,18G)..TAIW200103-200211

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-12150iZZE12#..(16E,16J,18E,18G,18J)..(IDN,MA,TH)200105-200801

main87106-8C001iZZE122..VN200103-200712

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-8C000iZZE12#..(16E,18E,18G)..TAIW200103-200712

87130DBLOWER ASSY

main87130-02110iZZE121..16J..PHL200109-200802

main87130-12450iZZE122..(18E,18G)..IND200301-200808

main87130-8C000iZZE122..VN;ZZE121..16J..TAIW200103-200808

main87130-8C001iZZE12#..(16E,18E,18G)..TAIW200103-200309

main87130-8C003iZZE122..TAIW200309-200310

main87130-8C004iZZE122..TAIW200310-200411

main87130-8C005iZZE121..TAIW200310-200411

main87130-8C006iZZE122..TAIW200411-200712

main87130-8C007iZZE121..TAIW200411-200712

87138CRESISTOR, BLOWER

main87138-20350iZZE12#..(16,16E,16J,18J)..(IDN,TH)200311-200801

MANUAL AIR CONDITIONER

main87138-20350iZZE121..TH200105-200311

main87138-20360iZZE122..VN;ZZE121..16J..TAIW200103-200712

main87138-26150iZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)200311-200801

AUTO AIR CONDITIONER

87211KDUCT, AIR

main87211-8C000iZZE122..VN200103-200603

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02070iZZE12#..IDN,MA,TH200105-200801

main88501-02190iZZE12#..(16E,18G)..PHL200107-200802

main88501-12440iZZE122..IND200301-200508

main88501-12450iZZE12#..(16E,18E,18G)..TAIW200103-200309

main88501-8C000iZZE12#..TAIW200207-200411

main88501-8C001iZZE122..VN200411-200712

88515VALVE, COOLER EXPANSION

main88515-02080iZZE12#..TH200105-200801

main88515-28160iZZE12#..(16E,18G)..(MA,PHL)200107-200802

main88515-48040iZZE122..VN;ZZE121..16J..TAIW200103-200508

main88515-8C000iZZE122..VN200207-200404

main88515-8C001iZZE12#..TAIW200310-200808

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-02090iZZE121..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH200105-200801

main88539-12170iZZE122..IND200301-200508

main88539-12180iZZE12#..(16E,16G,18G)..PHL200107-200802

main88539-8C000iZZE12#..(16E,18E,18G)..TAIW200103-200712

88578BPACKING, COOLING UNIT, NO.1

main88578-12520iZZE122..TAIW200103-200403

88625THERMISTOR, COOLER, NO.1

main88625-60140iZZE122..IND,MA;ZZE121..ATM..MA200103-200802

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-02240iZZE121..16J..TAIW200103-200310

main88650-02300iZZE12#..(16,16E,16J,18J)..(IDN,TH)200105-200401

main88650-12A50iZZE12#..(16,16E,16J,18J)..(IDN,TH)200311-200801

main88650-1E410iZZE122..18J..IND200107-200712

main88650-1E420iZZE122..VN200107-200403

88710ATUBE ASSY, AIR CONDITIONER

main88710-0Z140iZZE12#..(16E,16G,18G)..PHL200107-200802

main88710-12540iZZE122..IND200301-200508

main88710-12550iZZE122..VN;ZZE121..16J..TAIW200103-200309

main88710-8C000iZZE122..VN200207-200712

88891SCOVER, COOLER, NO.1

main87237-12010iZZE12#..(16E,18E,18G)..TAIW200103-200712

88897KGROMMET, (FOR COOLER PIPE)

main88897-02190iZZE121..16J..PHL200107-200401

main90480-01434iNZE120,ZZE122;ZZE121..MA,TAIW,TH;ZZE121..(16E,16G)..PHL200103-200802

8719387101

main87193-87101

8889132100PACKING (FOR COOLER)

main88891-32100

9009900968

main90099-00968

9009932129

main90099-32129

900998C000

main90099-8C000

9011906833

main90119-06833

9015950138

main90159-50138

9015960213

main90159-60213

9015960383

main90159-60383

9017906314

main90179-06314

9048001405

main90480-01405

28 parts on this diagram · 7 diagrams in section
