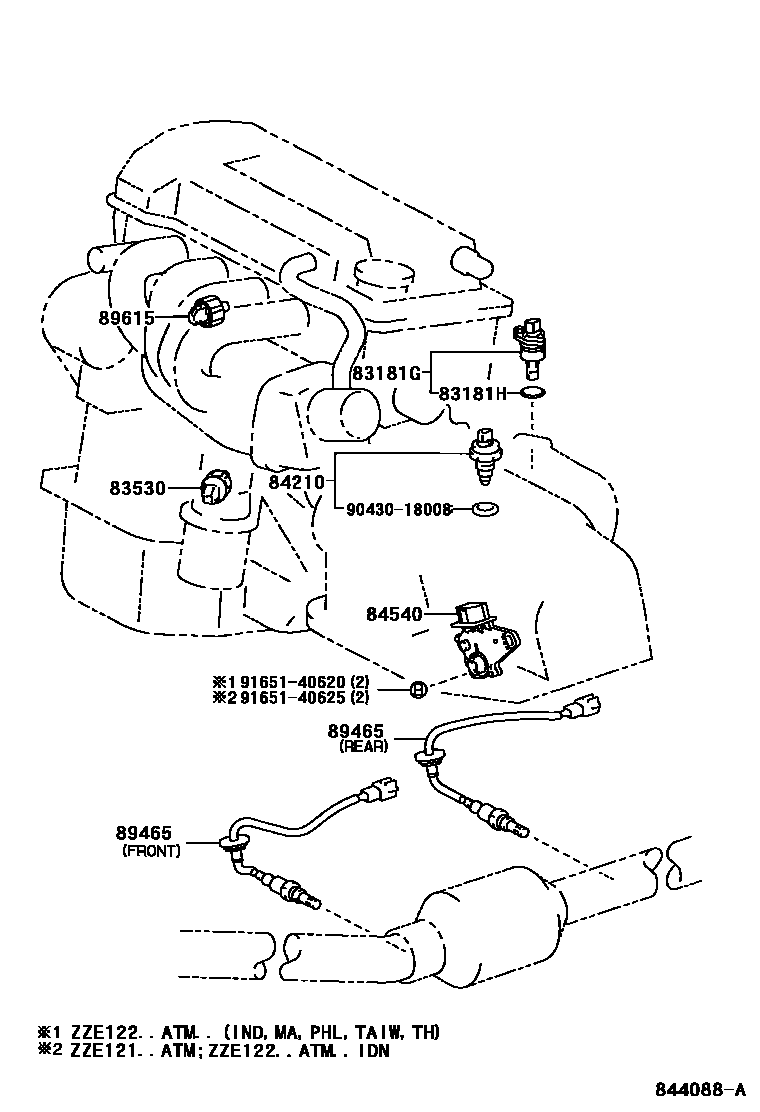

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1IGNITION & COMBINATION SWITCH0009 1IGNITION & COMBINATION SWITCH0010 1DOOR,ROOF,FLOOR & LUGGAGE

83181GSENSOR, SPEEDOMETER

main83181-12020iZZE121..MTM..16J..PHL200310-200802

main83181-12040iZZE122..18G..IND;ZZE122..18E..TAIW200211-200508

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iZZE122..18G..IND200310

main96711-24030iZZE122..MTM..IND200310

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNZE120,ZZE12#200103-200508

DENSO

main83530-60020iZZE121..ATM..MA;ZZE122..IND,MA,VN200310

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNZE120,ZZE12#..MTM200105-200508

84540SWITCH ASSY, NEUTRAL START

main84540-12230iZZE121..ATM;ZZE122..ATM..IDN200103-200203

main84540-32110iZZE121..16E..TAIW200203-200209

main84540-52010iZZE122..TAIW200310-200712

P/N LABEL=8454052010

main84540-52050iZZE122..ATM..(IDN,TH)200310-200801

P/N LABEL=8454052050

89465SENSOR, OXYGEN

main89465-02220iZZE122..PHL200407-200802

(L),FRONT

main89465-02230iZZE12#..TH200407-200801

(L),REAR

main89465-02240iZZE121..TAIW200503-200712

(L),FRONT

main89465-12620iZZE122..TAIW200310-200712

(J),FRONT

main89465-12640iZZE121..TH200310-200801

(J),FRONT

main89465-12700iZZE12#..TH200105-200508

REAR

89615SENSOR, KNOCK CONTROL

main89615-12120iZZE121..16E..TAIW200103-200210

main89615-52030iNZE120200107-200309

DENSO

main89615-52040iNZE120200107-200309

TOYOTA

9043018008

main90430-18008

9165140620

main91651-40620

9165140625

main91651-40625

10 parts on this diagram · 10 diagrams in section
