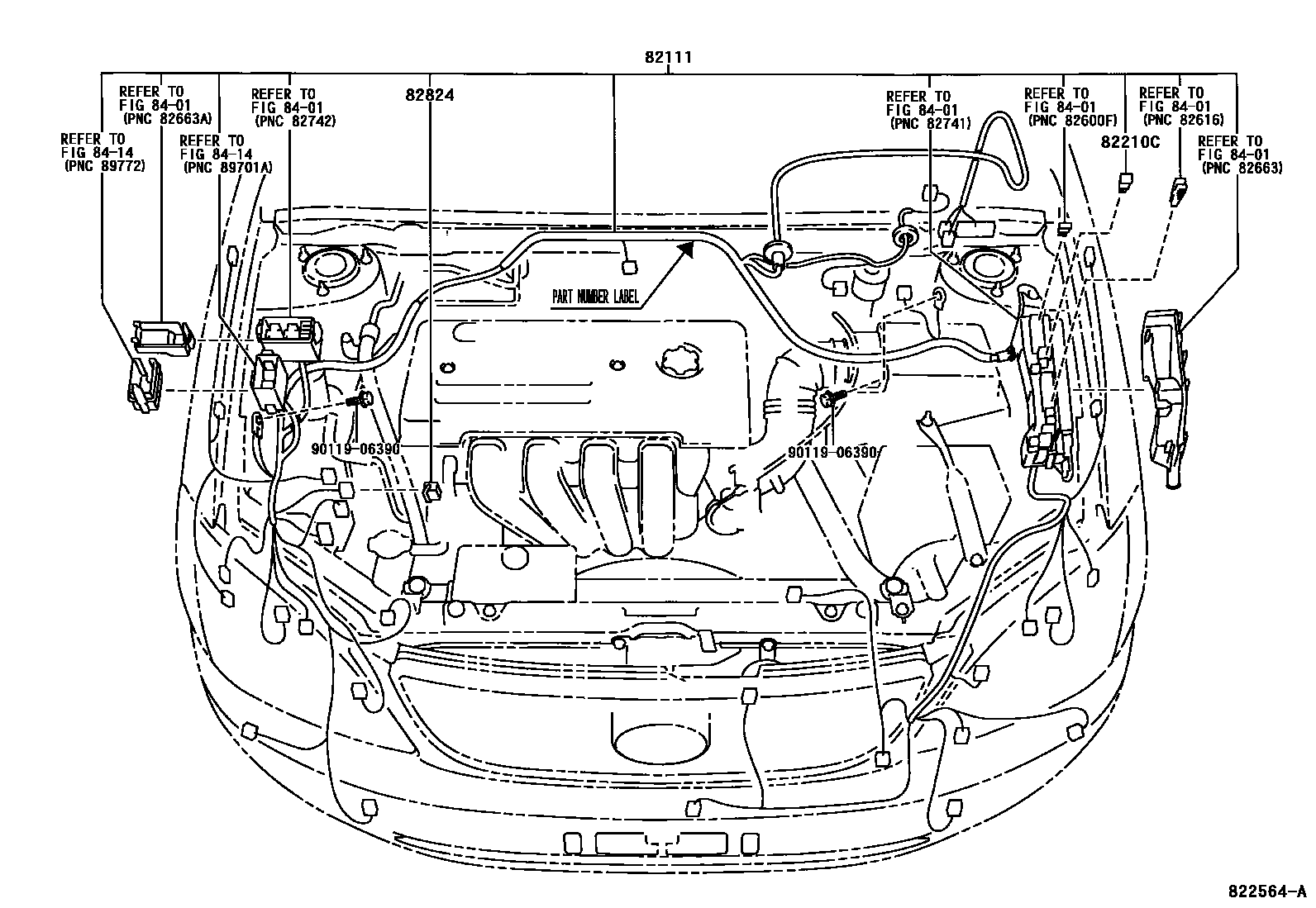

WIRING & CLAMP

82111WIRE, ENGINE ROOM MAIN

main82111-02A10i200310-200603

PART NUMBER LABEL=82111-02A10

main82111-02A20i200310-200603

PART NUMBER LABEL=82111-02A20

main82111-02A30i200310-200411

PART NUMBER LABEL=82111-02A30

main82111-02A31i200411-200603

PART NUMBER LABEL=82111-02A31

main82111-02A40i200310-200411

PART NUMBER LABEL=82111-02A40

main82111-02A41i200411-200603

PART NUMBER LABEL=82111-02A41

main82111-02A50i200311-200603

PART NUMBER LABEL=82111-02A50

main82111-02A60i200311-200603

PART NUMBER LABEL=82111-02A60

main82111-02A61i200603-200801

PART NUMBER LABEL=82111-02A61

main82111-02A70i200311-200603

PART NUMBER LABEL=82111-02A70

main82111-02A80i200311-200603

PART NUMBER LABEL=82111-02A80

main82111-02A81i200603-200801

PART NUMBER LABEL=82111-02A81

main82111-02A90i200311-200603

PART NUMBER LABEL=82111-02A90

main82111-02B00i200310-200603

PART NUMBER LABEL=82111-02B00

main82111-02B20i200310-200411

PART NUMBER LABEL=82111-02B20

main82111-02B21i200411-200603

PART NUMBER LABEL=82111-02B21

main82111-02B30i200311-200603

PART NUMBER LABEL=82111-02B30

main82111-02B40i200311-200603

PART NUMBER LABEL=82111-02B40

main82111-02B50i200401-200605

PART NUMBER LABEL=82111-02B50

main82111-02B60i200401-200605

PART NUMBER LABEL=82111-02B60

main82111-02B70i200401-200410

PART NUMBER LABEL=82111-02B70

main82111-02B71i200410-200802

PART NUMBER LABEL=82111-02B71

main82111-02B80i200401-200605

PART NUMBER LABEL=82111-02B80

main82111-02C00i200403-200605

PART NUMBER LABEL=82111-02C00

main82111-02C40i200401-200605

PART NUMBER LABEL=82111-02C40

main82111-02C50i200310-200411

PART NUMBER LABEL=82111-02C50

main82111-02C51i200411-200603

PART NUMBER LABEL=82111-02C51

main82111-02C70i200310-200603

PART NUMBER LABEL=82111-02C70

main82111-02C80i200310-200603

PART NUMBER LABEL=82111-02C80

main82111-02S60i200508-200605

PART NUMBER LABEL=82111-02S60

main82111-0Z090i200301-200404

PART NUMBER LABEL=82111-0Z090

main82111-0Z091i200404-200508

PART NUMBER LABEL=82111-0Z091

main82111-0Z100i200301-200404

PART NUMBER LABEL=82111-0Z100

main82111-0Z101i200404-200508

PART NUMBER LABEL=82111-0Z101

main82111-0Z240i200211-200310

PART NUMBER LABEL=82111-0Z240

main82111-0Z250i200211-200311

PART NUMBER LABEL=82111-0Z250

main82111-0Z260i200211-200311

PART NUMBER LABEL=82111-0Z260

main82111-0Z760i200608

PART NUMBER LABEL=82111-0Z760

main82115-02330i200105-200311

PART NUMBER LABEL=82115-02330

main82115-02340i200105-200311

PART NUMBER LABEL=82115-02340

main82115-02350i200105-200311

PART NUMBER LABEL=82115-02350

main82115-02360i200105-200311

PART NUMBER LABEL=82115-02360

main82115-02370i200103-200310

PART NUMBER LABEL=82115-02370

main82115-02380i200103-200211

PART NUMBER LABEL=82115-02380

main82115-02390i200103-200211

PART NUMBER LABEL=82115-02390

main82115-02400i200103-200310

PART NUMBER LABEL=82115-02400

main82115-02410i200103-200211

PART NUMBER LABEL=82115-02410

main82115-02420i200103-200310

PART NUMBER LABEL=82115-02420

main82115-02430i200107-200110

PART NUMBER LABEL=82115-02430

main82115-02431i200110-200311

PART NUMBER LABEL=82115-02431

main82115-02440i200107-200110

PART NUMBER LABEL=82115-02440

main82115-02441i200110-200311

PART NUMBER LABEL=82115-02441

main82115-02450i200107-200401

PART NUMBER LABEL=82115-02450

main82115-02460i200107-200401

PART NUMBER LABEL=82115-02460

main82115-02470i200107-200401

PART NUMBER LABEL=82115-02470

main82115-02490i200107-200401

PART NUMBER LABEL=82115-02490

main82115-02500i200107-200403

PART NUMBER LABEL=82115-02500

main82115-02510i200107-200403

PART NUMBER LABEL=82115-02510

main82115-02E60i200508-200605

PART NUMBER LABEL=82115-02E60

main82115-02E61i200605

PART NUMBER LABEL=82115-02E61

main82115-02U80i200603-200712

PART NUMBER LABEL=82115-02U80

main82115-02U90i200603-200712

PART NUMBER LABEL=82115-02U90

main82115-02V00i200603-200712

PART NUMBER LABEL=82115-02V00

main82115-02V10i200603-200712

PART NUMBER LABEL=82115-02V10

main82115-02V20i200603-200712

PART NUMBER LABEL=82115-02V20

main82115-02V30i200603-200712

PART NUMBER LABEL=82115-02V30

main82115-02V40i200603-200712

PART NUMBER LABEL=82115-02V40

main82115-02V50i200603-200712

PART NUMBER LABEL=82115-02V50

main82115-02V60i200603-200712

PART NUMBER LABEL=82115-02V60

main82115-02V70i200605-200802

PART NUMBER LABEL=82115-02V70

main82115-02V80i200605-200802

PART NUMBER LABEL=82115-02V80

main82115-02V90i200605-200802

PART NUMBER LABEL=82115-02V90

main82115-02W00i200605

PART NUMBER LABEL=82115-02W00

main82115-02W10i200603-200801

PART NUMBER LABEL=82115-02W10

main82115-02W20i200603-200801

PART NUMBER LABEL=82115-02W20

main82115-02W30i200603-200801

PART NUMBER LABEL=82115-02W30

main82115-02W40i200603-200801

PART NUMBER LABEL=82115-02W40

main82115-02W50i200603-200801

PART NUMBER LABEL=82115-02W50

main82115-02W60i200605-200801

PART NUMBER LABEL=82115-02W60

main82115-02W70i200605-200801

PART NUMBER LABEL=82115-02W70

82210CFUSIBLE LINK

main90982-08246i200103-200403

100A,TERM.:MALE,BLUE

main90982-08280i200310

30A,TERM.:FEMALE,PNK,YAZAKI

main90982-08281i200608

40A,TERM.:FEMALE,GRN

main90982-08283×2i200103-200508

30A,TERM.:FEMALE,PNK,TAIHEIYO

main90982-08284i200103-200211

40A,TERM.:FEMALE,GRN,TAIHEIYO

82824CONNECTOR, WIRING HARNESS

main82824-12300i200103-200211

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011906390

main90119-06390

6 parts on this diagram · 10 diagrams in section
