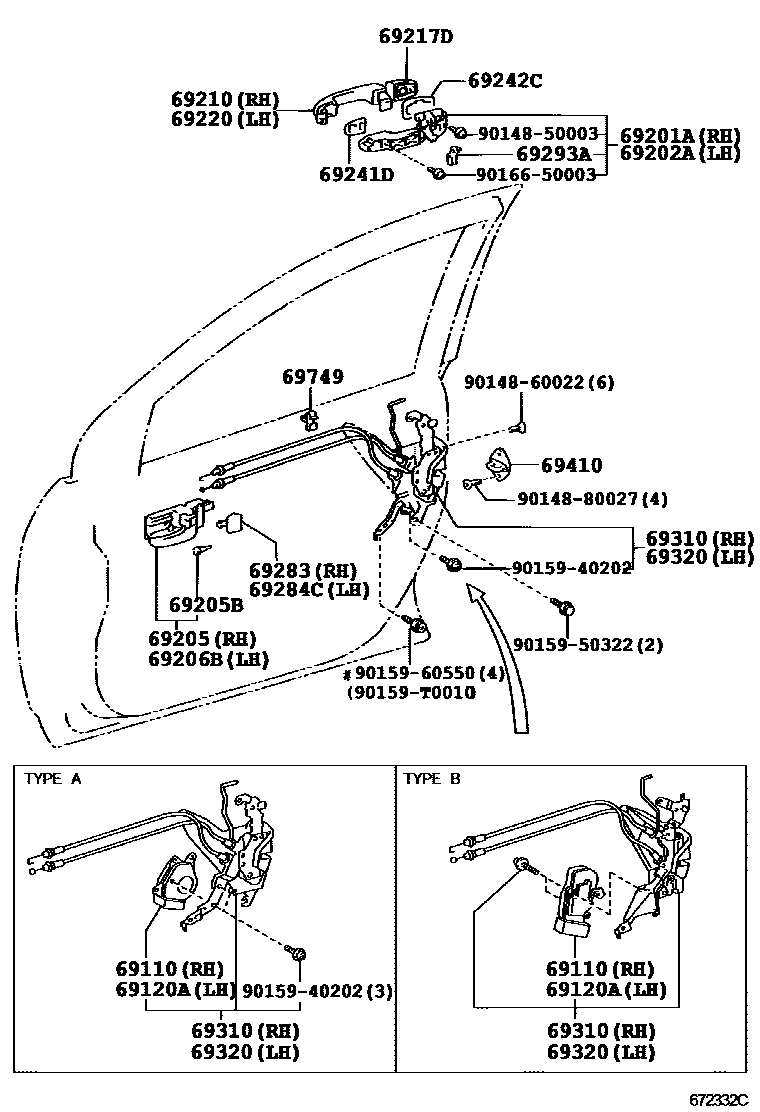

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-02030iZZE12#..(16E,16J,18E,18G,18J)..(IND,TH)200204-200603

TYPE B:REFER ILLUST.

sub69110-02031

main69110-02031iZZE12#..(16E,16J,18E,18G,18J)..(IDN,IND,TH)200604-200808

TYPE B:REFER ILLUST.

main69110-12070iZZE12#..MA200105-200801

main69110-12070iZZE12#..(16E,16J,18E,18G,18J)..(IND,TH)200204-200808

TYPE A:REFER ILLUST.

main69110-12080iZZE12#..LHD200103-200808

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-02020iZZE12#..(16E,16J,18E,18G,18J)..(IDN,IND,TH)200204-200603

TYPE B:REFER ILLUST.

sub69120-02021

main69120-02021iZZE12#..(16E,16J,18E,18G,18J)..(IDN,IND,TH)200604-200808

TYPE B:REFER ILLUST.

main69120-12070iZZE12#..MA200105-200801

main69120-12070iZZE12#..(16E,16J,18E,18G,18J)..(IND,TH)200204-200808

TYPE A:REFER ILLUST.

main69120-12080iZZE12#..LHD200103-200808

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02040iZZE12#..TAIW200107-200712

main69201-06010iZZE122..IND200508

main69201-06010iZZE122..IND,PHL,TH,VN;NZE120,ZZE12#..(16,16E,16G,16J,18J,J)..(IDN,MA,PHL,TH,VN)200204-200801

THAILAND SPEC

main69201-52010iZZE122..TH;ZZE121..16J..PHL;NZE120,ZZE121..(16,16E,J)..(TH,VN)200103-200802

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02050iZZE12#..TAIW200111-200712

main69202-06010iZZE122..IND200508

main69202-06010iZZE122..IND,PHL,TH,VN;NZE120,ZZE12#..(16,16E,16G,16J,18J,J)..(IDN,MA,PHL,TH,VN)200204-200801

THAILAND SPEC

main69202-52010iZZE12#..MA,VN200103-200802

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0D070-A0iZZE122..18E..TAIW200310-200801

IVORY,TRIM0#

sub69205-0D070

main69205-0D070-A0iZZE122..18J..IND;ZZE12#..(16E,18E,18J)..(IDN,MA,TAIW)200303-200508

IVORY,TRIM0#,(L)

sub69205-0D070

main69205-0D070-B0iZZE122..18E..TAIW200411-200712

DK.GRAY,TRIM15

sub69205-0D070

main69205-0D070-B0iZZE122..18E..TAIW200303-200310

DK.GRAY,TRIM18,(L)

sub69205-0D070

main69205-0D070-B1iZZE122..18E..TAIW200303-200310

STONE,TRIM17,(L)

sub69205-0D070

main69205-0D070-B1iZZE121..16,16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)200303-200403

STONE,TRIM1#,(L)

sub69205-0D070

main69205-0D070-B2iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

MD.GRAY,TRIM1#

sub69205-0D070

main69205-0D070-B2iZZE122..18E..TAIW200411-200712

MD.GRAY,TRIM14

sub69205-0D070

main69205-0D080-A0iZZE122..(18E,18G)..(IND,MA)200310-200801

W(CHROME PLATED INSIDE HANDLE),IVORY,TRIM0#

sub69205-0D080

main69205-0D080-B2iZZE122..18G..TAIW200310-200712

MD.GRAY,TRIM1#

sub69205-0D080

main69205-12190-A0iZZE121..16E..TH;ZZE122..18G..TAIW;ZZE122..RHD..(18E,18G)200103-200508

IVORY,TRIM0#

sub69205-12190

sub69205-0D080

main69205-12190-B0iZZE122..18G..TAIW200103-200310

STONE,TRIM1#

sub69205-12190

sub69205-0D080

main69205-12190-B1iZZE122..18E..TH200211-200311

DK.GRAY,TRIM1#

sub69205-12190

sub69205-0D080

main69205-12200-A0iZZE122..18J..IND;ZZE12#..(16E,18E,18J)..(IDN,MA,TAIW)200103-200303

IVORY,TRIM0#

sub69205-12200

sub69205-0D070

main69205-12200-A0iZZE122..18J..IND;ZZE12#..(16E,18E,18J)..(IDN,MA,TAIW)200303-200508

IVORY,TRIM0#,(J)

sub69205-12200

sub69205-0D070

main69205-12200-B0iZZE122..18E..TAIW200103-200303

STONE,TRIM1#

sub69205-12200

sub69205-0D070

main69205-12200-B0iZZE121..16,16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)200303-200403

STONE,TRIM1#,(J)

sub69205-12200

sub69205-0D070

main69205-12200-B0iZZE122..18E..TAIW200303-200310

STONE,TRIM17,(J)

sub69205-12200

sub69205-0D070

main69205-12200-B0iZZE122..18E..TAIW200211-200303

STONE,TRIM17

sub69205-12200

sub69205-0D070

main69205-12200-B1iZZE122..18E..TAIW200211-200303

DK.GRAY,TRIM18

sub69205-12200

sub69205-0D070

main69205-12200-B1iZZE122..18E..TAIW200303-200310

DK.GRAY,TRIM18,(J)

sub69205-12200

sub69205-0D070

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iZZE12#..(16E,18E,18G)..(IDN,TH)200103-200802

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0D070-A0iZZE122..18J..IND;ZZE12#..(16E,18E,18J)..(IDN,MA,TAIW)200303-200508

IVORY,TRIM0#,(L)

sub69206-0D070

main69206-0D070-A0iZZE121..ATM..MA;ZZE122..18J..IND200310-200801

IVORY,TRIM0#

sub69206-0D070

main69206-0D070-B0iZZE122..18E..TAIW200411-200712

DK.GRAY,TRIM15

sub69206-0D070

main69206-0D070-B0iZZE122..18E..TAIW200303-200310

DK.GRAY,TRIM18,(L)

sub69206-0D070

main69206-0D070-B1iZZE122..18E..TAIW200303-200310

STONE,TRIM17,(L)

sub69206-0D070

main69206-0D070-B1iZZE121..16,16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)200303-200403

STONE,TRIM1#,(L)

sub69206-0D070

main69206-0D070-B2iZZE121..TAIW200310-200802

MD.GRAY,TRIM1#

sub69206-0D070

main69206-0D070-B2iZZE122..18E..TAIW200411-200712

MD.GRAY,TRIM14

sub69206-0D070

main69206-0D080-A0iZZE122..18G..TAIW200310-200801

W(CHROME PLATED INSIDE HANDLE),IVORY,TRIM0#

sub69206-0D080

main69206-0D080-B2iZZE122..18G..TAIW200310-200712

MD.GRAY,TRIM1#

sub69206-0D080

main69206-12190-A0iZZE121..16E..TH;ZZE122..18G..TAIW;ZZE122..RHD..(18E,18G)200103-200508

IVORY,TRIM0#

sub69206-12190

sub69206-0D080

main69206-12190-B0iZZE122..18G..TAIW200103-200310

STONE,TRIM1#

sub69206-12190

sub69206-0D080

main69206-12190-B1iZZE122..18E..TH200211-200311

DK.GRAY,TRIM1#

sub69206-12190

sub69206-0D080

main69206-12200-A0iZZE122..18J..IND;ZZE12#..(16E,18E,18J)..(IDN,MA,TAIW)200103-200303

IVORY,TRIM0#

sub69206-12200

sub69206-0D070

main69206-12200-A0iZZE122..18J..IND;ZZE12#..(16E,18E,18J)..(IDN,MA,TAIW)200303-200508

IVORY,TRIM0#,(J)

sub69206-12200

sub69206-0D070

main69206-12200-B0iZZE121..16,16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)200303-200403

STONE,TRIM1#,(J)

sub69206-12200

sub69206-0D070

main69206-12200-B0iZZE122..18E..TAIW200303-200310

STONE,TRIM17,(J)

sub69206-12200

sub69206-0D070

main69206-12200-B0iZZE122..18E..TAIW200211-200303

STONE,TRIM17

sub69206-12200

sub69206-0D070

main69206-12200-B0iZZE121..LHD..16E;ZZE121..16,16G,16J;NZE120,ZZE122..PHL,VN200103-200303

STONE,TRIM1#

sub69206-12200

sub69206-0D070

main69206-12200-B1iZZE122..18E..TAIW200303-200310

DK.GRAY,TRIM18,(J)

sub69206-12200

sub69206-0D070

main69206-12200-B1iZZE122..18E..TAIW200211-200303

DK.GRAY,TRIM18

sub69206-12200

sub69206-0D070

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-02070iZZE122..TAIW200103-200712

PLATED

main69210-06040iZZE122..(18E,18G)..IND200311-200801

PLATED,THAILAND SPEC

main69210-06040iZZE122..(18E,18G)..IND200508-200808

PLATED

main69210-06060iZZE12#..(16J,18E)..TAIW200111-200712

main69210-06905iZZE122..18J..IND200508-200808

PAINT REQ.

main69210-06905iZZE122..PHL,VN;ZZE121..16J..TH;ZZE12#..(16E,16G,18J)..(IDN,IND,MA,PHL)200204-200801

PAINT REQ.,UNPAINTED

main69210-12260iZZE122..VN200105-200808

PLATING

main69211-02130iZZE121..16200311-200801

NO PAINT REQ.

main69211-02130iZZE121..16J..PHL;NZE120,ZZE121..16,J200204-200403

NO PAINT REQ.,THAILAND SPEC

main69211-12220iZZE121..TAIW200103-200403

sub69211-12903

sub69211-52090

main69211-12220-A0iZZE122..18J..IND200301-200508

SUPER WHITE 2,040

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-B2iZZE122..18J..IND200301-200508

SILVER ME.,1C0

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-C2iZZE122..18J..IND200301-200508

BLACK MC.,209

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-F2iZZE122..18J..IND200301-200508

CHAMPAGNE M.M.,587

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-G3iZZE122..18J..IND200301-200508

GREEN MC.,6R8

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-J0iZZE122..18J..IND200301-200508

DK.BLUE M.M.,8P4

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12230iZZE121..16J..TH200105-200107

main69211-12902iZZE121..TAIW200103-200107

PAINT REQ.

sub69211-12903

main69211-42010iZZE121..16J..PHL;NZE120,ZZE121..16,J200105-200802

NO PAINT REQ.

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-02060iZZE121..16J..PHL;NZE120,ZZE121..16,J200204-200801

BLACK,THAILAND SPEC

main69217-06020iZZE122..(18E,18G)..IND200311-200801

*CR,THAILAND SPEC

main69217-06020iZZE122..(18E,18G)..IND200508-200808

*CR

main69217-06900iZZE12#..RHD..(16J,18J)200311-200808

LESS COLOR

sub69217-06908

main69217-06900iZZE122..PHL,VN;ZZE121..16J..TH;ZZE12#..(16E,16G,18J)..(IDN,IND,MA,PHL)200204-200508

LESS COLOR,UNPAINTED

sub69217-06908

main69217-12010iZZE122..18E..TAIW200103-200808

*CR

main69217-12020iZZE121..16J..TH200105-200107

BLACK MATERIAL

main69217-42010iZZE121..16J..PHL;NZE120,ZZE121..16,J200105-200802

BLACK MATERIAL

main69217-42020iZZE121..TAIW200103-200712

sub69217-42010

main69217-42020-A3iZZE122..18J..IND200301-200508

SUPER WHITE 2,040

sub69217-42020

sub69217-42010

main69217-42020-B3iZZE122..18J..IND200301-200508

SILVER ME.,1C0

sub69217-42020

sub69217-42010

main69217-42020-C2iZZE122..18J..IND200301-200508

BLACK MC.,209

sub69217-42020

sub69217-42010

main69217-42020-F2iZZE122..18J..IND200301-200508

CHAMPAGNE M.M.,587

sub69217-42020

sub69217-42010

main69217-42020-G3iZZE122..18J..IND200301-200508

GREEN MC.,6R8

sub69217-42020

sub69217-42010

main69217-42020-J2iZZE122..18J..IND200301-200508

DK.BLUE M.M.,8P4

sub69217-42020

sub69217-42010

main69217-42903iZZE122..VN200401-200802

LESS COLOR

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-02070iZZE122..18E..TAIW200103-200712

PLATED

main69210-06040iZZE122..(18E,18G)..IND200311-200801

PLATED,THAILAND SPEC

main69210-06040iZZE122..(18E,18G)..IND200508-200808

PLATED

main69210-06060iZZE12#..(16J,18E)..TAIW200111-200712

main69210-06905iZZE122..18J..IND200508-200808

PAINT REQ.

main69210-06905iZZE122..PHL,VN;ZZE121..16J..TH;ZZE12#..(16E,16G,18J)..(IDN,IND,MA,PHL)200204-200801

PAINT REQ.,UNPAINTED

main69210-12260iZZE122..MA200105-200808

PLATING

main69211-02130iZZE121..16200311-200801

NO PAINT REQ.

main69211-02130iZZE121..16J..PHL;NZE120,ZZE121..16,J200204-200403

NO PAINT REQ.,THAILAND SPEC

main69211-12220iZZE121..TAIW200103-200403

sub69211-12903

sub69211-52090

main69211-12220-A0iZZE122..18J..IND200301-200508

SUPER WHITE 2,040

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-B2iZZE122..18J..IND200301-200508

SILVER ME.,1C0

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-C2iZZE122..18J..IND200301-200508

BLACK MC.,209

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-F2iZZE122..18J..IND200301-200508

CHAMPAGNE M.M.,587

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-G3iZZE122..18J..IND200301-200508

GREEN MC.,6R8

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-J0iZZE122..18J..IND200301-200508

DK.BLUE M.M.,8P4

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12230iZZE121..16J..TH200105-200107

main69211-12902iZZE121..TAIW200103-200107

PAINT REQ.

sub69211-12903

main69211-42010iZZE121..16J..PHL;NZE120,ZZE121..16,J200105-200802

NO PAINT REQ.

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69241-06020iZZE12#..IDN,TH200311-200801

THAILAND SPEC

main69241-06020iZZE122..IND200508

main69241-42020iZZE122..PHL,VN;ZZE121..16J..TH;ZZE12#..(16E,16G,18J)..(IDN,MA,PHL)200103-200802

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main69242-06020iZZE122..IND,PHL,TH,VN;NZE120,ZZE12#..(16,16E,16G,16J,18J,J)..(IDN,MA,PHL,TH,VN)200204-200801

THAILAND SPEC

main69242-06020iZZE122..IND200508

main69242-42010iZZE122..IND,PHL,TH,VN;NZE120,ZZE12#..(16,16E,16G,16J,18J,J)..(IDN,MA,PHL,TH,VN)200103-200711

main69242-52020iZZE12#..PHL200712-200802

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-A1iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200103-200801

IVORY,TRIM0#

sub69283-30040

main69283-30040-B8iZZE12#..LHD..(16E,18G);NZE120,ZZE121..16,16G,16J,J200103-200403

STONE,TRIM1#

sub69283-30040

main69283-30040-B8iZZE122..18E..TAIW200103-200310

STONE,TRIM17

sub69283-30040

main69283-30040-P0iZZE122..18E..TAIW200411-200712

DK.GRAY,TRIM15

sub69283-30040

main69283-30040-P0iZZE122..18E..TH200105-200311

DK.GRAY,TRIM1#

sub69283-30040

main69283-30040-P0iZZE122..18E..TAIW200103-200310

DK.GRAY,TRIM18

sub69283-30040

main69283-30040-P1iZZE121..(16,16J)..TH200310-200802

MD.GRAY,TRIM1#

sub69283-30040

main69283-30040-P1iZZE122..18E..TAIW200411-200712

MD.GRAY,TRIM14

sub69283-30040

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69283-30040-A1iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200103-200801

IVORY,TRIM0#

sub69283-30040

main69283-30040-B8iZZE122..18E..TAIW200103-200310

STONE,TRIM17

sub69283-30040

main69283-30040-B8iZZE12#..LHD..(16E,18G);NZE120,ZZE121..16,16G,16J,J200103-200403

STONE,TRIM1#

sub69283-30040

main69283-30040-P0iZZE122..18E..TAIW200411-200712

DK.GRAY,TRIM15

sub69283-30040

main69283-30040-P0iZZE122..18E..TAIW200103-200310

DK.GRAY,TRIM18

sub69283-30040

main69283-30040-P0iZZE122..18E..TH200105-200311

DK.GRAY,TRIM1#

sub69283-30040

main69283-30040-P1iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

MD.GRAY,TRIM1#

sub69283-30040

main69283-30040-P1iZZE122..18E..TAIW200411-200712

MD.GRAY,TRIM14

sub69283-30040

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iZZE121..16J..TH200105-200802

RH

main69293-12040iZZE122..PHL,TH,VN;NZE120,ZZE12#..(16,16E,16G,16J,18J,J)..(IDN,MA,PHL,TH,VN)200105-200802

LH

main69293-33010iZZE122..IND,PHL,TH,VN;NZE120,ZZE12#..(16,16E,16G,16J,18J,J)..(IDN,MA,PHL,TH,VN)200204-200801

THAILAND SPEC,RH

main69293-33010iZZE122..IND200508

RH

main69293-33020iZZE122..IND,PHL,TH,VN;NZE120,ZZE12#..(16,16E,16G,16J,18J,J)..(IDN,MA,PHL,TH,VN)200204-200801

THAILAND SPEC,LH

main69293-33020iZZE122..IND200508

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-02090iZZE12#..TAIW200103-200712

W(POWER DOOR LOCK)

main69030-02090iZZE121..16E..TAIW200103-200211

main69030-02180iZZE12#..(16E,16J,18E,18G,18J)..(IND,TH)200204-200603

TYPE B:REFER ILLUST.

sub69030-02181

main69030-02181iZZE12#..(16E,16J,18E,18G,18J)..(IDN,IND,TH)200604-200808

TYPE B:REFER ILLUST.

main69030-12460iZZE12#..PHL,VN200107-200808

W(POWER DOOR LOCK)

main69030-12510iZZE12#..IDN,MA200105-200801

W(POWER DOOR LOCK)

main69030-12510iZZE12#..(16E,16J,18E,18G,18J)..(IND,TH)200204-200808

TYPE A:REFER ILLUST.

main69310-02100iZZE121..16200311-200801

(L)

main69310-02100iZZE121..16200204-200311

THAILAND SPEC

main69310-12650iZZE121..16200311-200801

(J)

main69310-12650iZZE121..16200105-200403

69320LOCK ASSY, FRONT DOOR, LH

main69040-02090iZZE121..16E..TAIW200103-200211

main69040-02090iZZE12#..TAIW200103-200712

W(POWER DOOR LOCK)

main69040-02170iZZE12#..(16E,16J,18E,18G,18J)..(IDN,IND,TH)200204-200603

TYPE B:REFER ILLUST.

sub69040-02171

main69040-02171iZZE12#..(16E,16J,18E,18G,18J)..(IDN,IND,TH)200604-200808

TYPE B:REFER ILLUST.

main69040-12510iZZE12#..PHL,VN200107-200808

W(POWER DOOR LOCK)

main69040-12530iZZE12#..(16E,16J,18E,18G,18J)..(IND,TH)200204-200808

TYPE A:REFER ILLUST.

main69040-12530iZZE12#..(16E,16J,18E,18G)..TH200105-200401

main69040-12530iZZE12#..MA200401-200801

W(POWER DOOR LOCK)

main69320-02100iZZE121..16200311-200801

(L)

main69320-02100iZZE121..16200204-200311

THAILAND SPEC

main69320-12700iZZE121..16200105-200403

main69320-12700iZZE121..16200311-200801

(J)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02040iZZE12#..(16J,18E,18G)..TAIW200103-200712

main69410-20110iNZE120,ZZE122..VN200105-200802

main69410-47010iZZE122..IND200301-200801

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040iZZE121..16E..TAIW200103-200802

9014850003

main90148-50003

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9015950322

main90159-50322

9015960550

main90159-60550

90159T0010

main90159-T0010

9016650003

main90166-50003

27 parts on this diagram · 1 diagram in section
