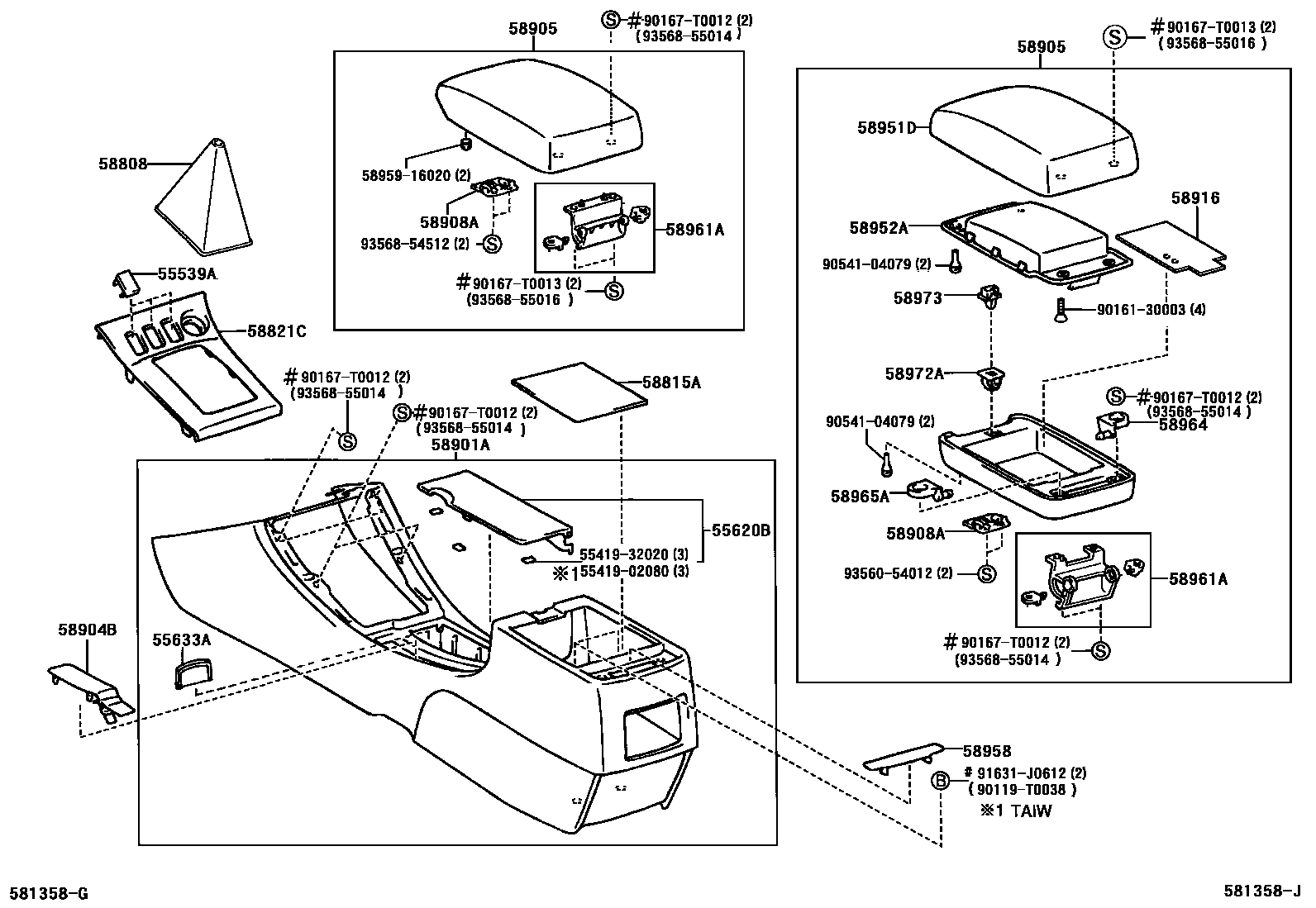

CONSOLE BOX & BRACKET

0001 1 0002 1

55539ACOVER, SPARE SWITCH HOLE

main55539-02090×3iZZE122..18J..IDN;ZZE12#..MTM..(PHL,TH,VN)200311-200801

(L)

main55539-02090-B0×3iZZE121..ATM..16E..TH; ZZE121..ATM..16J..TH; ZZE121..MTM..(16,16J)..TH; ZZE121..MTM..16E..TH200304-200306

DARK GRAY,TRIM0#; DARK GRAY,TRIM1#

main55539-12140×2iZZE121..ATM..16E..PHL200310-200802

(J)

main55539-12140-B0×3iZZE121..ATM..16E..TH; ZZE121..MTM..(16,16J)..TH; ZZE121..MTM..16E..TH200105-200304

DARK GRAY,TRIM0#; DARK GRAY,TRIM1#

main55539-12150×2iZZE121..ATM..PHL200801-200802

main55539-12150-E0×3iZZE122..(18E,18G)..(IDN,IND)200107-200508

YELLOWISH BROWN,TRIM0#

main55539-12150-E1×3iZZE121..MA;ZZE122..18E..TH;ZZE122..ATM..IDN; ZZE122..18G..(MA,TH); ZZE122..MTM..18G..IDN; ZZE122..PHL200603-200801

BROWN,TRIM05; BROWN,TRIM14

main55539-12150-E2×2iZZE121..ATM..16E..TH; ZZE121..MA;ZZE122..18E..TH;ZZE122..ATM..IDN; ZZE122..18G..(MA,TH); ZZE122..MTM..18G..IDN; ZZE122..PHL200603-200801

LT.BROWN,TRIM0#; LT.BROWN,TRIM05; LT.BROWN,TRIM14

main55539-12170-B0×2iZZE122..ATM..18E200211-200311

SILVER,TRIM1#

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-02050-A0iZZE12#..(16E,18E,18G)..TAIW200103-200310

IVORY,TRIM0#

main55620-02050-B0iNZE120,ZZE12#..LHD..(16E,16G,16J,18G,J)200103-200403

STONE,TRIM1#

main55620-02050-B1iZZE122..18E..TAIW200411-200712

DK.GRAY,TRIM15

main55620-02050-B2iZZE122..18E..TAIW200310-200411

MD.GRAY,TRIM1#

main55620-12090-A0iZZE122..IND,MA;ZZE121..ATM..MA200311

IVORY,TRIM0#

main55620-12090-B0iZZE121..(16,16J)..TH200105-200311

STONE,TRIM1#

main55620-12090-B1iZZE122..18E..TH200105-200311

DK.GRAY,TRIM1#

main55620-12090-B2iZZE121..ATM..MA;ZZE121..(16,16J)..TH200311-200801

MD.GRAY,TRIM1#

55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1

main55633-02050-A0×3iZZE122..IND200203-200508

IVORY,TRIM0#

main55633-02050-B0×3iZZE121..(16,16J)..TH200203-200311

STONE,TRIM1#

main55633-02050-B1×3iZZE122..18E..TH200203-200311

DK.GRAY,TRIM1#

main55633-02050-B2×3iZZE121..ATM..MA;ZZE121..(16,16J)..TH200311-200801

MD.GRAY,TRIM1#

main55633-12090-A0×3iZZE12#..RHD..(16E,18E,18G,18J)200105-200203

IVORY,TRIM0#

main55633-12090-B0×3iZZE121..(16,16J)..TH200105-200203

STONE,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-02100-B0iZZE121..MTM..(16,16J)..TH200105-200311

DK.GRAY,TRIM1#

main58808-02100-E0iZZE122..MTM..IND200311

SANDAL WOOD,TRIM0#

main58808-12180-B0iNZE120,ZZE12#..LHD..MTM200107-200203

DK.GRAY,TRIM1#

main58808-12180-E0iZZE12#..MTM..(IDN,MA)200107-200203

SANDAL WOOD,TRIM0#

58815ACARPET, CONSOLE BOX

main58815-02040iZZE122..IND,MA;ZZE121..ATM..MA200311

main58815-12060iZZE12#..IDN,MA200107-200203

main58815-12080iNZE120,ZZE122..VN200103-200403

58821CPANEL, CONSOLE, UPPER

main58821-02050-B0iZZE121..(16,16J)..TH200105-200311

DARK GRAY,TRIM1#

main58821-02050-B1iZZE122..18E..TH200211-200311

W(AUTO AIR CONDITIONER),SILVER,TRIM1#

main58821-02050-C0iZZE12#..(16E,18J)..(IDN,TH); ZZE121..(16,16J)..TH200311-200801

METALLIC BLACK,TRIM0#; METALLIC BLACK,TRIM1#

main58821-02060-B0iZZE122..18E..TH200211-200311

SILVER,TRIM1#

main58821-02060-E0iZZE122..RHD..(18E,18G)200105-200508

W(LEATHER SEAT),YELLOWISH BROWN,TRIM0#

main58821-02060-E1iZZE121..MA;ZZE122..(18E,18G)..(IDN,MA,TH)200603-200801

BROWN,TRIM05

main58821-02060-E2iZZE121..ATM..16E..TH; ZZE121..MA;ZZE122..(18E,18G)..(IDN,MA,TH)200603-200801

LT.BROWN,TRIM0#; LT.BROWN,TRIM05

main58821-02070-B0iNZE120,ZZE122..VN;ZZE121..16J..TAIW;ZZE121..(16E,16J)..PHL200103-200403

DARK GRAY,TRIM1#

main58821-02070-B1iZZE122..18E..TAIW200411-200712

SILVER,TRIM1#

main58821-02070-C0iZZE121..MTM..PHL;ZZE121..ATM..16E..PHL200310-200802

METALLIC BLACK,TRIM1#

main58821-02080-B0iZZE122..18E..TAIW200211-200310

SILVER,TRIM18

main58821-02080-E0iZZE122..18E..TAIW200103-200211

YELLOWISH BROWN,TRIM0#,1#

main58821-02080-E1iZZE122..PHL;ZZE121..TAIW; ZZE122..TAIW200310-200603

BROWN,TRIM0#,1#; W(LEATHER SEAT),BROWN,TRIM1#

main58821-02080-E2iZZE122..PHL200603-200802

LT.BROWN,TRIM14

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-02070-A0iZZE12#..RHD..(16E,18E,18G,18J)200105-200508

IVORY,TRIM0#

main58901-02070-B0iZZE121..(16,16J)..TH200105-200311

STONE,TRIM1#

main58901-02070-B1iZZE122..18E..TH200105-200311

DK.GRAY,TRIM1#

main58901-02070-B2iZZE121..ATM..MA;ZZE121..(16,16J)..TH200311-200801

MD.GRAY,TRIM1#

main58901-02080-B0iZZE121..16J..TAIW;NZE120,ZZE12#..PHL,VN200103-200403

STONE,TRIM1#

main58901-02080-B1iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

MD.GRAY,TRIM1#

main58901-02100-A0iZZE122..TAIW200310-200712

IVORY,TRIM0#

main58901-02100-B0iZZE122..18E..TAIW200103-200310

DK.GRAY,TRIM18

main58901-02100-B1iZZE12#..(16E,18G)..TAIW; ZZE122..18E..TAIW200103-200310

STONE,TRIM1#; STONE,TRIM17

main58901-02100-B2iZZE122..18G..TAIW200310-200712

MD.GRAY,TRIM1#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-02010-A0iZZE12#..(16E,18E,18G)..TAIW200103-200310

IVORY,TRIM0#

main58904-02010-B0iZZE122..18E..TAIW200103-200310

STONE,TRIM17

main58904-02010-B1iZZE122..18E..TAIW200103-200310

DK.GRAY,TRIM18

main58904-02010-B2iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

MD.GRAY,TRIM1#

main58904-12050-A0iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200311-200801

IVORY,TRIM0#

main58904-12050-B0iZZE121..(16,16J)..TH200105-200311

STONE,TRIM1#

main58904-12050-B1iZZE122..18E..TH200105-200311

DK.GRAY,TRIM1#

main58904-12050-B2iZZE121..ATM..MA;ZZE121..(16,16J)..TH200311-200801

MD.GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02070-A4iZZE12#..(16E,18E,18G)..TAIW200103-200310

IVORY,TRIM0#

main58905-02070-B4iZZE12#..(16E,18G)..TAIW; ZZE122..18E..TAIW200103-200310

STONE,TRIM1#; STONE,TRIM17

main58905-02070-B5iZZE122..18E..TAIW200411-200712

DK.GRAY,TRIM15

main58905-02070-B6iZZE122..18G..TAIW200310-200712

MD.GRAY,TRIM1#

main58905-02160-B0iZZE121..TAIW200211-200310

LEATHER,STONE,TRIM1#

main58905-02160-B1iZZE121..TAIW200310-200603

LEATHER,MD.GRAY,TRIM1#

main58905-12410-A1iZZE122..18J..IDN200311-200801

IVORY,TRIM0#

main58905-12410-B1iNZE120,ZZE121..16J,J200103-200403

STONE,TRIM1#

main58905-12410-B4iZZE121..MTM..16J..PHL200310-200802

MD.GRAY,TRIM1#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iZZE12#..(16E,16J,18E,18G,18J)..(IDN,TH)200310-200801

58916MAT, BOX BOTTOM

main58916-02030iZZE12#..(16E,18G)..PHL200310-200802

main58916-02040iZZE12#..(16E,18E,18G)..TAIW200103-200310

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-02020-A5iZZE122..TAIW200310-200712

IVORY,TRIM0#

main58951-02020-B4iZZE12#..(16E,18G)..TAIW200103-200310

STONE,TRIM1#

main58951-02020-B7iZZE122..18E..TAIW200103-200310

DK.GRAY,TRIM18

main58951-02020-B9iZZE122..18E..TAIW200411-200712

MD.GRAY,TRIM14

58952ADOOR, CONSOLE COMPARTMENT, INNER

main58952-02010-A4iZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA)200310

IVORY,TRIM0#

main58952-02010-B2iZZE121..TAIW; ZZE122..18E..TAIW200211-200310

STONE,TRIM17; STONE,TRIM17,18

main58952-02010-B5iZZE121..TAIW200211-200310

DK.GRAY,TRIM17

main58952-02010-B6iZZE122..18G..TAIW200310-200712

MD.GRAY,TRIM1#

58958COVER, CONSOLE COMPARTMENT DOOR MOULDING

main58958-12020-B0iZZE121..16200105-200311

STONE,TRIM1#

main58958-12020-B1iZZE121..16200311-200801

MD.GRAY,TRIM1#

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58907-02010iZZE121..TAIW200310-200603

LEATHER

main58907-12050iZZE121..TAIW200310-200712

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-02080iZZE121..TAIW200310-200603

main58964-20040iZZE12#..(16E,18G)..PHL200311-200802

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-02080iZZE122..TAIW200310-200712

main58965-20050iZZE12#..(16E,18E,18G)..(IDN,TH)200311-200801

58972ABASE, CONSOLE COMPARTMENT DOOR LOCK

main58972-34010iZZE121..TAIW200211-200310

58973PIN, CONSOLE COMPARTMENT DOOR LOCK

main58973-34010iZZE121..TAIW200211-200310

5541902080PLATE, SAFETY PAD

main55419-02080

5541932020PLATE, SAFETY PAD

main55419-32020

5895916020ROD, REAR LOCK, HANDLE LATCH

main58959-16020

90119T0038

main90119-T0038

9016130003

main90161-30003

90167T0012

main90167-T0012

90167T0013

main90167-T0013

9054104079

main90541-04079

91631J0612

main91631-J0612

9356054012

main93560-54012

9356854512

main93568-54512

9356855014

main93568-55014

9356855016

main93568-55016

32 parts on this diagram · 2 diagrams in section
