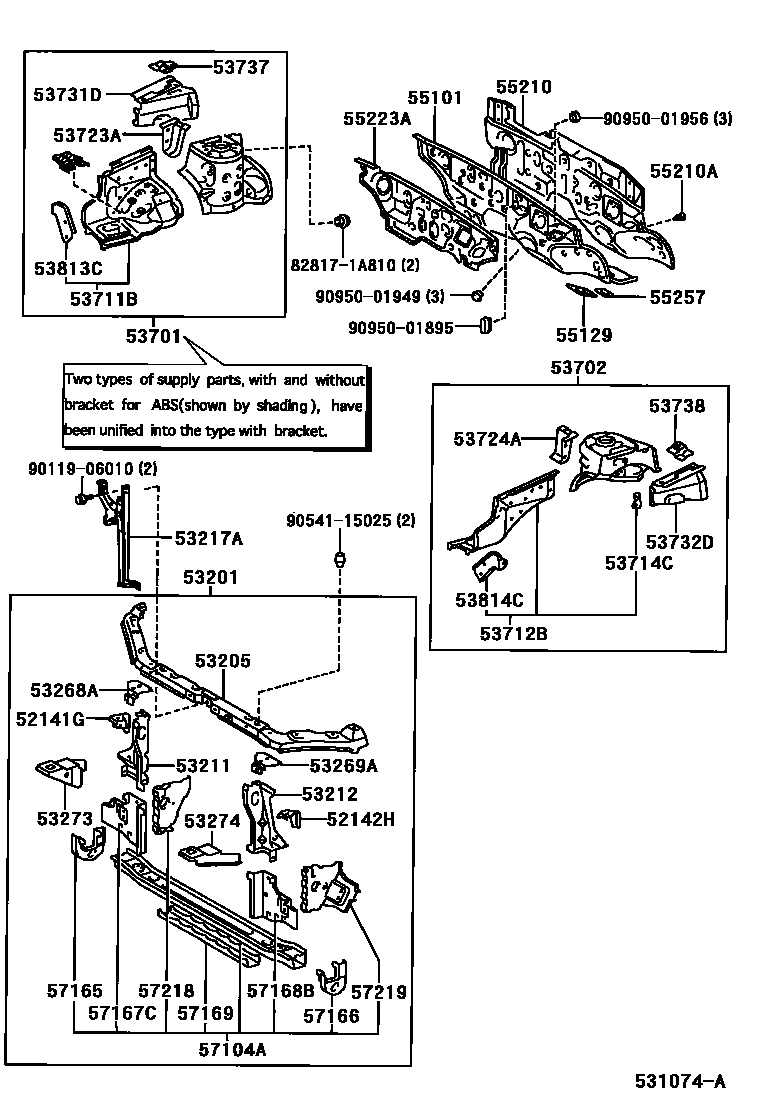

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

52141GSTAY, FRONT BUMPER, RH

main52141-12510iNZE120,ZZE122..VN200105-200403

52142HSTAY, FRONT BUMPER, LH

main52142-12440iZZE121..ATM..MA;ZZE122..IND,MA,VN200310

53201SUPPORT SUB-ASSY, RADIATOR

main53201-1A220iZZE12#..TAIW200103-200201

main53201-1A221iZZE12#..TAIW200310-200712

main53201-1A240iZZE12#..IDN,TH200311-200801

main53201-1A250iZZE122..IND200508

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-02901iZZE12#200103-200105

main53216-02904iNZE120,ZZE12#..IDN,MA,PHL,TAIW,TH,VN200105-200403

main53216-02905iZZE121..TAIW,TH;ZZE121..MTM..PHL;ZZE121..ATM..16E..(MA,PHL);ZZE122..IDN,MA,PHL,TAIW,TH,VN200310-200407

53211SUPPORT, RADIATOR, RH

main53211-12420iZZE121..ATM..MA;ZZE122..IND,MA,VN200310

53212SUPPORT, RADIATOR, LH

main53212-12360iZZE12#..(16J,18E,18G)..TAIW200201-200310

53217ABRACE, HOOD LOCK SUPPORT

main53208-12470iZZE12#..TAIW200103-200310

main53208-12500iNZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN200105-200508

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-12130iZZE12#..IDN,TH200105-200311

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-12110iZZE121..16E..TAIW200201-200211

53273BRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-12040iZZE12#..TAIW200201-200310

main53273-12060iZZE12#..IDN,TH200105-200311

53274BRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-12040iZZE12#..TAIW200310-200712

main53274-12060iZZE12#..IDN,TH200311-200801

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-02901iZZE121..RHD..(16E,16J);ZZE121..(16E,16G)..PHL;ZZE122..(18E,18G)..(IDN,MA,PHL,TAIW,TH,VN)200211-200508

FOR BRAZIL,ARGENTINA

main53701-1A120iZZE12#..(16,16E,16J,18J)..(IDN,TH)200310-200801

INDIA SPEC

main53701-1A130iZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)200310-200801

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-02900iNZE120,ZZE12#200211-200508

main53702-1A080iNZE120,ZZE12#200205-200508

EXCEPT BRAZIL,ARGENTINA

53711BAPRON, FRONT FENDER, FRONT RH

main53711-02901iZZE12#..(16E,18G)..PHL200310-200802

main53711-02904iNZE120,ZZE12#200211-200508

FOR BRAZIL,ARGENTINA

main53711-12230iZZE12#..IDN,TAIW,TH200310-200801

FOR SOUTH AFRICA

main53711-12905iNZE120,ZZE12#200211-200508

53712BAPRON, FRONT FENDER, FRONT LH

main53712-02901iNZE120,ZZE12#200103-200205

EXCEPT BR,AR,SA

main53712-02904iNZE120,ZZE12#200211-200508

FOR BRAZIL,ARGENTINA

main53712-12190iZZE122..IND200508

main53712-12904iNZE120,ZZE12#200211-200508

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-12150iZZE12#..TAIW200205-200310

main53714-13020iNZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN200205-200508

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-12080iZZE122..VN200802

main53723-12090iZZE122..IND200508-200702

NO.2

main53723-12091iZZE122..IND200703

NO.2

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53723-12090iZZE122..IND200301-200508

NO.2

main53723-12091iZZE122..IND200703

NO.2

main53724-12070iZZE12#..IDN,TH200310-200801

NO.1

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12160iZZE122..IND,VN200802

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12140iNZE120,ZZE12#200205-200508

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-12060iZZE122..IND;ZZE121..ATM..16J;ZZE121..MTM..16J..PHL;NZE120,ZZE12#..MTM..(16,16E,16J,18J,J)..(IDN,TH,VN)200302-200508

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-12030iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

53813CEXTENSION, FRONT FENDER, RH

main53813-12070iZZE121..ATM..16E..TH;ZZE121..(16E,16G)..(MA,PHL,TAIW);ZZE122..(18E,18G)..(IDN,MA,PHL,TAIW,TH,VN)200205-200508

53814CEXTENSION, FRONT FENDER, LH

main53814-12030iZZE12#..IDN,TAIW,TH200310-200801

55101PANEL SUB-ASSY, DASH

main55101-19025iZZE122..ATM..IDN;ZZE12#..RHD..ATM..(16E,16J,18E)200209-200508

main55101-19035iZZE12#..RHD..MTM200105-200208

main55101-19045iZZE12#..16E,16J,18E200103-200105

main55101-19095iZZE12#..ATM..PHL200105-200401

main55101-19105iZZE121..MTM..PHL200401-200609

main55101-1E780iZZE122..18G..(MA,TH)200105-200401

main55101-1E851iZZE12#..ATM..PHL200401-200802

main55101-1E860iZZE122..18G200103-200105

main55101-1E861iZZE122..18G..TAIW200105-200111

main55101-1E905iZZE122..ATM..(IDN,IND);ZZE12#..RHD..ATM..(16E,16J,18E)200209-200508

SOUTH AFRICA SPEC

main55101-1E906iZZE12#..RHD..MTM200209-200408

SOUTH AFRICA SPEC

main55101-1H060iZZE12#..(16J,18E)..TAIW200310-200712

main55101-1H070iZZE122..18G..TAIW200310-200712

main55101-1H080iZZE122..VN200403

55129COVER, DASH PANEL HOLE

main55129-32030iZZE12#..TAIW200310-200712

RH

main55139-32010iZZE12#..IDN,TH200310-200801

LH

55210INSULATOR ASSY, DASH PANEL

main55210-02050iZZE12#..RHD200105-200508

main55210-02060iZZE12#..TAIW200310-200712

main55210-02170iZZE122..IND200508

55210ACLIP

main90467-10005-B0×4iZZE12#..(16E,18E,18G)..TAIW; ZZE121..16,16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)200103-200109

MD.CHARCOAL,TRIM0#,1#; MD.CHARCOAL,TRIM1#

main90467-10005-C0×4iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

BLACK,TRIM1#

55223AINSULATOR, DASH PANEL, OUTER

main55223-02110iZZE122..IND,MA;ZZE121..ATM..MA200311

main55223-12090iZZE12#..TH200105-200109

main55223-12100iZZE122..VN200310

55257COVER, DASH PANEL OPENING

main55257-32010×2iNZE120,ZZE12#200103-200508

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-12110iZZE12#..TAIW200103-200201

main57104-12190iZZE122..IND200201-200311

main57104-12200iZZE122..IND200508

57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main57165-12070iZZE12#..(16J,18E,18G)..TAIW200201-200310

57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main57166-12020iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-12110iZZE12#..(16J,18E,18G)..TAIW200201-200310

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-12110iZZE121..16E..TAIW200201-200211

57169MEMBER, FRONT FLOOR, FRONT RH

main57169-12020iZZE122..IND200201-200311

main57169-42030iZZE122..IND200311-200508

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-12010iZZE121..16E..TAIW200201-200211

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-12010iZZE121..16E..TAIW200201-200211

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9011906010

main90119-06010

9054115025

main90541-15025

9095001895

main90950-01895

9095001949

main90950-01949

9095001956

main90950-01956

44 parts on this diagram · 2 diagrams in section
