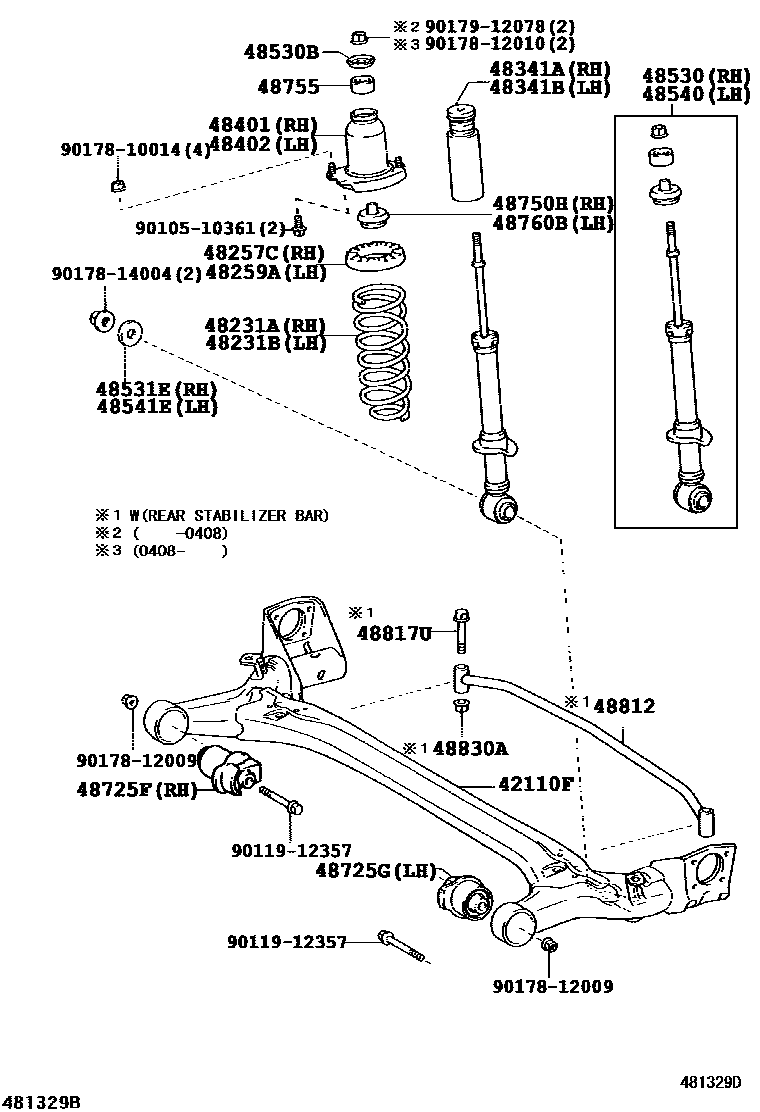

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42101-02010iZZE121..16E..TH200211-200311

W/O(ABS)

main42101-02020iZZE121..ATM..16E..TH; ZZE122..(18E,18G)..(IDN,TH)200311-200801

W/O(ABS)

main42101-02030iZZE121..TAIW; ZZE122..18E..TAIW200310-200410

W/O(ABS)

main42101-02040iZZE122..TAIW200310-200410

main42101-02060iZZE122..TAIW200411-200712

main42101-02070iZZE121..TAIW; ZZE122..18E..TAIW200411-200712

W/O(ABS)

48231ASPRING, COIL, REAR RH

main48231-02220iZZE12#..TH200105-200110

main48231-02221iZZE121..16;ZZE122..IDN; ZZE121..ATM..16E..TH200311-200801

SINGAPORE SPEC

main48231-02240iZZE12#..MA200107-200401

main48231-02250iZZE12#..TAIW200103-200111

main48231-02251iZZE12#..TAIW200111-200310

main48231-02282iZZE122..IND200301-200508

main48231-02283iZZE122..IND200508

main48231-02290iZZE122..IDN200107-200311

main48231-02420iZZE122..TH200110-200311

main48231-02530iZZE121..(16E,16J)..TH200311-200801

main48231-02540iZZE122..TH200311-200801

main48231-1H580iZZE122..VN200401

48231BSPRING, COIL, REAR LH

main48231-02220iZZE12#..TH200105-200110

main48231-02221iZZE121..16;ZZE122..IDN; ZZE121..ATM..16E..TH200311-200801

SINGAPORE SPEC

main48231-02240iZZE12#..MA200401-200801

main48231-02250iZZE12#..TAIW200103-200111

main48231-02251iZZE12#..TAIW200111-200310

main48231-02282iZZE122..IND200301-200508

main48231-02283iZZE122..IND200508

main48231-02290iZZE122..IDN200107-200311

main48231-02420iZZE122..18E..TH200311-200801

SINGAPORE SPEC

main48231-02530iZZE121..(16E,16J)..TH200311-200801

main48231-02540iZZE122..TH200311-200801

main48231-1H580iZZE12#..PHL200401-200802

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-02010iZZE12#..MA,PHL200105-200401

main48257-02020iZZE12#..(16J,18E,18G)..TAIW200103-200310

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-02010iZZE12#..IDN,TH200311-200801

main48257-02020iZZE121..16E..TAIW200103-200211

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-47010iNZE120,ZZE122..VN200103-200403

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-47010iZZE121..ATM..MA;ZZE122..IND,MA,VN200310

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48401-02020iZZE12#..MA200208-200401

main48401-32020iZZE12#..PHL200103-200401

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48403-02020iZZE12#..TH200201-200311

main48403-32010iNZE120,ZZE122..VN200103-200403

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09410iZZE12#..IDN,TH200105-200204

MARK 48530-02170 OR 48530-02171

main48530-09420iZZE12#..PHL200107-200401

MARK 48530-02180

main48530-09430iZZE12#..MA200401-200408

MARK 48530-02190

main48530-09440iZZE12#..TAIW200103-200310

MARK 48530-02200

main48530-09580iZZE122..IND200301-200311

MARK 48530-02330

main48530-09780iZZE12#..IDN,TH200204-200311

MARK 48530-02170

main48530-09B60iZZE12#..TAIW200310-200408

MARK 48530-02460

main48530-09B70iZZE122..IDN;ZZE121..ATM..16E..TH;ZZE12#..(16,18E)..TH200311-200408

MARK 48530-02430

main48530-09C10iZZE122..IND200311-200408

MARK 48530-02331

main48530-09D20iZZE12#..(16E,16J,18E,18G)..TH200311-200408

MARK 48530-02470

main48530-09G10iZZE12#..PHL,VN200408-200808

MARK 48530-02440

main48530-09G20iZZE12#..TAIW200408-200712

MARK 48530-02460

main48530-09G30iZZE12#..(16E,16J,18E,18G)..TH200408-200801

MARK 48530-02470

main48530-09G40iZZE122..IDN;ZZE121..ATM..16E..TH;ZZE12#..(16,18E)..TH200408-200801

MARK 48530-02430

main48530-09G50iZZE12#..MA200408-200801

MARK 48530-02450

main48530-09K00iZZE122..IND200408-200508

MARK 48530-02331

main48530-09K01iZZE122..IND200508-200808

MARK 48530-02332

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021×2iZZE12#..MA,PHL200103-200401

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90560-14028iZZE12#..MA,PHL200103-200401

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-09410iZZE12#..IDN,TH200105-200204

MARK 48530-02170 OR 48530-02171

main48530-09420iNZE120,ZZE122..VN200107-200403

MARK 48530-02180

main48530-09430iZZE12#..MA200107-200311

MARK 48530-02190

main48530-09440iZZE12#..TAIW200103-200310

MARK 48530-02200

main48530-09580iZZE122..IND200301-200311

MARK 48530-02330

main48530-09780iZZE12#..IDN,TH200204-200311

MARK 48530-02170

main48530-09B70iZZE122..IDN;ZZE121..ATM..16E..TH;ZZE12#..(16,18E)..TH200311-200408

MARK 48530-02430

main48530-09D20iZZE12#..(16E,16J,18E,18G)..TH200311-200408

MARK 48530-02470

main48530-09G10iZZE12#..PHL,VN200408-200808

MARK 48530-02440

main48530-09G20iZZE12#..TAIW200408-200712

MARK 48530-02460

main48530-09G30iZZE12#..(16E,16J,18E,18G)..TH200408-200801

MARK 48530-02470

main48530-09G40iZZE122..IDN;ZZE121..ATM..16E..TH;ZZE12#..(16,18E)..TH200408-200801

MARK 48530-02430

main48530-09G50iZZE12#..MA200408-200801

MARK 48530-02450

main48530-09K00iZZE122..IND200408-200508

MARK 48530-02331

main48530-09K01iZZE122..IND200508-200808

MARK 48530-02332

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90560-14028iZZE121..16E..TAIW200103-200211

48725FBUSH, REAR AXLE CARRIER, RH

main48725-02240iZZE12#..MA200205-200401

main48725-12560iZZE121..16E..TAIW200103-200211

main48725-12570iZZE121..(16E,16J)..TH200211-200311

main48725-12580iZZE12#..ATM..(16E,18E)..TH; ZZE121..MTM..(16E,16J)..TH;ZZE12#..ATM..(16J,18G)..TH200311-200801

SINGAPORE SPEC

48725GBUSH, REAR AXLE CARRIER, LH

main48725-02240iZZE122..IDN,MA;ZZE12#..RHD..ATM..(16E,18E)200311-200801

main48725-12560iZZE12#..RHD..(16E,16J,18E,18G,18J)200103-200205

main48725-12570iZZE12#..PHL200103-200401

main48725-12580iZZE12#..ATM..(16E,18E)..TH; ZZE121..MTM..(16E,16J)..TH;ZZE12#..ATM..(16J,18G)..TH200311-200801

SINGAPORE SPEC

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-02020iZZE121..ATM..MA;ZZE122..IND,MA,VN200311

main48750-02030iZZE12#..(16J,18E,18G)..TAIW200103-200310

48755SUPPORT, REAR SUSPENSION

main48755-02020×2iZZE122..IND200301-200508

main48755-02030×2iZZE121..16E..TAIW200103-200211

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-02020iZZE12#..MA,PHL200105-200401

main48750-02030iZZE12#..TAIW200310-200712

48812BAR, STABILIZER, REAR

main48812-02100iNZE120,ZZE12#..IDN,MA,PHL,TH,VN200105-200304

main48812-02101iZZE12#..ATM..(16E,18E)..TH; ZZE121..16;ZZE122..IDN200311-200801

SINGAPORE SPEC

main48812-02110iZZE121..16E..TAIW200103-200211

main48812-02111iZZE122..TAIW200310-200712

main48812-02160iZZE122..IND200508

main48812-02220iZZE12#..(16E,16J,18E,18G)..TH200311-200412

main48812-12410iZZE12#..(16E,16J,18E,18G)..TH200501-200801

48817UBOLT(FOR REAR STABILIZER)

main90105-14138×2iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

48830ANUT(FOR REAR STABILIZER LINK)

main90178-T0027×2iZZE12#..(16E,16J,18E,18G)..TH200311-200801

(L)

main90179-14062×2iZZE122..TAIW200103-200310

9010510361

main90105-10361

9011912357

main90119-12357

9017810014

main90178-10014

9017812009

main90178-12009

9017812010

main90178-12010

9017814004

main90178-14004

9017912078

main90179-12078

29 parts on this diagram · 1 diagram in section
